Technical description

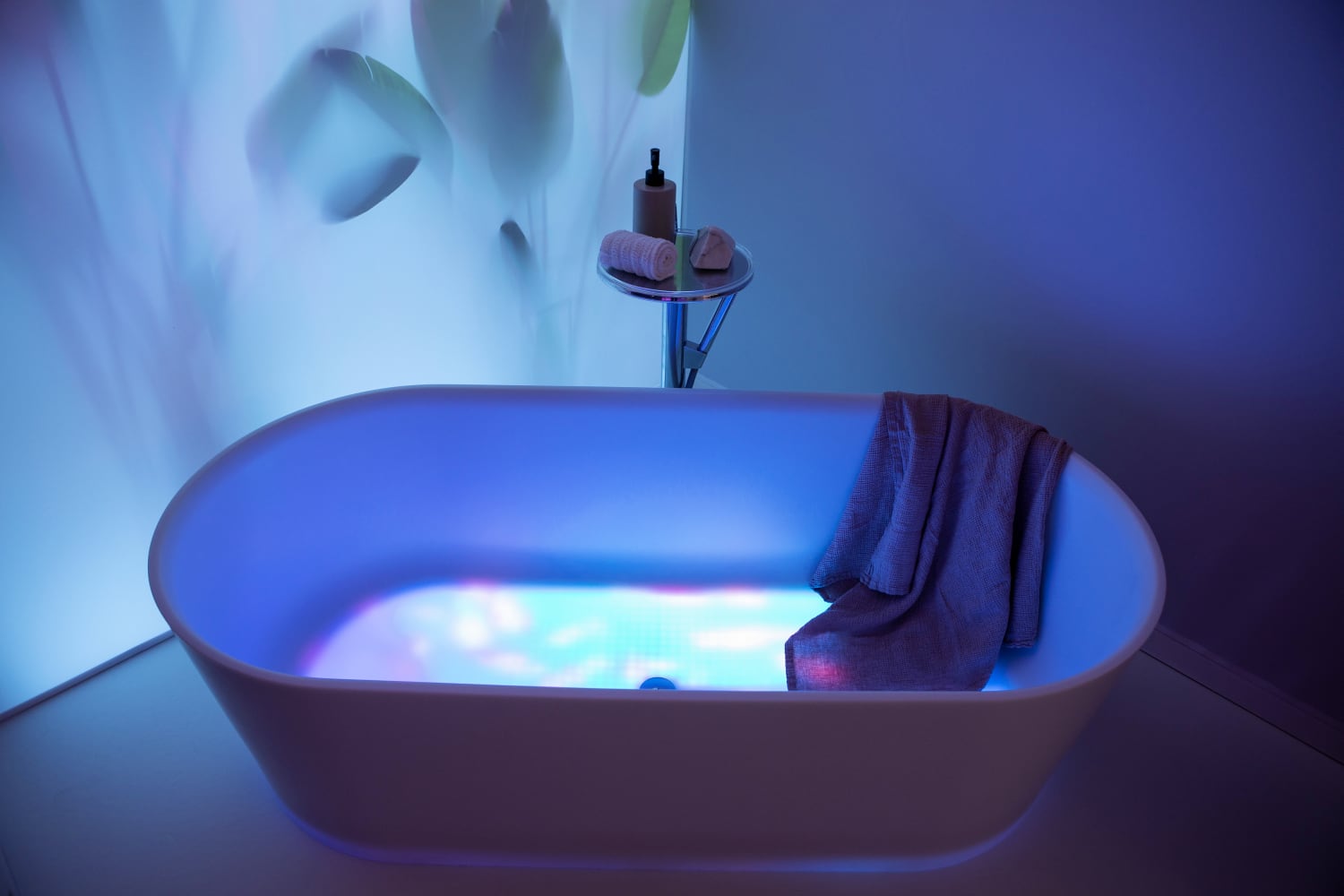

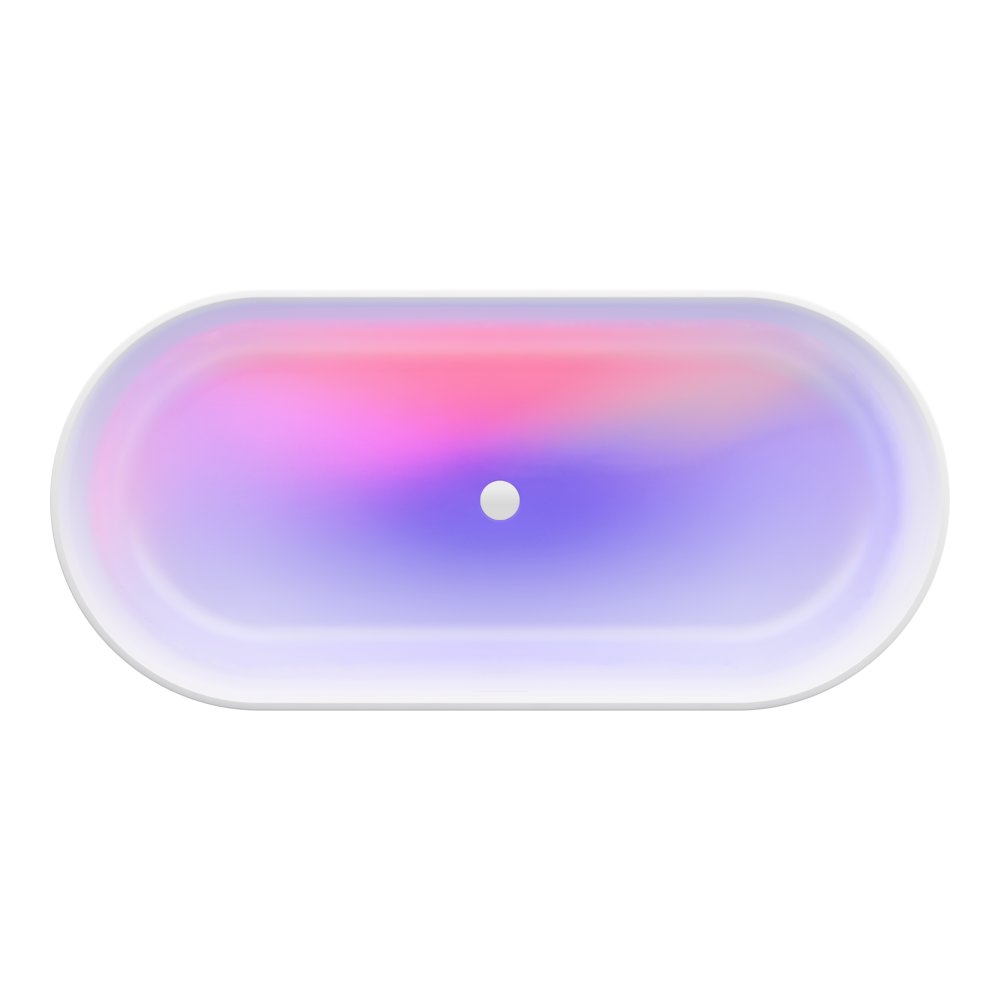

Freestanding bathtub made of Luminex, with integrated LED Panel, without overflow slot, incl. click-clack waste with integrated,
overflow function and white matt cover, with integrated LED panel under the tub floor, LED panel replaceable, option 617 – bathtub with LED panel, without whirl system
Functions for lighting management: Lighting scenarios can be set via remote control (on-off/scenario selection/dimming), 9 lighting programs, each with 3 lighting scenarios, can be selected via the remote control
Installation requirement: Cut-out in the floor is needed for housing the siphon. An empty pipe for the connecting cable must
be provided on site.
Mounting accesories included
Remote control, with 3 AAA batteries and wall holder, black, order no. H292282
LED panel, order no. H292281
Power supply unit (mounted outside the bathtub)
Connection cable for LED panel, length 10 m with 2x2,5 mm2
Click-clack waste with integrated overflow function and siphon cover with valve plate in white matt, order no. H292283
Flex-pipe 1m, order no. H294439
External finish:
White matt outside / whte matt inside
Inside length at the bottom (mm):
1285
Inside width at the bottom (mm):
400
Installation type:
Freestanding
Material:
Sentec
Net weight (kg):
115
Option:
bathtub with LED panel (placed under the bathtub)
Shape:
Oval
Waste diameter (mm):
52
Water capacity to overflow (l):
275
Download the CAD (2D, 3D) files of this product in different formats. | ⚠ Caution: CAD files should not be used for computer-controlled (CNC) cutting of countertops or similar and are for space-planning & room rendering purposes only. Upon request cut-out templates are available from LAUFEN. All drawings contain the necessary measurements (mm) which are subject to standard tolerances. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished product.
MATERIAL
Bathing in a bathtub made of solid surface material Sentec feels like being in a natural basin. Due to a high percentage of mineral particles, the surface feels smooth. The innovative material also allows an incredible freedom of design: almost every shape is feasible – from very organic to very straight and architectural. Furthermore the non-porous surface of the material is hygienic, durable, UV-resistant, highly resistant to scratches a and can be effortlessly cleaned.
