Technical description

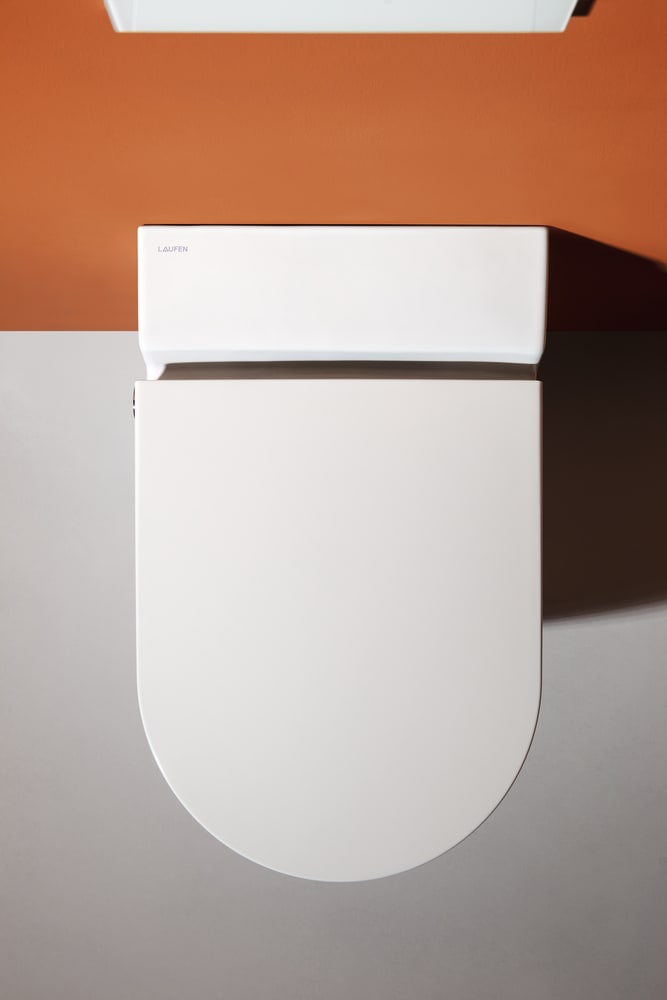

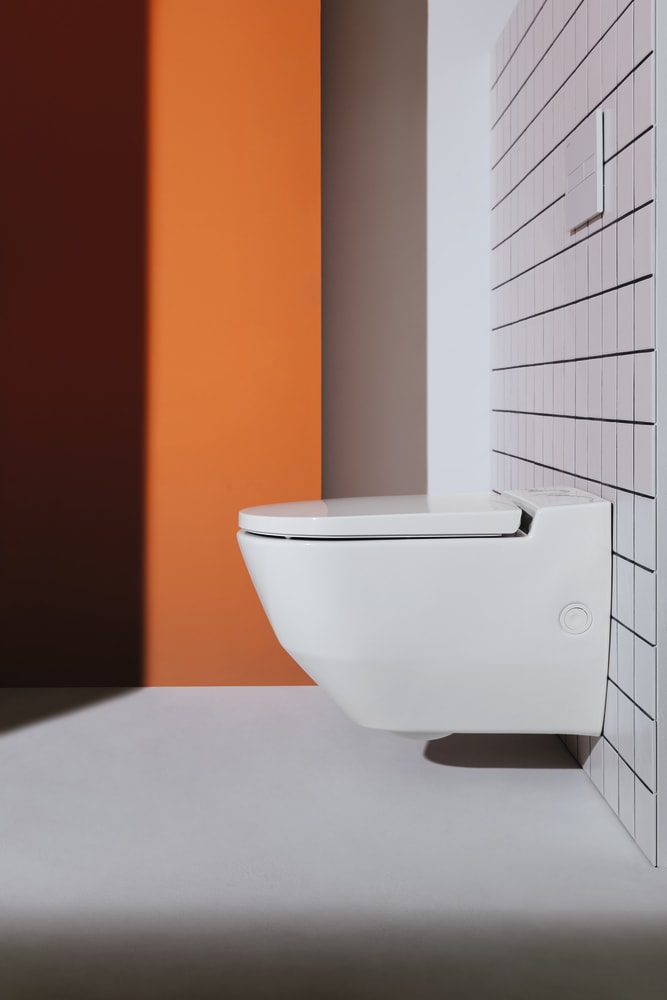

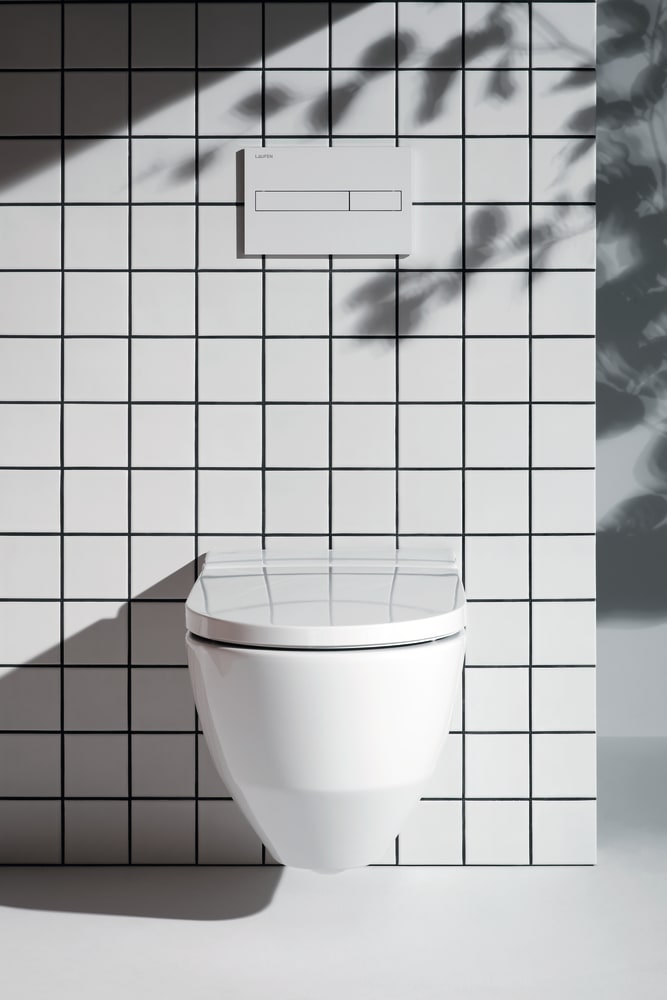

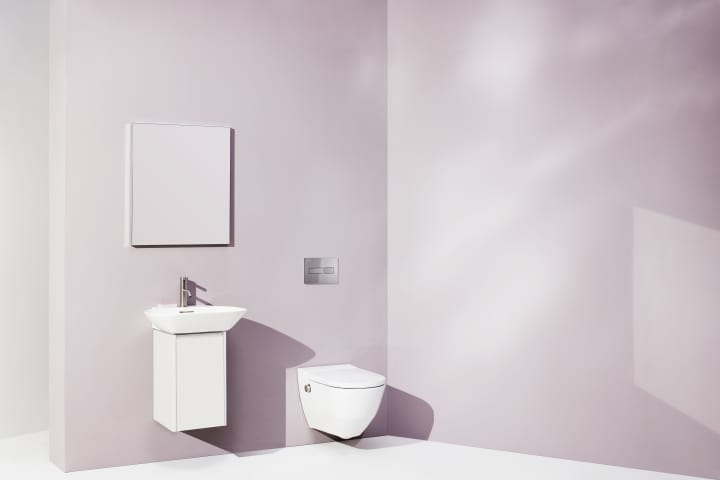

Shower toilet, rimless, wall-hung, washdown Laufen CLEANET NAVIA
toilet pan sanitary ceramic, with ceramic surface refinement LCC (only
white)
WC seat and cover Duroplast, removable, with lowering system
CE, IPX4, EN 13077, SVGW, Drinking water standards EN 1717
min. 4.5/3-l-flush, dimensions 370 x 580 x 380 mm, concealed fixation

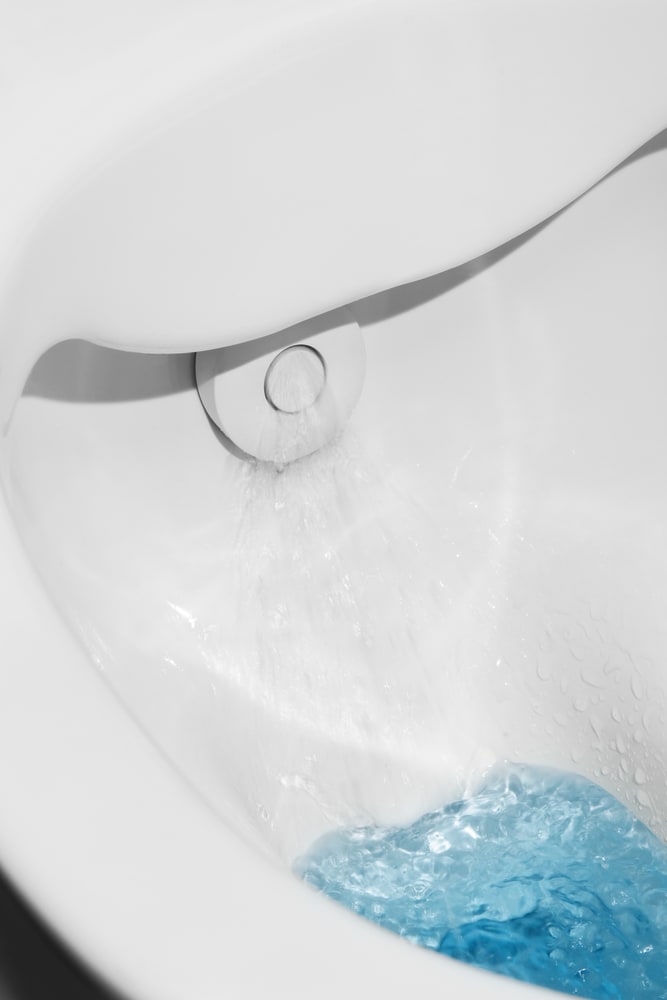

Special feature: Rear shower and lady shower, with adjustable water

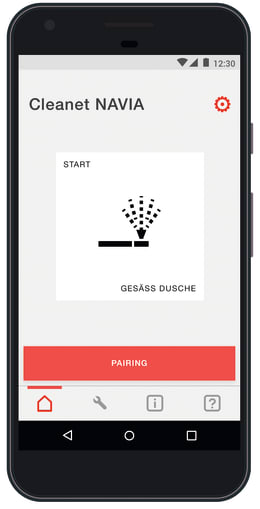

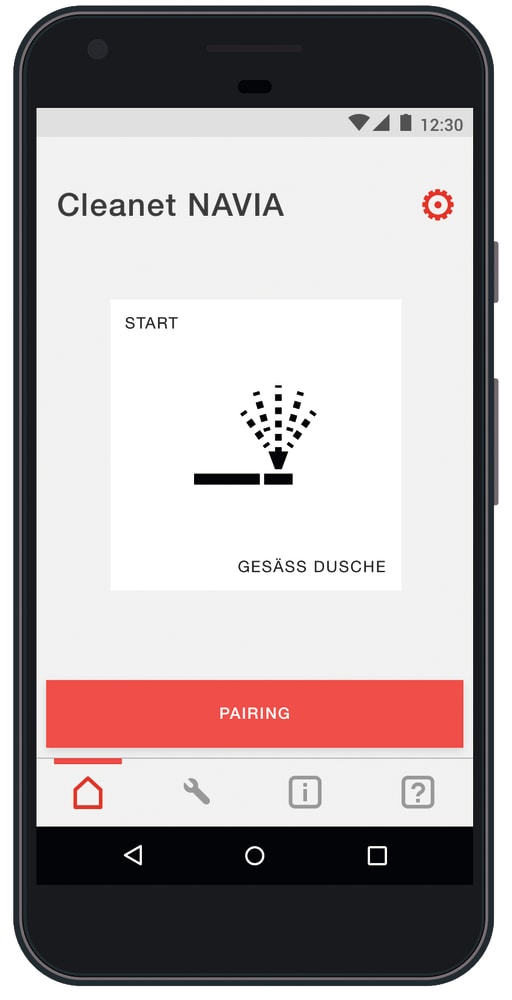

pressure and position, temperature adjustable via mobile app (iOS/

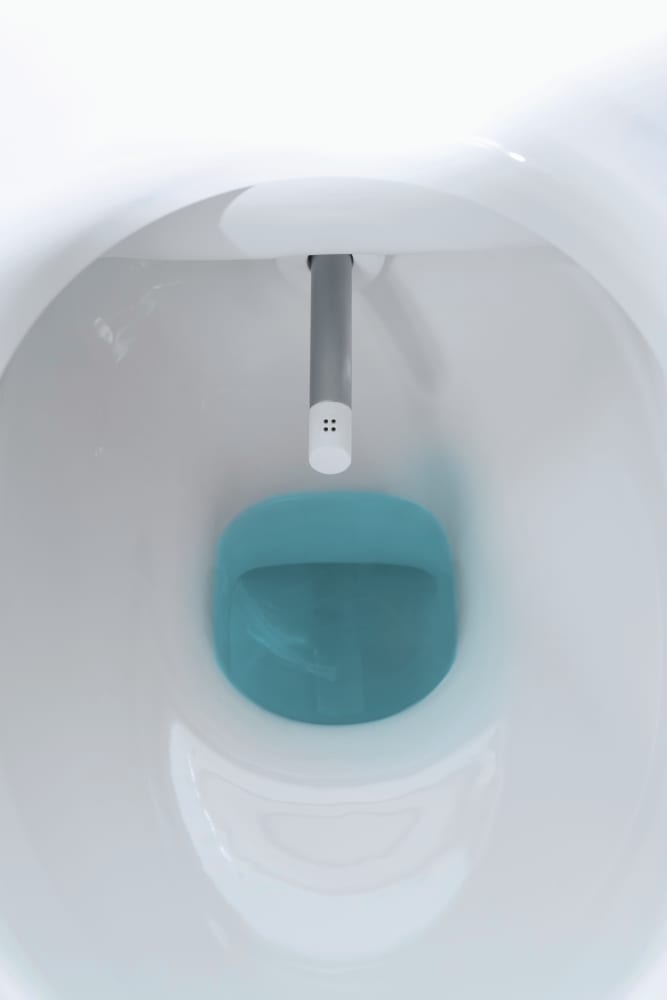

Android), oscillation function, integrated self cleaning shower head
before and after every use, LED signal light, concealed water supply
and power supply
Mounting accesories included
Inlet and outlet pipes, fastening kit M12 with connection plate, incl. mounting tool, sound insulation set (DIN 4109) and water connection set for shower toilet

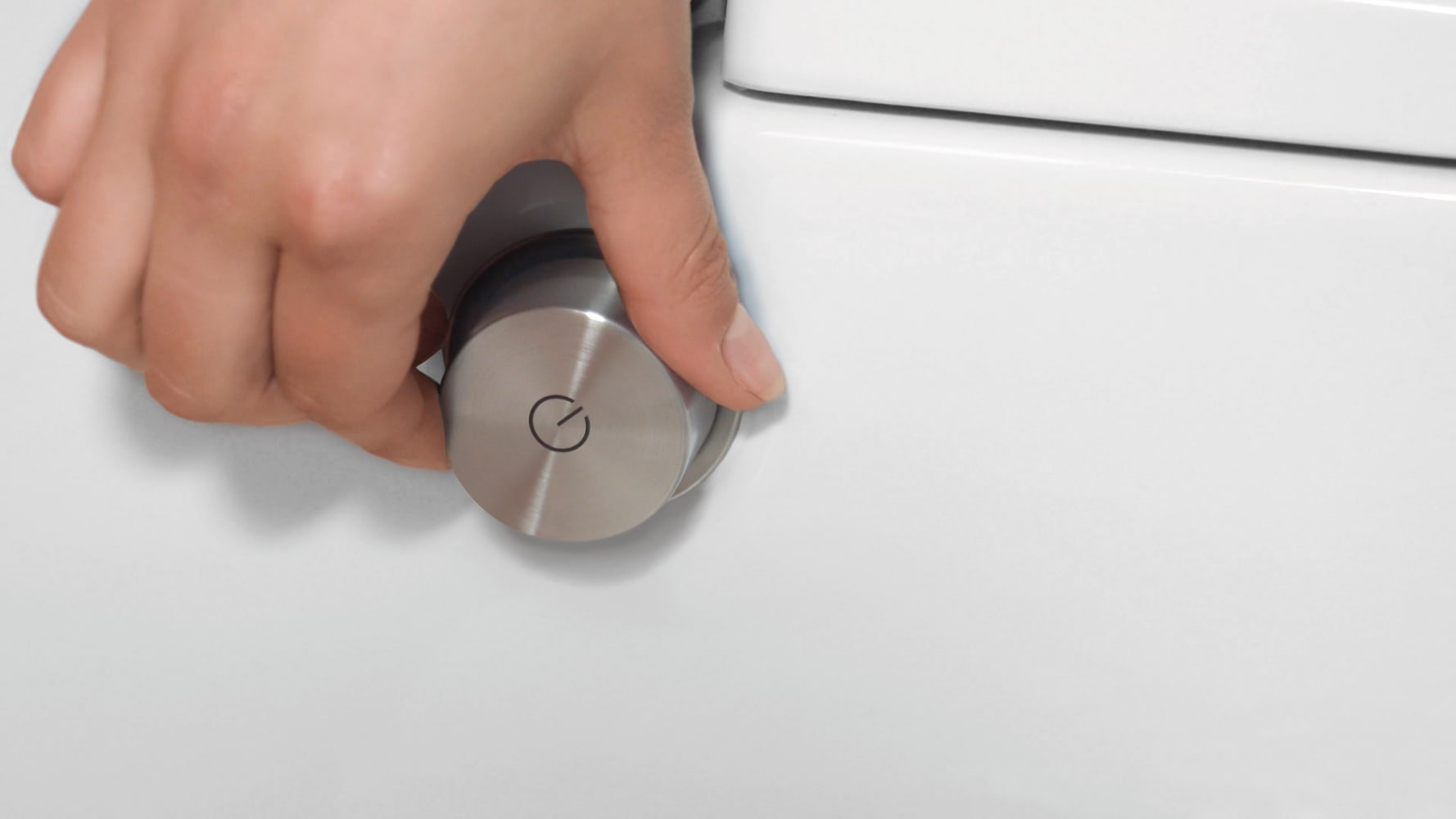

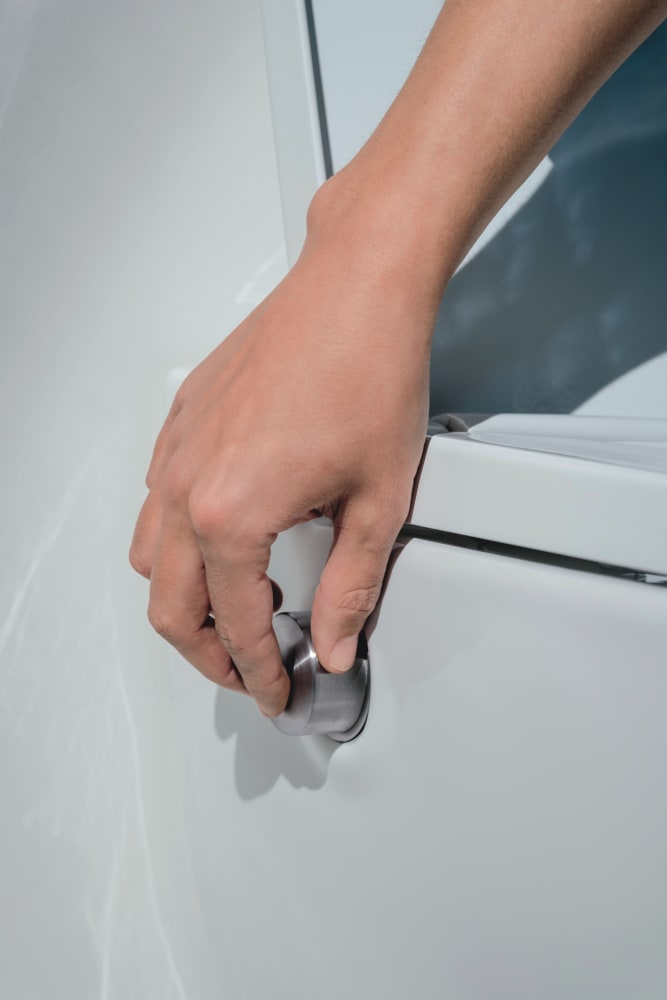

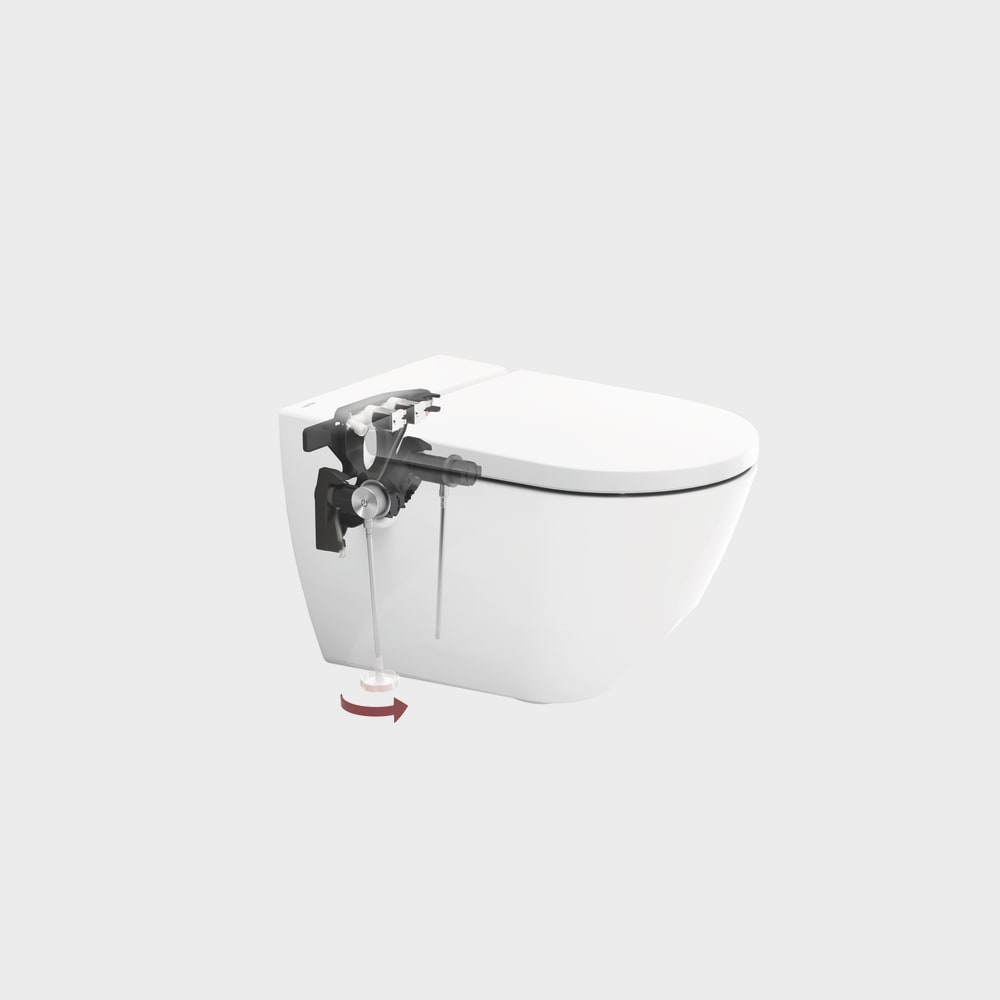

Rotary button for shower function
Mounting accesories excluded
External cable routing, order no. H895603
Stone screw fastening kit M12
Air dryer temperature levels:
OFF
Cleaning function
Control panel:
Fixed
Elbow included
Fixing kit:
Included
Flushing system:
Washdown
Flushing type:
Single flush 6 litres
Installation type:
Wall-hung
Net weight (kg):
33
Nozzle positions:
7
Number of nozzles:
1
Option:
standard option
Outlet type:
Horizontal
Power Supply (Hz):
50
Power Supply (V):
220
Power Wattage (Watts):
1150
Protection class (IPX4)
Removable nozzle

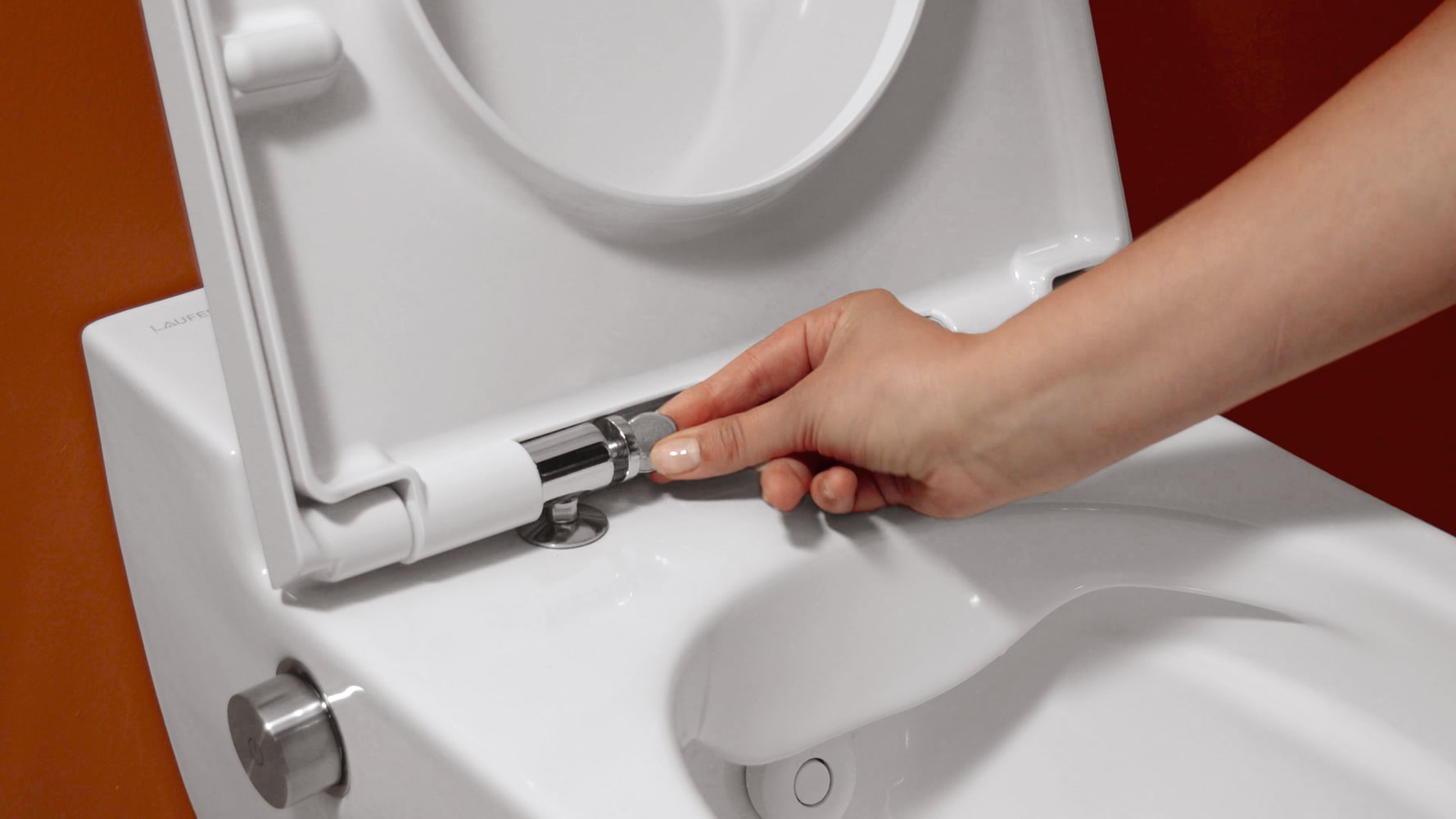

Removable seat and cover
Rim type:
Rimless

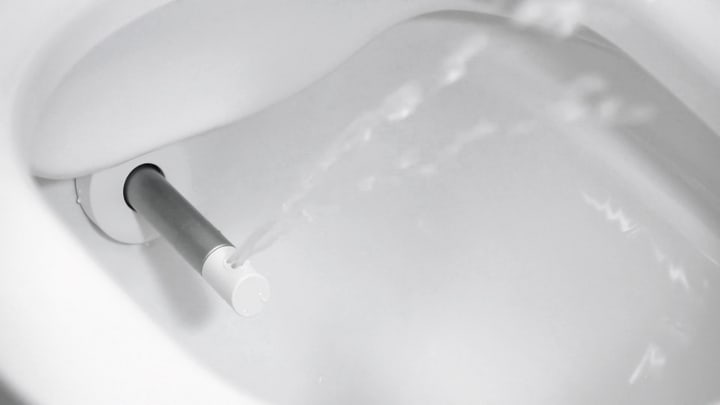

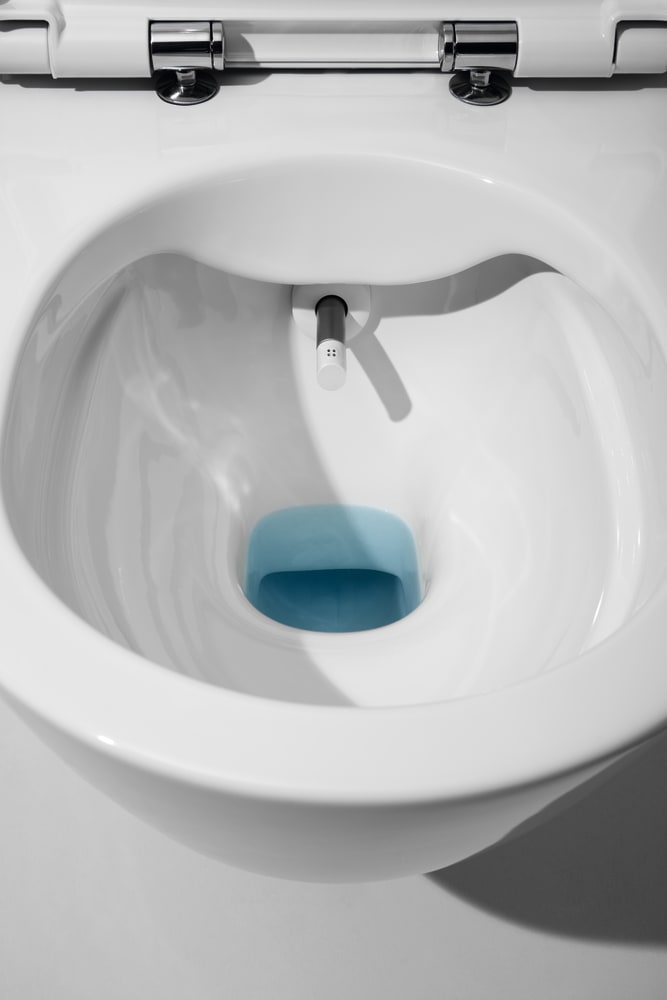

Self-cleaning nozzle
Shape:
Round
Smart Toilet type:
In-Wash ®
Soft close system
Water cleaning
Water intensity control
Water temperature control
Weight (Kg):
33
Rear cleaning
Front cleaning
Oscillating cleaning
Nozzle position adjustment
TECHNOLOGY

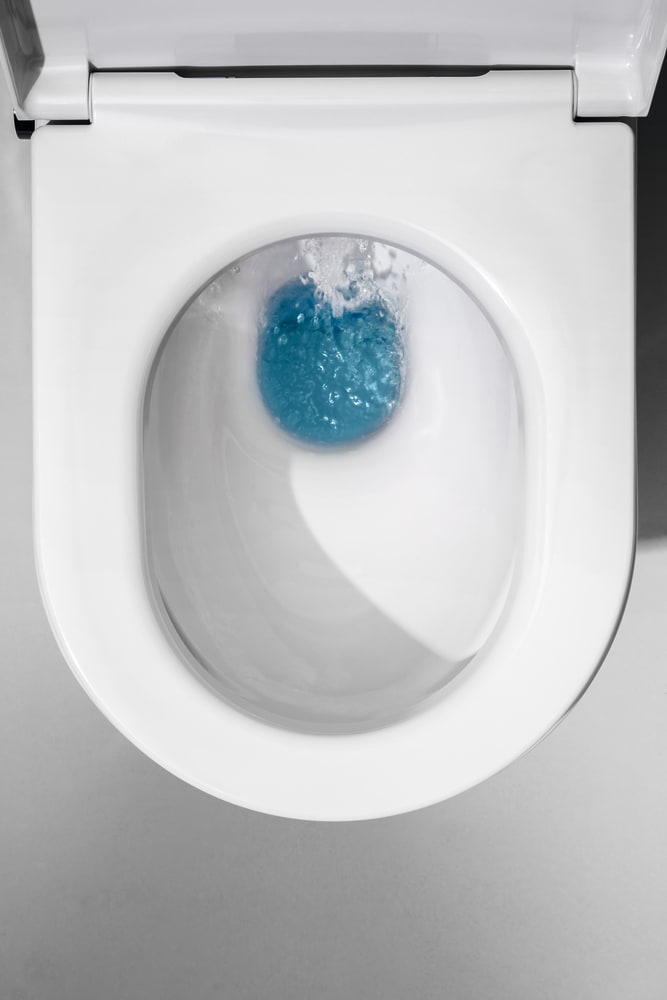

Most of the bowls of the new LAUFEN WCs are rimless. There’s no longer anywhere for dirt and deposits to hide; instead, thanks to an innovative and powerful flushing system, everything’s flushed cleanly away with both the 6/3-litre version and the 4.5/3 litre version. Both public toilets and private bathrooms can benefit from the easy cleaning and great hygiene of this system.
Compatible products
CLEANET NAVIA
Focused on the essentials with no compromises in the sphere of hygiene – CLEANET NAVIA is the quintessential shower toilet. A well thought-out operating concept, the focus on core functions, and its timeless design make it the ideal introduction to the world of integrated shower toilets. Simple yet with a wide spectrum, from thorough and gentle bodily hygiene to effective cleaning – CLEANET NAVIA is an integral component of everyday life.
