Technical description

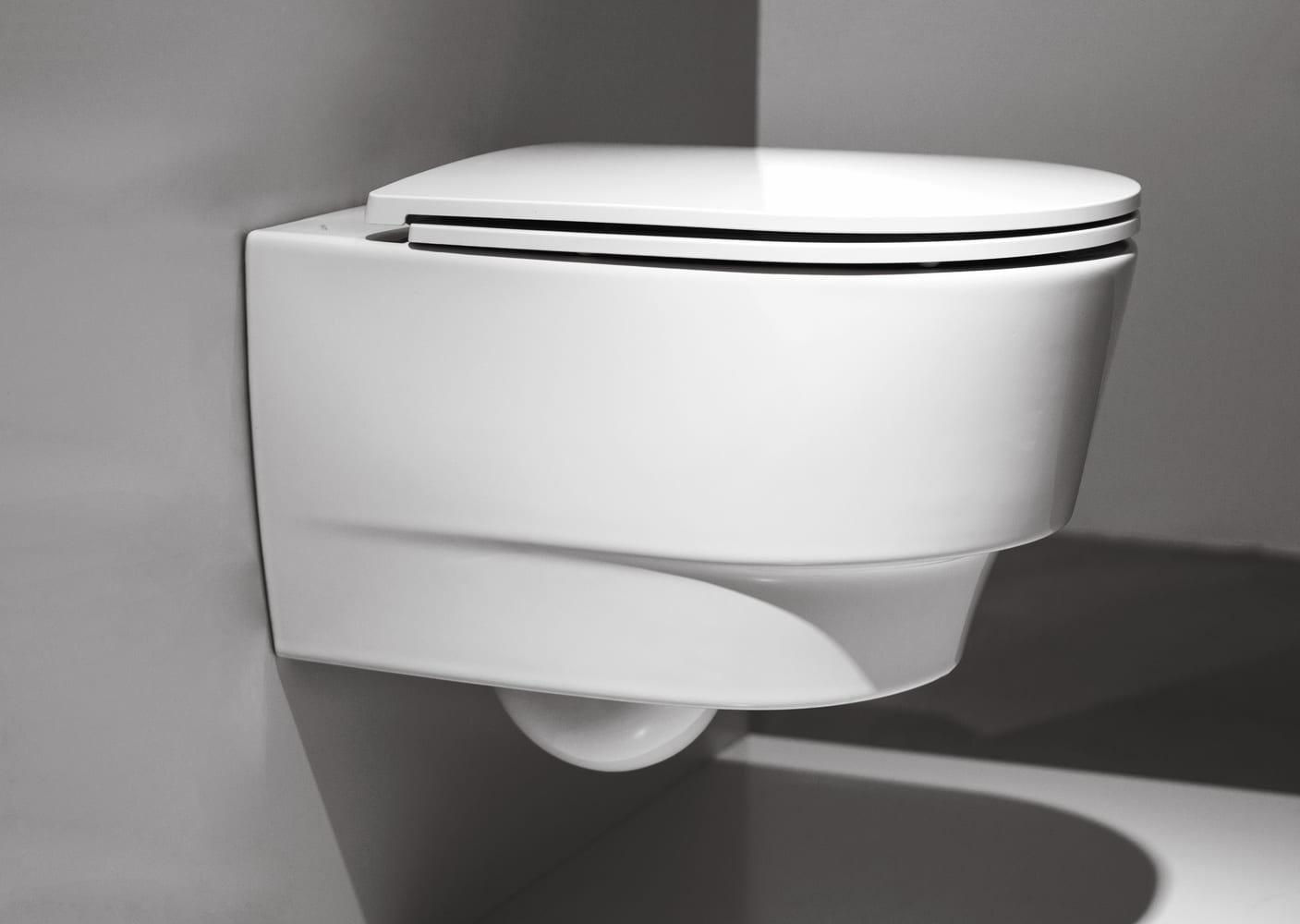

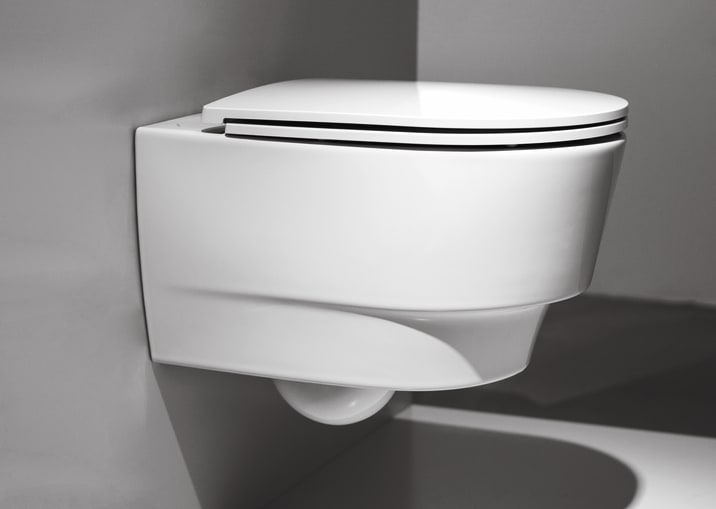

Wall-hung separation toilet rimless, washdown LAUFEN SAVE!,
sanitary ceramic, for concealed frame with cistern for separation toilet
(installation in conjunction with Laufen installation system CW12 is
required for the water drains)
EN 977, 4,5/3-l-flush (4/2,5-l-flush)
dimensions 365 x 530 x 380 mm
concealed trap, concealed fixation

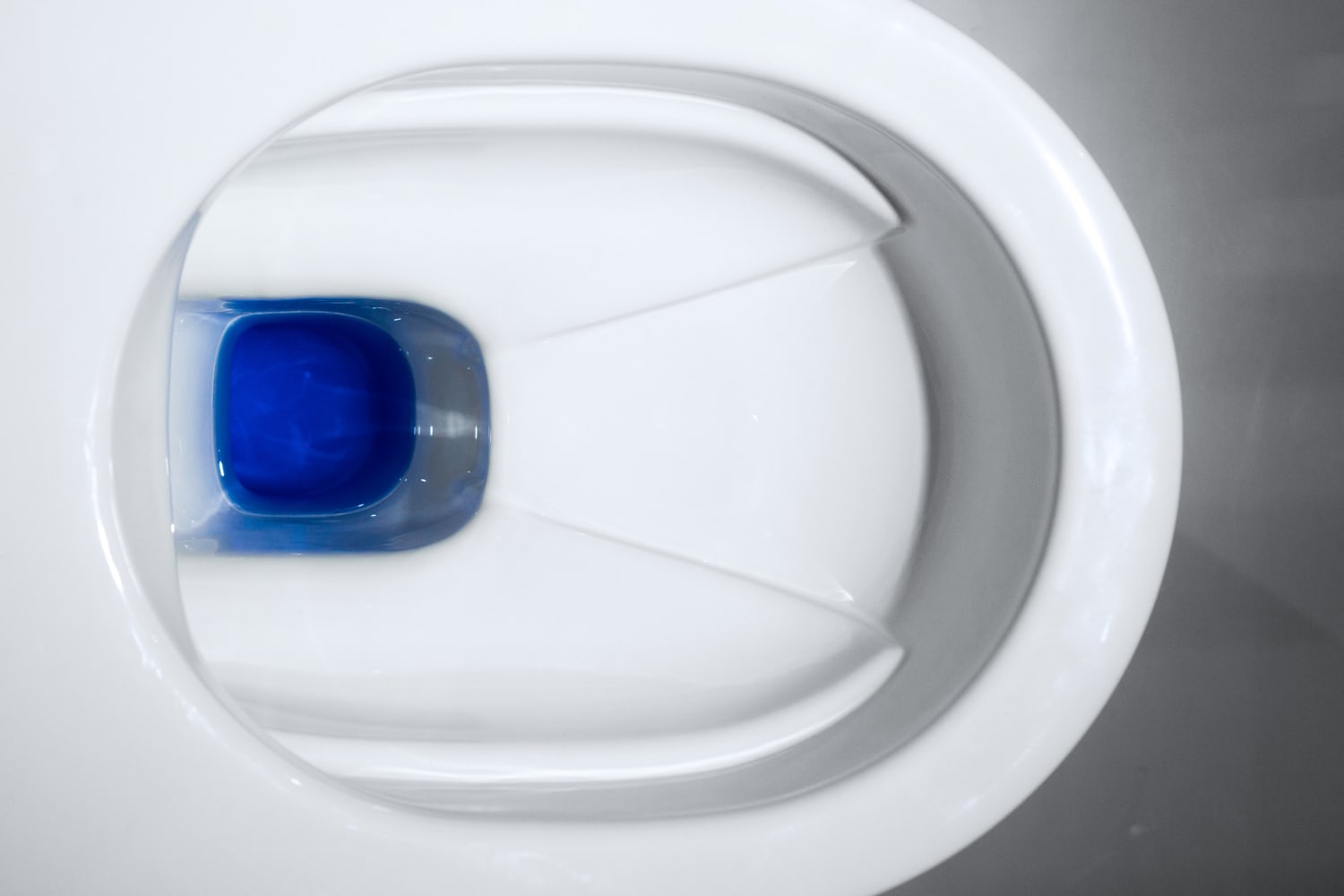

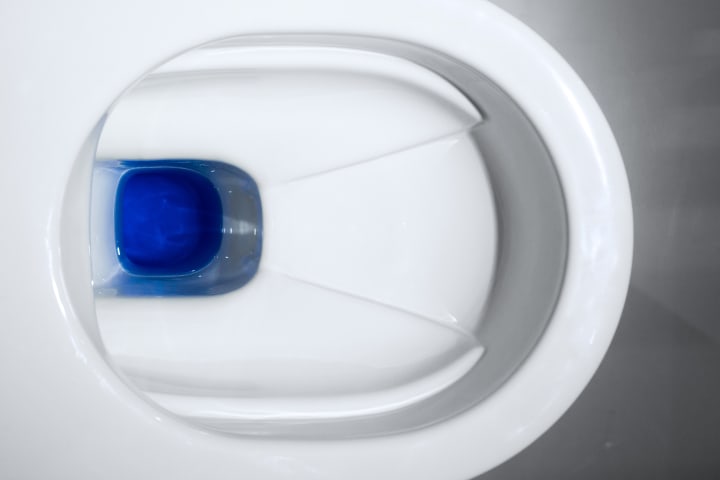

Special feature: hygienic wastewater separation, rimless, concealed
surfaces directing water are fully glazed throughout, vacuum checked
Further options / accessories: Surface refinement LCC (only white),
Laufen installation system CW12 for separation toilet, order no. H920090,
WC seat and cover, H893955, H896950, H898965, WC seat and cover with
automatic lowering H891601, H893959, H896951, H898966
Mounting accesories included
Urine siphon DN 32, sleeve DN 40, left or right, order no. H898669
Laufen EasyFit 2.0 system M12, order no. H893820
Mounting accesories excluded
Laufen installation system CW12, with cistern for wallhung separation toilet, order no. H920090
Antinoise set, order no. H892695
Stone screw fastening kit M12
Average water consumption (L.):
3.25
Back-to-wall
Fixing kit:
Included
Flushing system:
Washdown
Installation type:
Wall-hung
Net weight (kg):
22.8
Option:
standard option
Outlet type:
Horizontal
Rim type:
Rimless
Shape:
Round
Sustainable product
Unified Water Label
3.25 l
TECHNOLOGY
Most of the bowls of the new LAUFEN WCs are rimless. There’s no longer anywhere for dirt and deposits to hide; instead, thanks to an innovative and powerful flushing system, everything’s flushed cleanly away with both the 6/3-litre version and the 4.5/3 litre version. Both public toilets and private bathrooms can benefit from the easy cleaning and great hygiene of this system.
Compatible products
WC seat and cover, removable, with lowering system, stainless steel hinges
Article-No.: H8969513000001
450 x 380 x 55
Installation set for wall-hung WCs and bidets, EasyFit 2.0, 278 mm
Article-No.: H8938200000001
330 x 205 x 40
Similar products
Wall-hung WC Silent flush/'rimless', washdown, advanced, without flushing rim, EasyFit 3.0 fixation
Article-No.: H8211100000001
540 x 360 x 355
Wall-hung WC Silent Flush/'rimless', washdown, without flushing rim, compact, EasyFit 3.0 fixation
Article-No.: H8211130000001
360 x 490 x 355
Combipack wall-hung WC H821331, Silent flush/'rimless', washdown, without flushing rim, incl. seat and cover with lowering system
Article-No.: H8663310000001
545 x 370 x 340
Wall-hung WC Silent flush, washdown, without flushing rim
Article-No.: H8213310000001
545 x 370 x 350
SAVE!
SAVE! is the first gravity flushed urine-diverting toilet to meet the latest industry standards of conventional toilets. Rimless and wallmounted,save! means having to compromise neither on comfort, nor on hygiene.
