Technical description

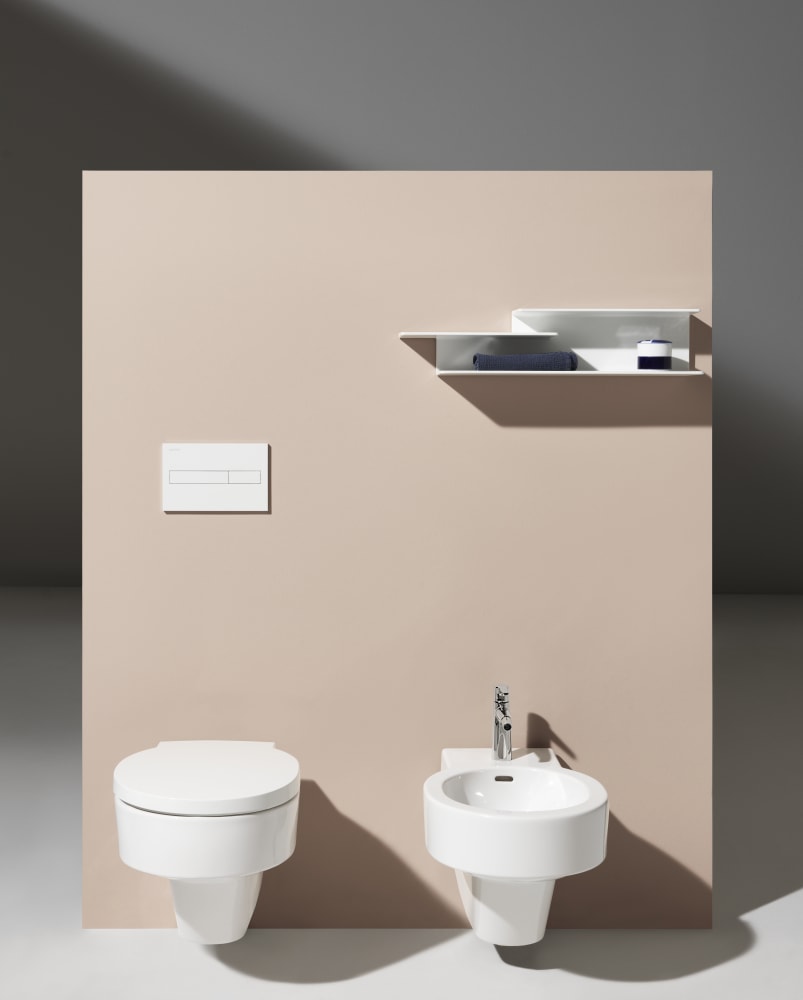

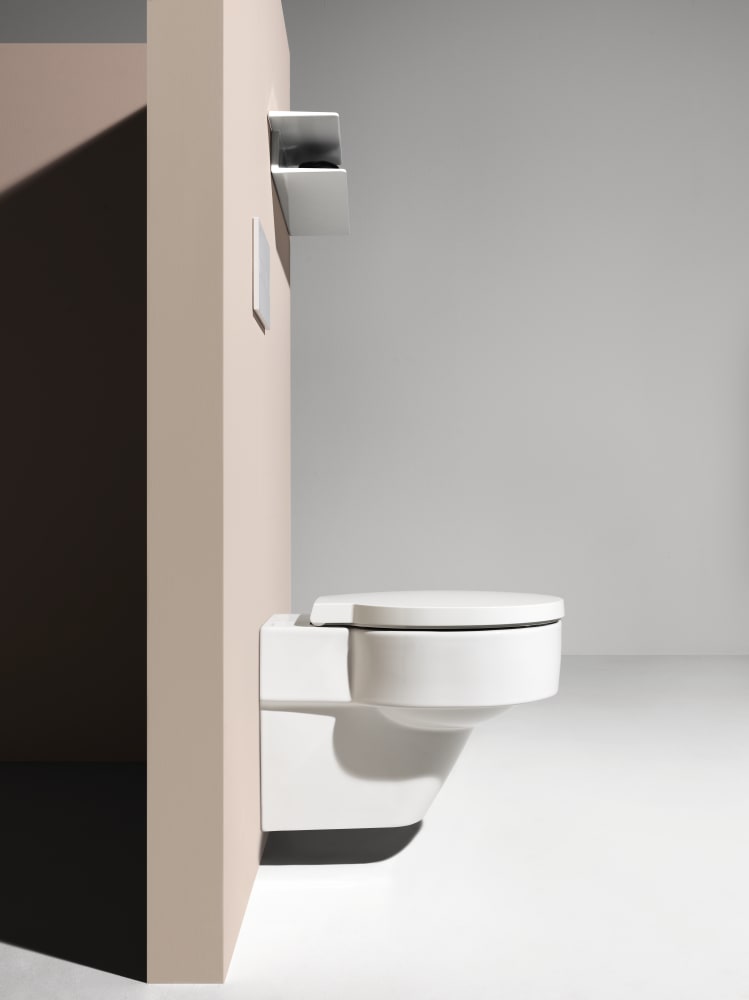

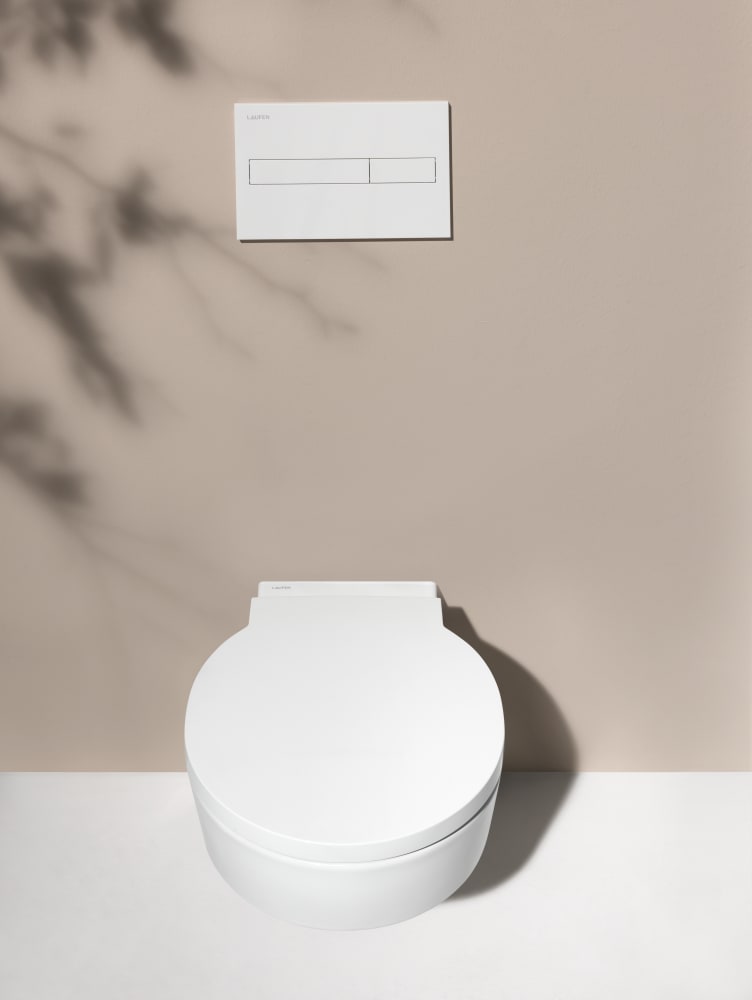

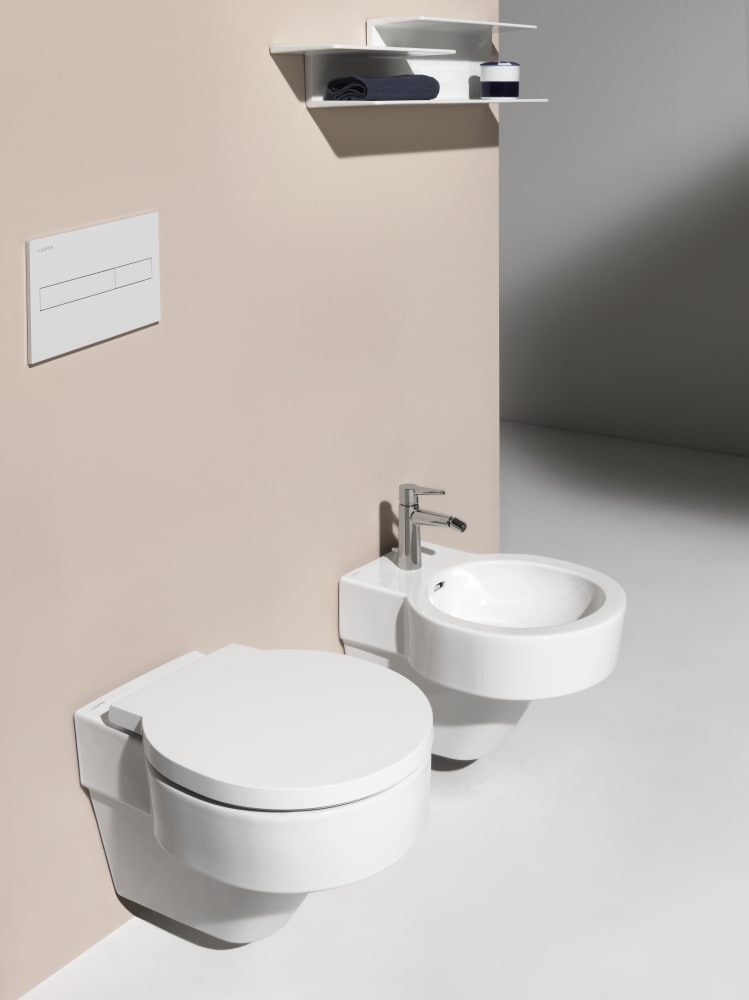

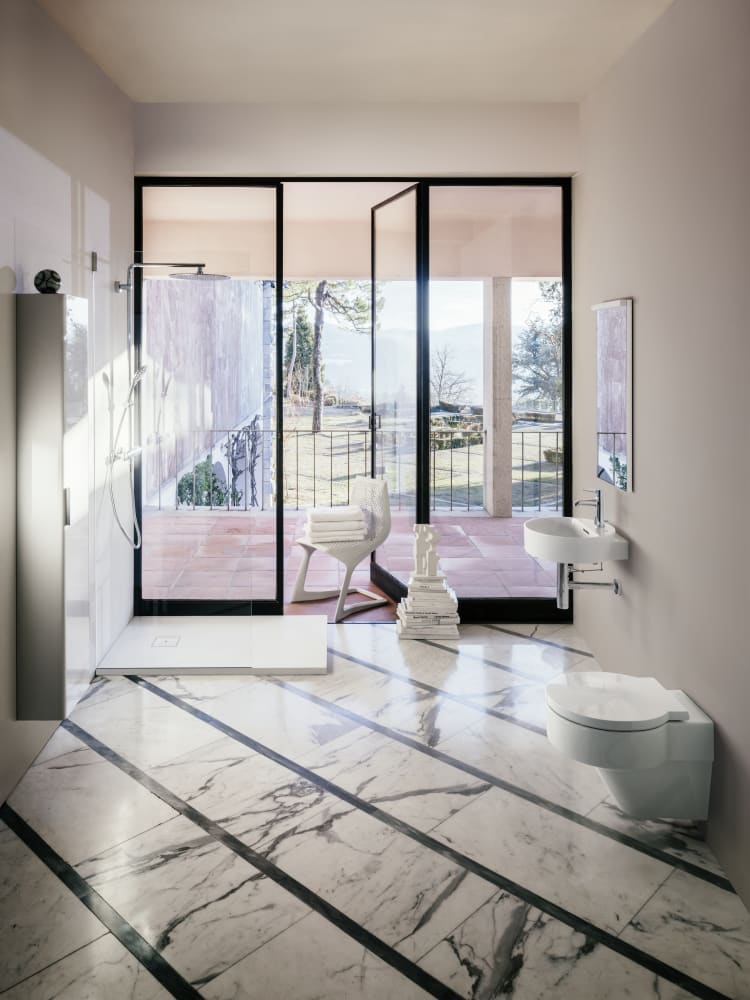

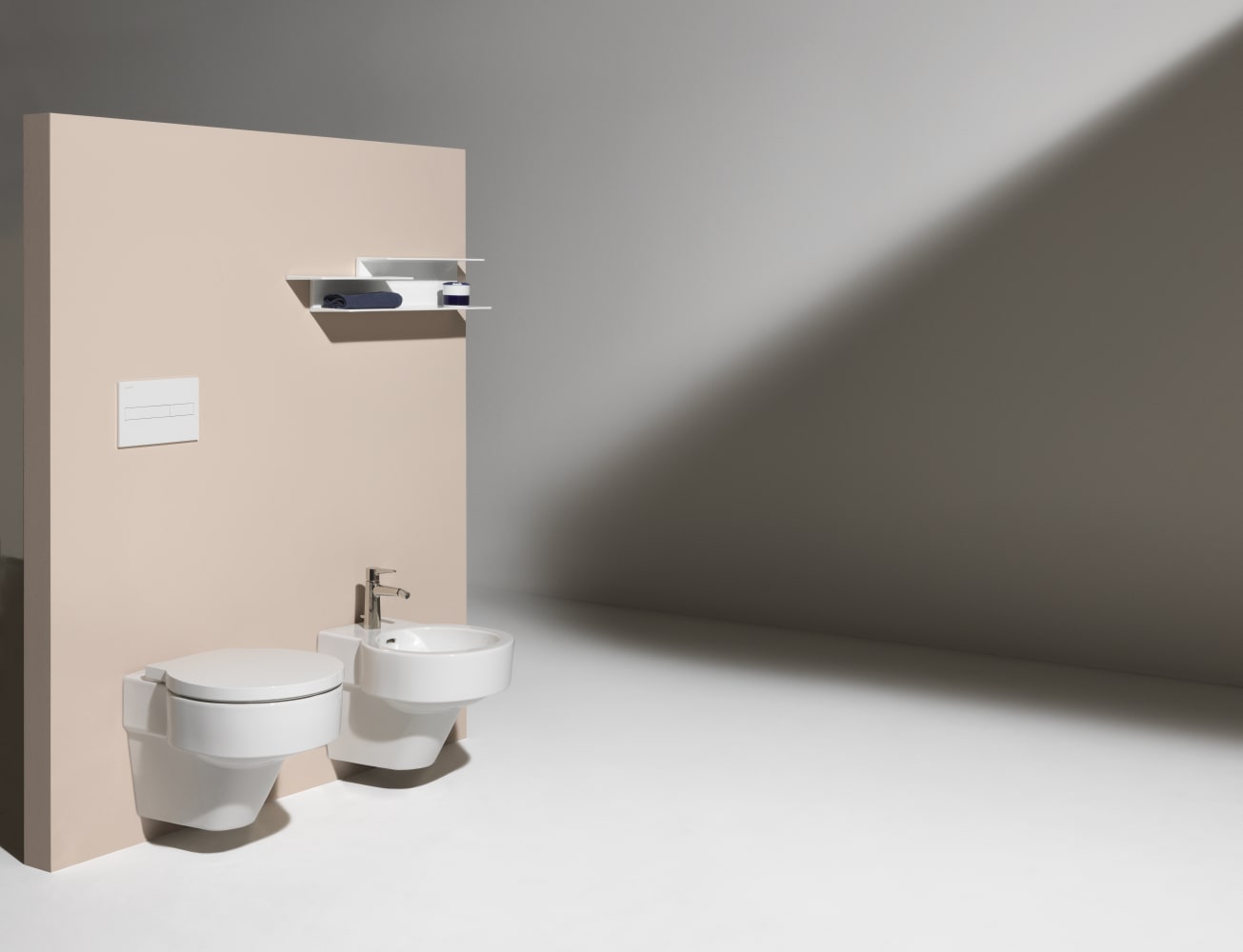

Wall-hung WC rimless washdown Laufen-VAL, sanitary ceramic for concealed cistern, EN 997, EN 33, min. 4,5/3-l-flush, dimensions 390 x 530 x 340 mm, concealed trap, concealed fixation.

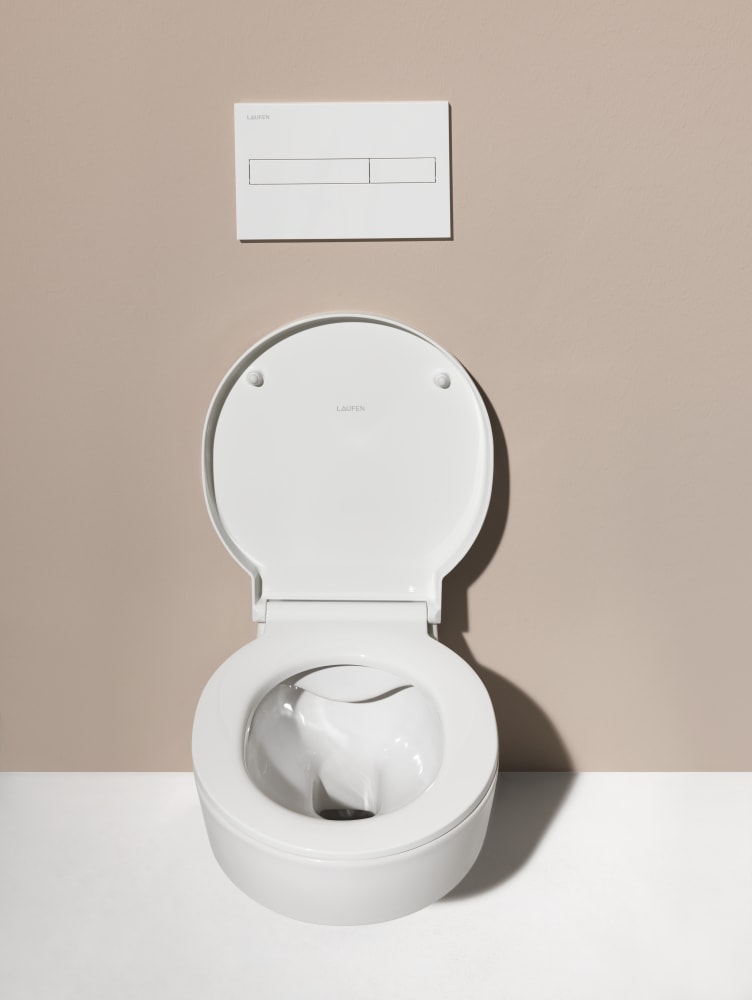

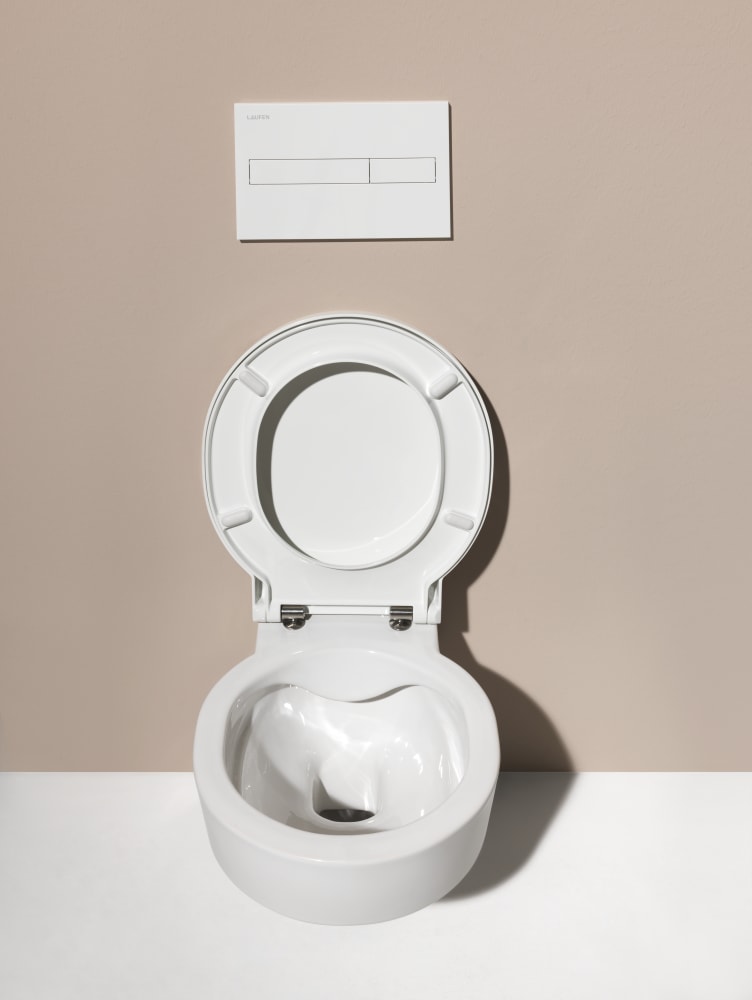

Special feature: rimless, concealed surfaces directing water are fully glazed throughout, vacuum checked.
Further options / accessories: Surface refinement LCC (only white), WC seat and cover with automatic lowering H894281
Mounting accesories included
Laufen EasyFit 2.0 system M12, order no. H893820
Mounting accesories excluded
Antinoise set, order no. H892695
Stone screw fastening kit M12
Average water consumption (L.):
3.38
Fixing kit:
EasyFit 2.0 included
Flushing system:
Washdown
Installation type:
Wall-hung
Net weight (kg):
19.5
Option:
standard option
Outlet type:
Horizontal
Rim type:
Rimless
Shape:
Round
Style:
Minimal
Water Inlet System:
Back Inlet
Unified Water Label
3.38 l
TECHNOLOGY
Most of the bowls of the new LAUFEN WCs are rimless. There’s no longer anywhere for dirt and deposits to hide; instead, thanks to an innovative and powerful flushing system, everything’s flushed cleanly away with both the 6/3-litre version and the 4.5/3 litre version. Both public toilets and private bathrooms can benefit from the easy cleaning and great hygiene of this system.
Compatible products
Installation set for wall-hung WCs and bidets, EasyFit 2.0, 278 mm
Article-No.: H8938200000001
330 x 205 x 40
Similar products
Wall-hung WC Silent flush/'rimless', washdown, advanced, without flushing rim, EasyFit 3.0 fixation
Article-No.: H8211100000001
540 x 360 x 355
Wall-hung WC Silent Flush/'rimless', washdown, without flushing rim, compact, EasyFit 3.0 fixation
Article-No.: H8211130000001
360 x 490 x 355
Combipack wall-hung WC H821331, Silent flush/'rimless', washdown, without flushing rim, incl. seat and cover with lowering system
Article-No.: H8663310000001
545 x 370 x 340
Wall-hung WC Silent flush, washdown, without flushing rim
Article-No.: H8213310000001
545 x 370 x 350
VAL

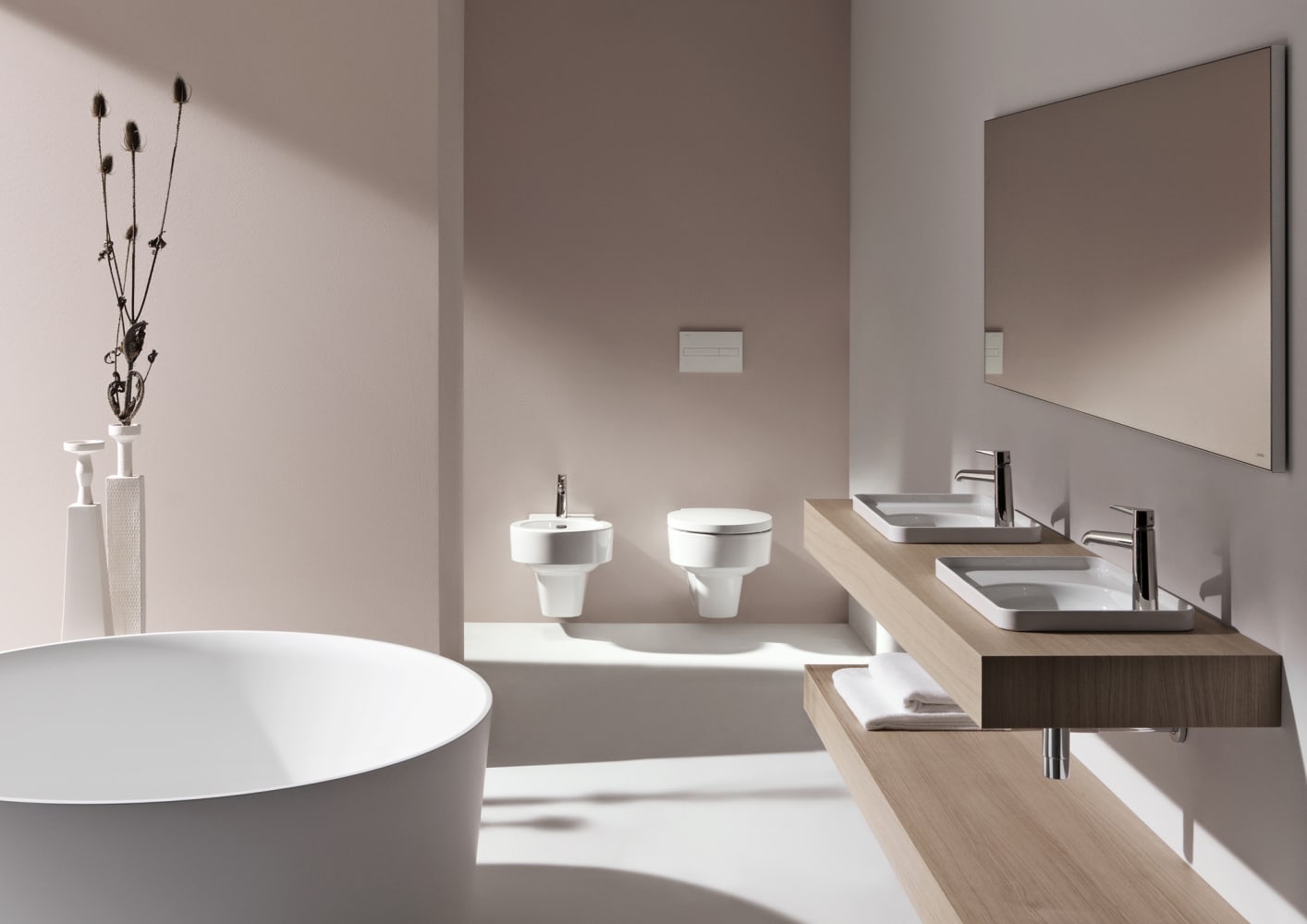

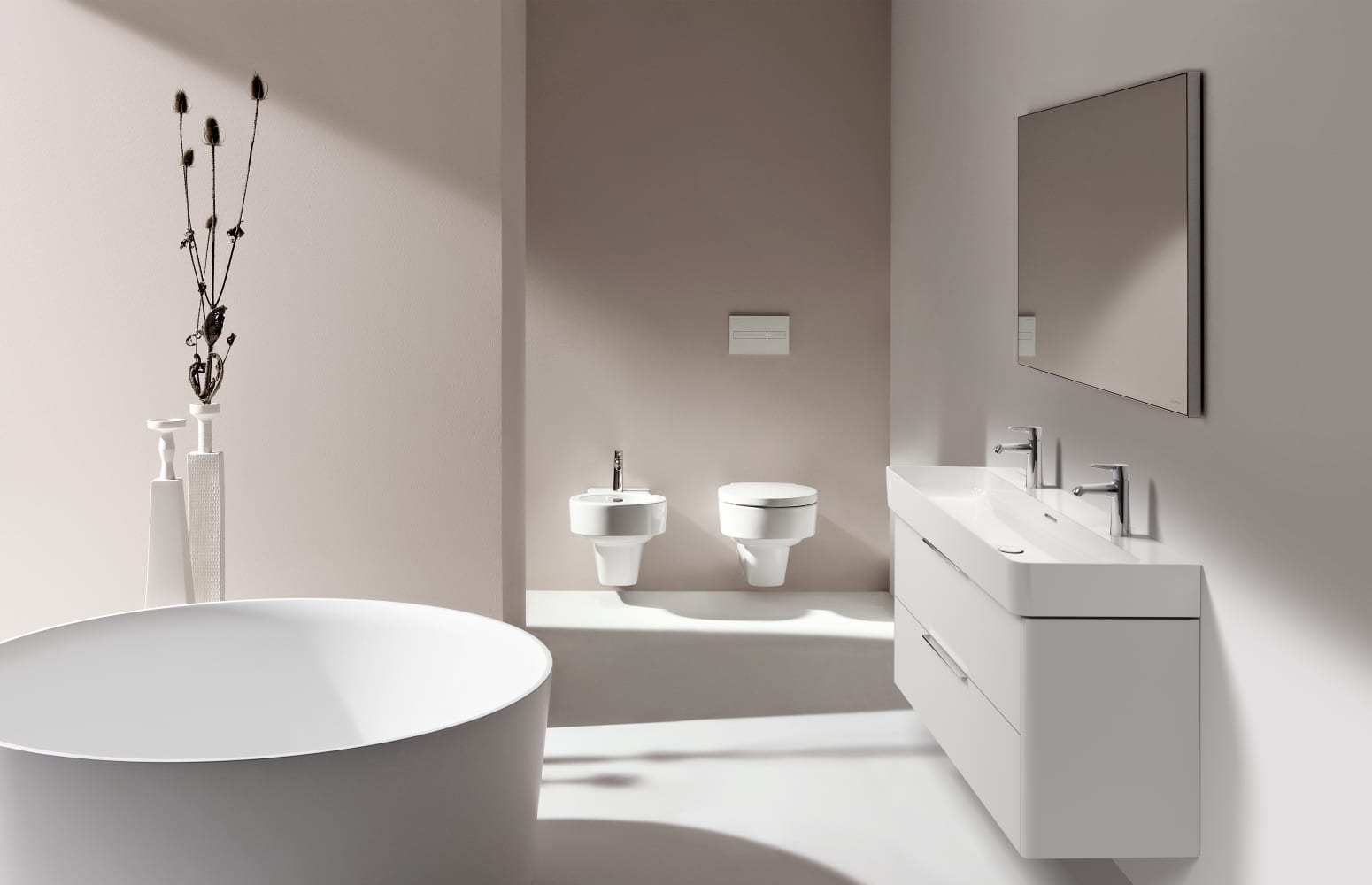

Simple architectural lines, extremely narrow edges and finely textured surfaces make the washbasins of VAL by Konstantin Grcic globally unique. Forms and textures not previously possible in sanitary ceramics are realised in an exciting collection which includes washbasins, WC and bidets, bathtubs, faucets and accessories.
