Technical description
Compact countertop basin LAUFEN PRO, sanitary ceramic, EN 31, dimensions 600 x 380 mm, angular, 1 centre tap hole, Special feature: overflow channel glazed, Further options / accessories: Surface refinement LCC (only white), 3 tap holes, without tap holes, without tap holes/overflow and open, drain, 1 tap hole/without overflow and open drain, siphon cover, pedestal, bathtubs, furniture, Order no. 81895.9
Mounting accesories excluded
Mounting set M10 x 140 mm, order no. 89988.2
Bowl depth (mm):
95
Bowl length (mm):
540
Bowl position:
Central
Bowl width (mm):
225
Compact basin
Installation type:
Vanity, Wall-hung
Internal Shape:
Rectangular
Material:
Ceramics
Net weight (kg):
13
Number of fixing points:
2
Option:
one tap hole, centre
Shape:
Rectangular
Taphole configuration:
1 taphole in the middle

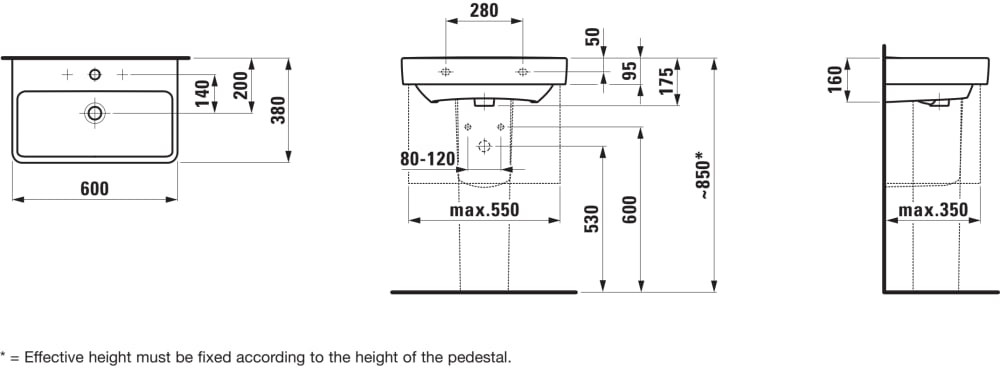

Download the CAD (2D, 3D) files of this product in different formats. | ⚠ Caution: CAD files should not be used for computer-controlled (CNC) cutting of countertops or similar and are for space-planning & room rendering purposes only. Upon request cut-out templates are available from LAUFEN. All drawings contain the necessary measurements (mm) which are subject to standard tolerances. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished product.
