Technical description

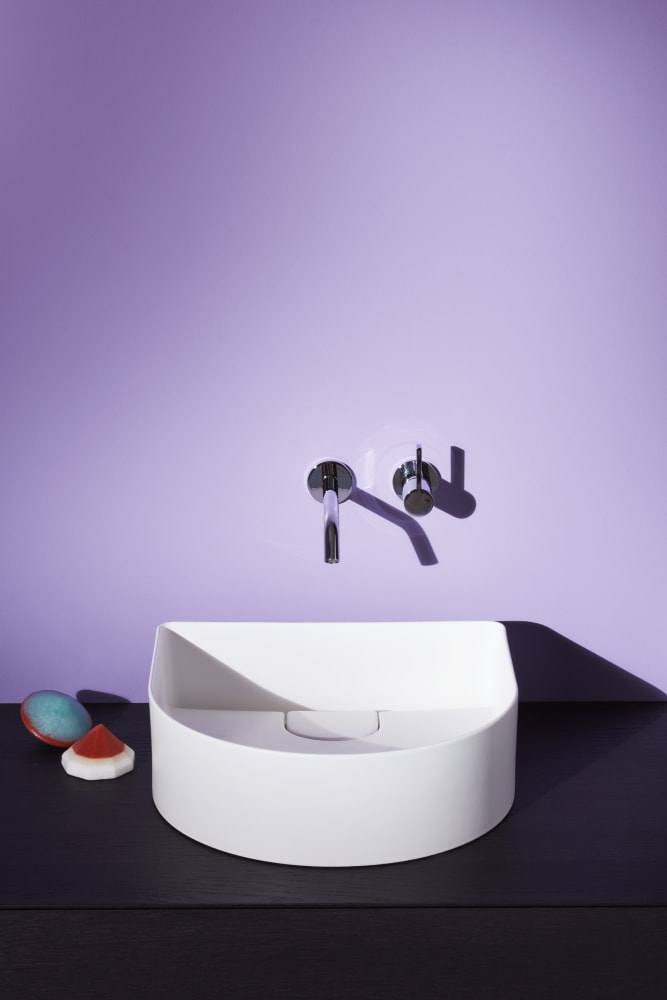

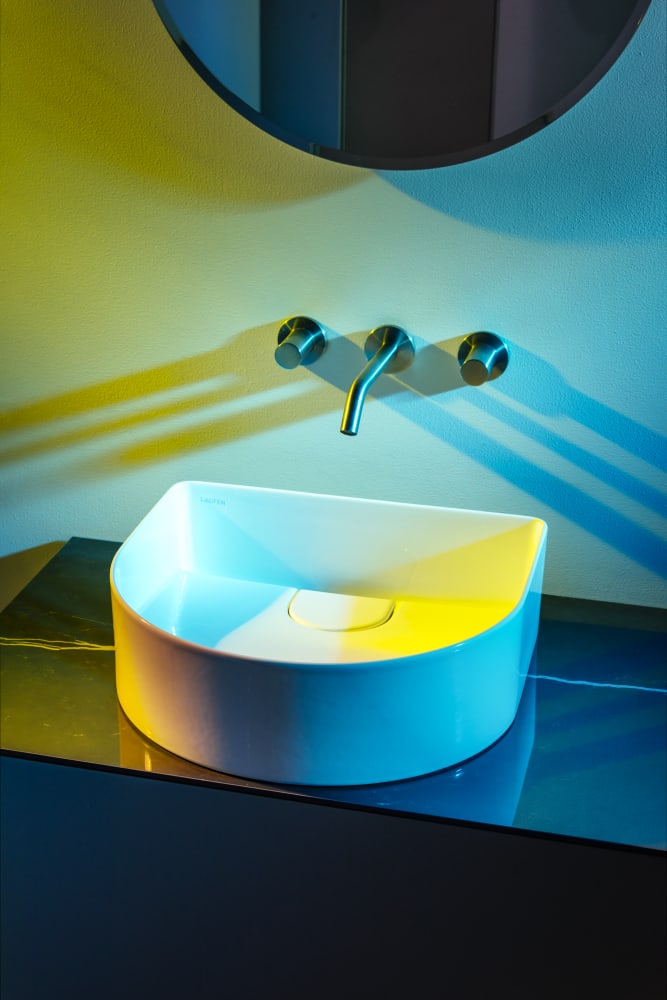

Washbasin bowl Laufen-SONAR, SaphirKeramik
EN 31

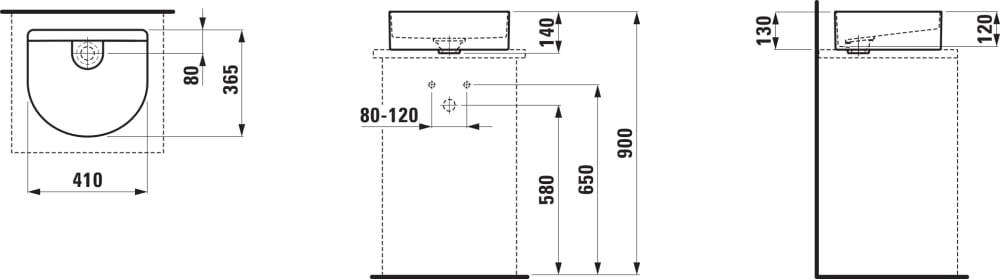

dimensions 410 x 365 mm
without tap holes, without overflow, valve without overflow always open,
SaphirKeramik valve cover plate
Further options / accessories: Surface refinement LCC (only white),
bathtubs
Order no. 812342
Mounting accesories included
Charge 112 – valve without overflow always
open, order no. 893344
Template, order no. 893345
Fastening kit, order no. 894961
Mounting accesories excluded
Siphon DN 32 chrome, order no. 374980
Basin capacity (l):
0
Bowl length (mm):
410
Bowl position:
Central
Bowl width (mm):
360
Fixing kit:
Included
Installation type:
Bowl / On countertop
Internal Shape:
Soft
Material:
Saphirkeramik
Net weight (kg):
6.6
Option:
without tap hole, without overflow
Plug and Waste:
Included
Shape:
Soft
Taphole configuration:
No tapholes
Waste:
Included
Cradle to Cradle Certified®
Product Circularity Bronze (Version 4.1)
Download the CAD (2D, 3D) files of this product in different formats. | ⚠ Caution: CAD files should not be used for computer-controlled (CNC) cutting of countertops or similar and are for space-planning & room rendering purposes only. Upon request cut-out templates are available from LAUFEN. All drawings contain the necessary measurements (mm) which are subject to standard tolerances. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished product.
MATERIAL
Saphirkeramik, patented and available on the market is one of the latest, globally significant innovation from LAUFEN. This revolutionary, ceramic material reaches its exceptional hardness blended with corundum, a colourless mineral, which is a component of sapphires. This gives Saphirkeramik a flexural strength equal to that of steel. Yet it has the potential to be wafer-thin, giving designers almost infinite freedom to experiment – and tear up the rulebook of bathroom design.
