Technical description
Drop in basin LAUFEN PRO S, sanitary ceramic
dimensions 560 x 440 mm, angular
1 centre tap hole, overflow in front
Special feature: overflow channel glazed
Further options / accessories: Surface refinement LCC (only white),
3 tap holes, without tap holes, 1 tap hole without overflow, without tap holes and overflow, 3 tap holes distance 8 inches, 3 tap holes, without overflow, bathtubs, furnitureOrder no. 81896.3
Mounting accesories included
Template, order no. 89996.7
Mounting accesories excluded
Silicon caoutchouc
Siphon D40 chrome, order no. 89397.9
Bowl length (mm):
470
Bowl position:
Central
Bowl width (mm):
275
Installation type:
Drop-in / Countertop
Internal Shape:
Square
Material:
Ceramics
Net weight (kg):
8.9
Number of fixing points:
2
Option:
one tap hole, centre
Overflow type:
Standard
Shape:
Rectangular
Taphole configuration:
1 taphole in the middle

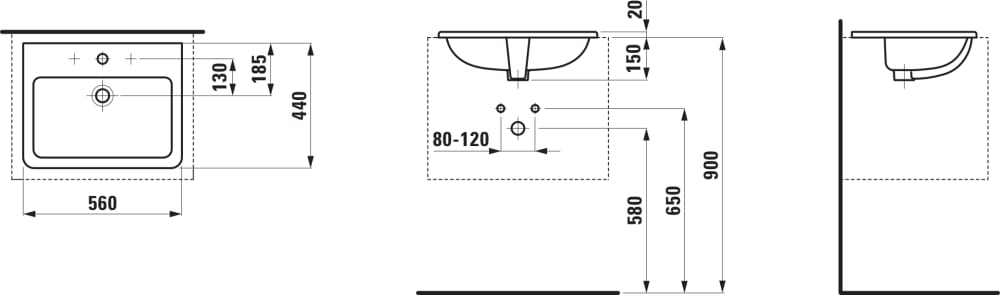

Download the CAD (2D, 3D) files of this product in different formats. | ⚠ Caution: CAD files should not be used for computer-controlled (CNC) cutting of countertops or similar and are for space-planning & room rendering purposes only. Upon request cut-out templates are available from LAUFEN. All drawings contain the necessary measurements (mm) which are subject to standard tolerances. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished product.
