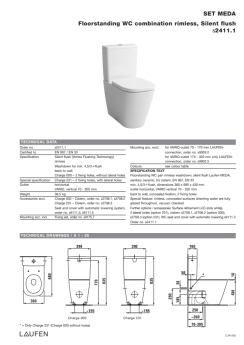

Technical description

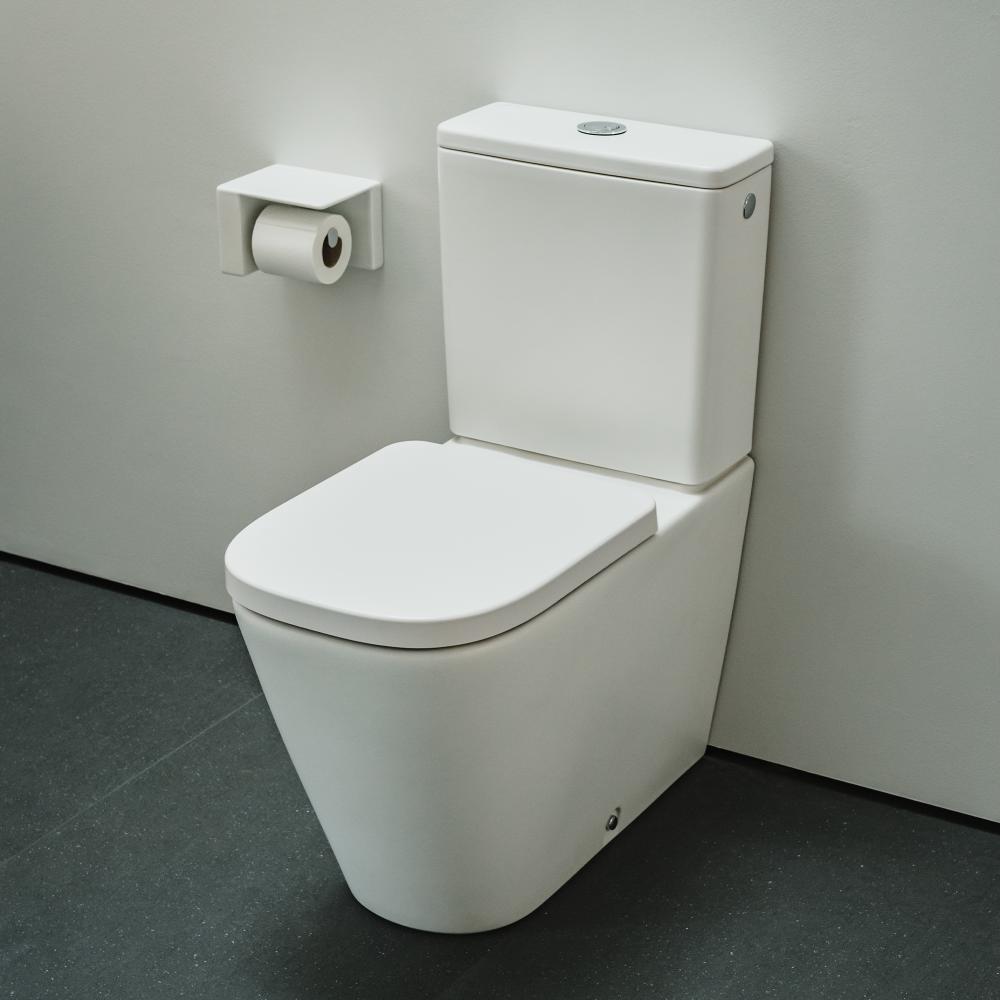

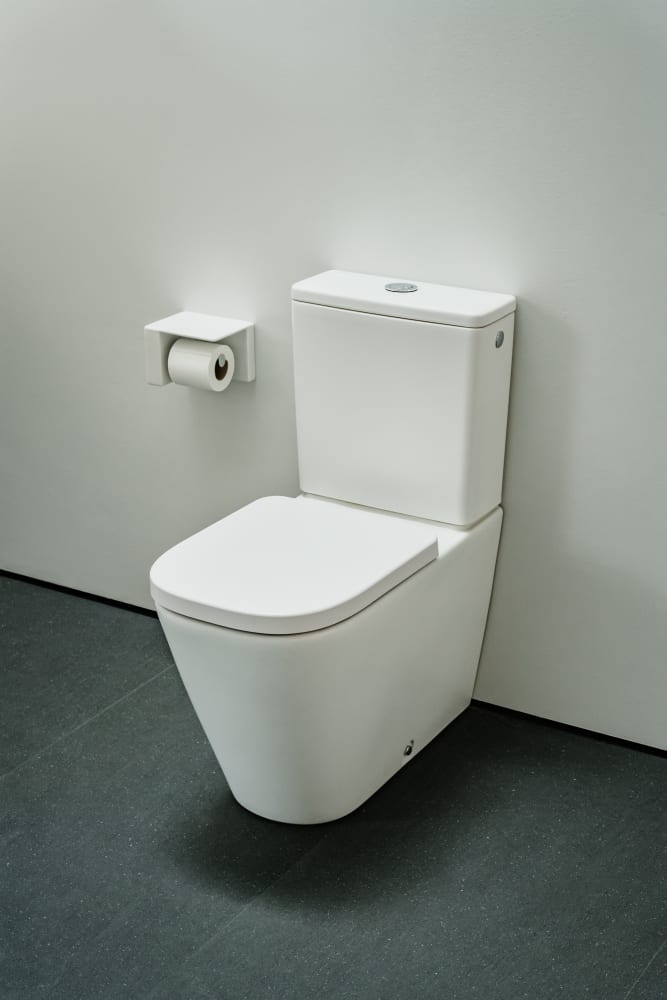

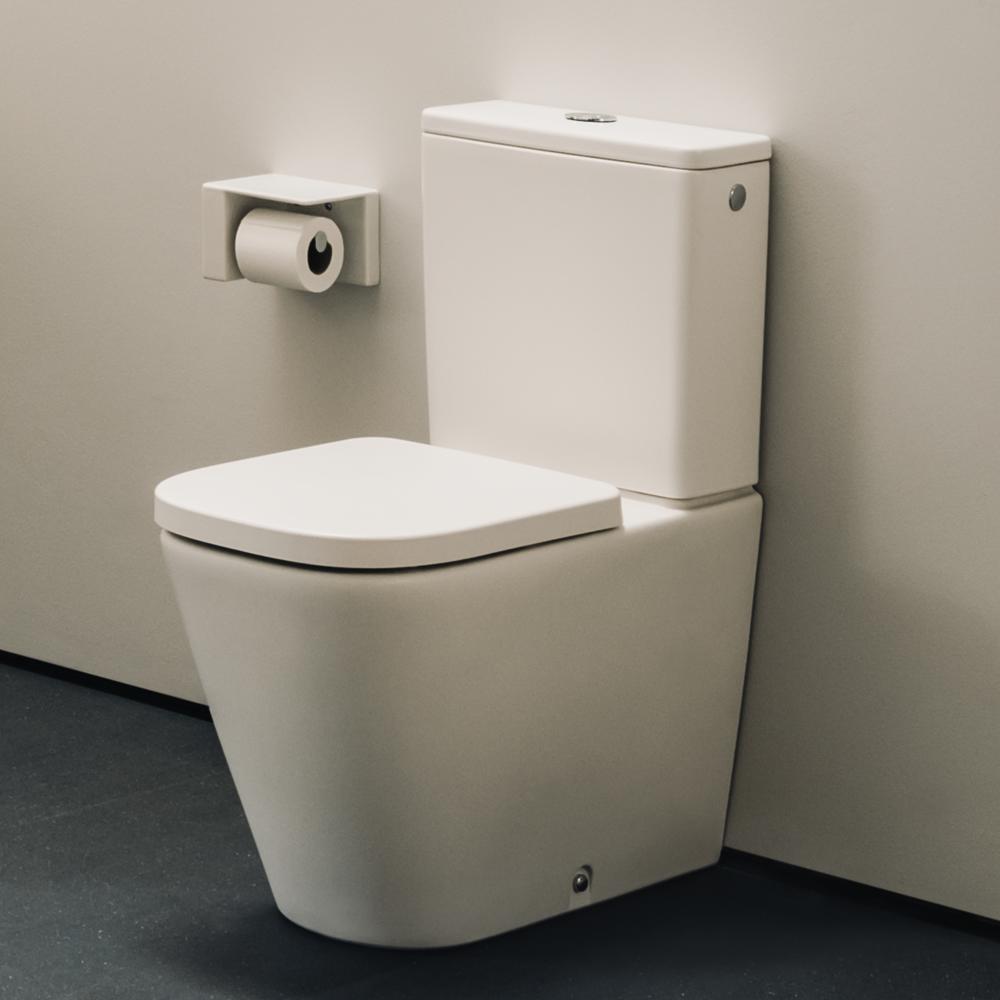

Floorstanding WC pan rimless washdown, silent flush Laufen-MEDA, sanitary ceramic, for cistern, EN 997, EN 33 min. 4,5/3-l-flush, dimensions 360 x 680 x 430 mm outlet horizontal, VARIO vertical 70 - 305 mm back to wall, concealed fixation, 2 fixing holes
Special feature: rimless, concealed surfaces directing water are fully glazed throughout, vacuum checked
Further options / accessories: Surface refinement LCC (only white), 2 lateral holes (option 231), cistern H827081, H827082 (option 000), H827083 (option 231), WC seat and cover with automatic lowering H891113
Order no. H824111
Mounting accesories excluded
Fixing set, order no. H891757
for VARIO-outlet 70 - 170 mm LAUFEN- connection, order no. H890092
for VARIO-outlet 170 - 305 mm only LAUFEN- connection, order no. H899025
Average water consumption (L.):
3.38
Back-to-wall
Fixing kit:
Included
Flushing system:
Washdown
Installation type:
Floor-standing
Net weight (kg):
37
Option:
standard option
Outlet type:
Horizontal, Vertical
Rim type:
Rimless Silent Flush
Shape:
Soft
Water Inlet System:
Back Inlet
Unified Water Label
3.38 l
Download the CAD (2D, 3D) files of this product in different formats. | ⚠ Caution: CAD files should not be used for computer-controlled (CNC) cutting of countertops or similar and are for space-planning & room rendering purposes only. Upon request cut-out templates are available from LAUFEN. All drawings contain the necessary measurements (mm) which are subject to standard tolerances. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished product.
TECHNOLOGY
With Silent Flush, our advanced flushing technology, late-night bathroom visits won't disturb a sleeping partner or peacefully resting baby, maintaining tranquillity throughout your home. This innovative technology ensures ultra-quiet operation - a true benefit for families and neighbours. The vortex technology of Silent Flush quietly yet powerfully guides water through the toilet bowl, ensuring effective cleaning, reduced water consumption, and enhanced bathroom hygiene.
