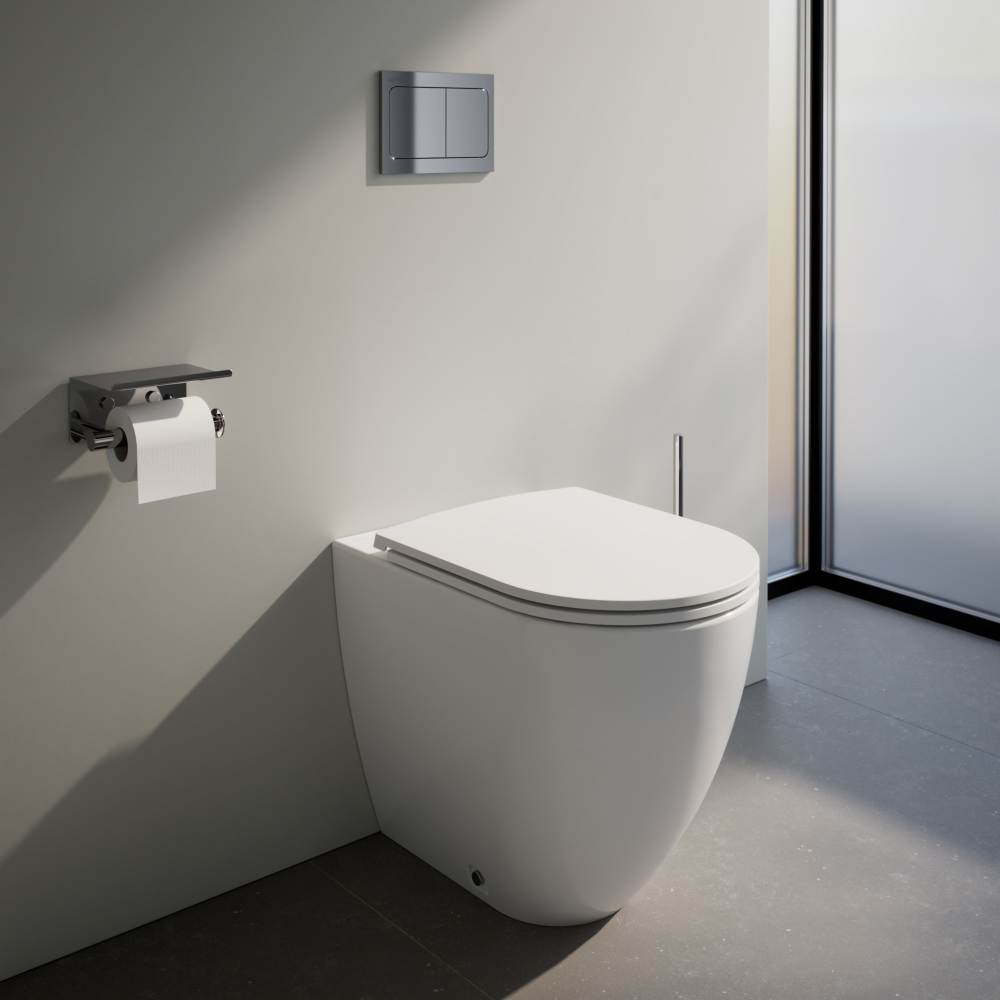

Technical description

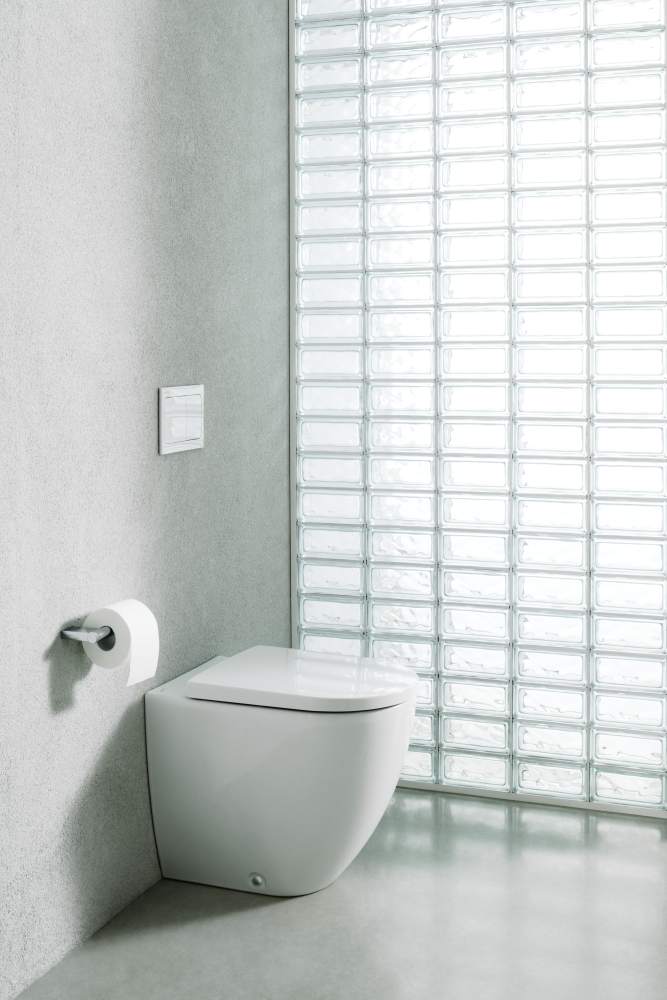

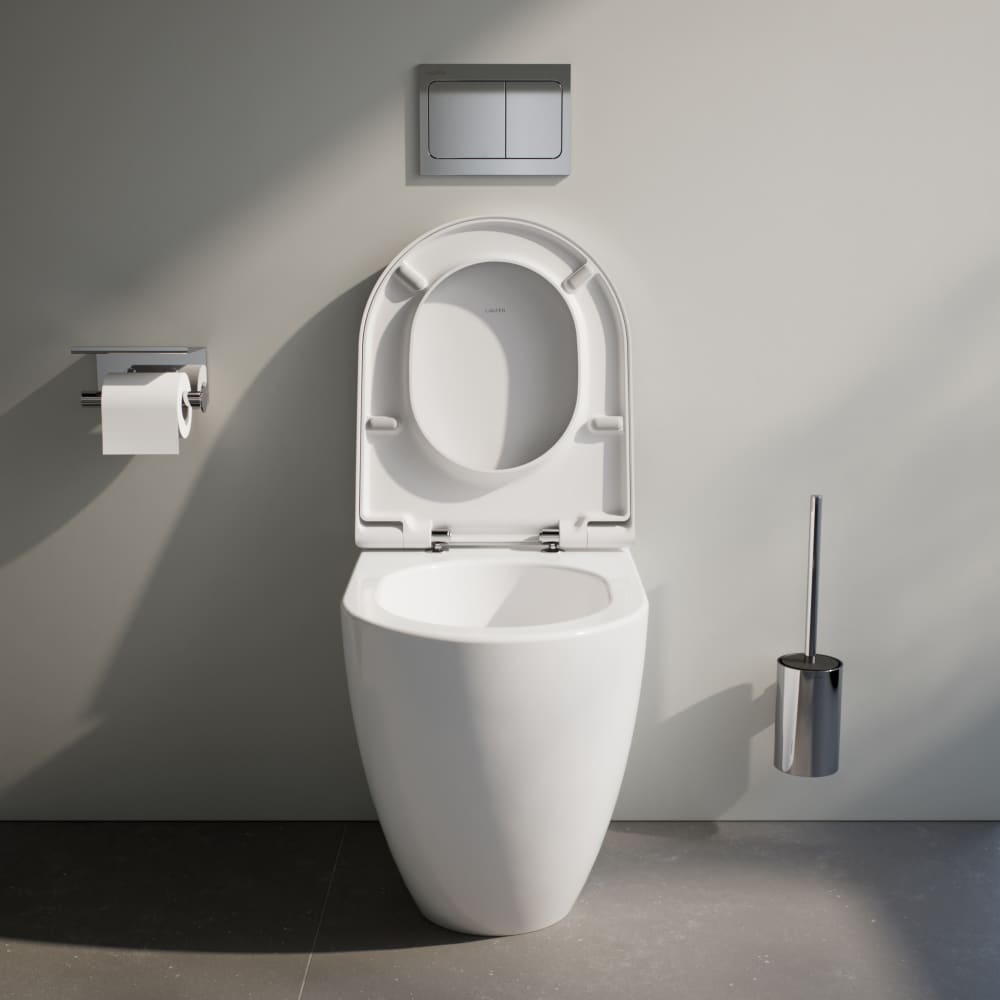

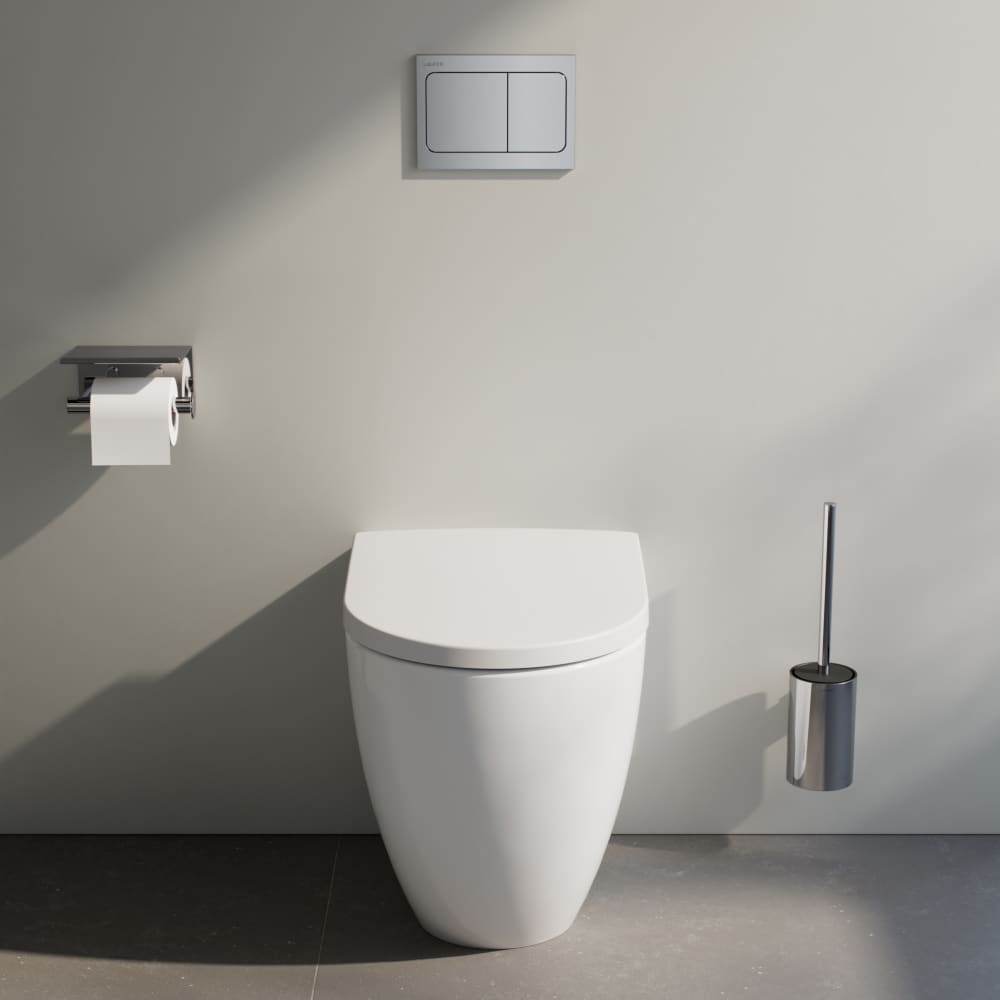

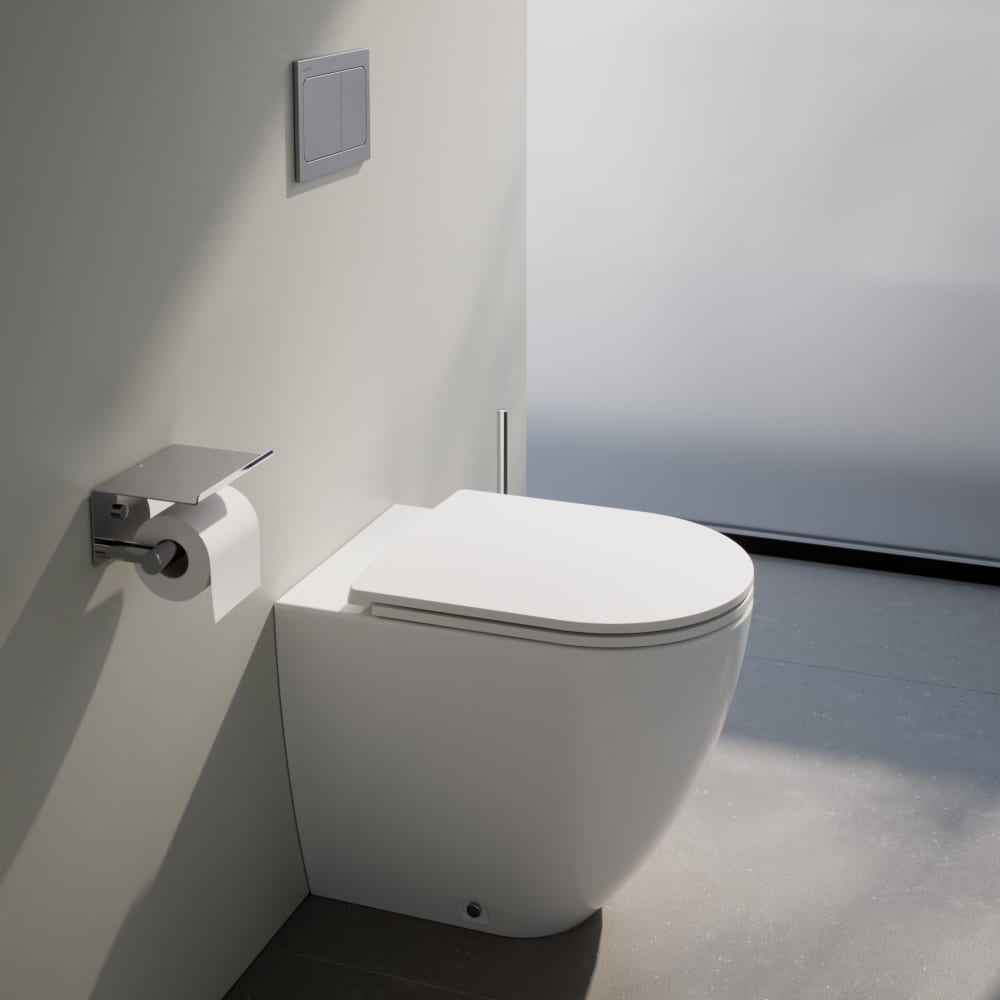

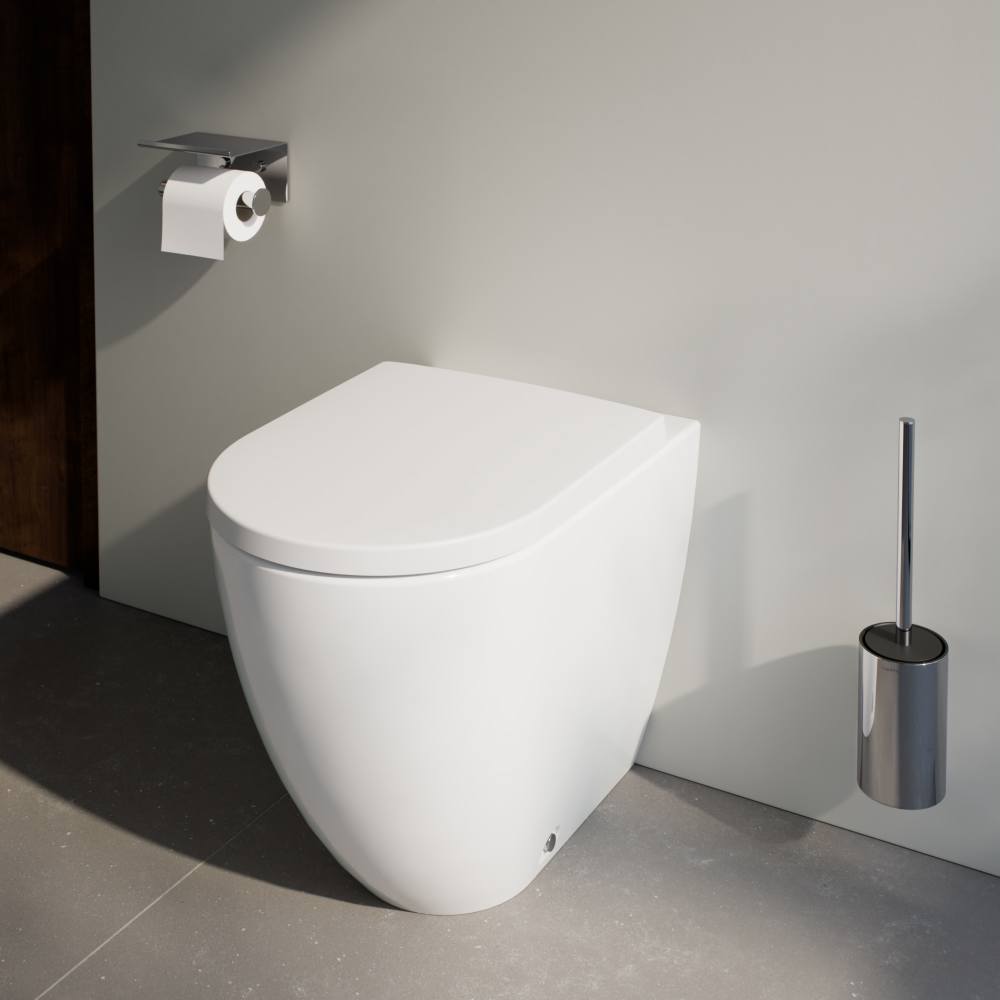

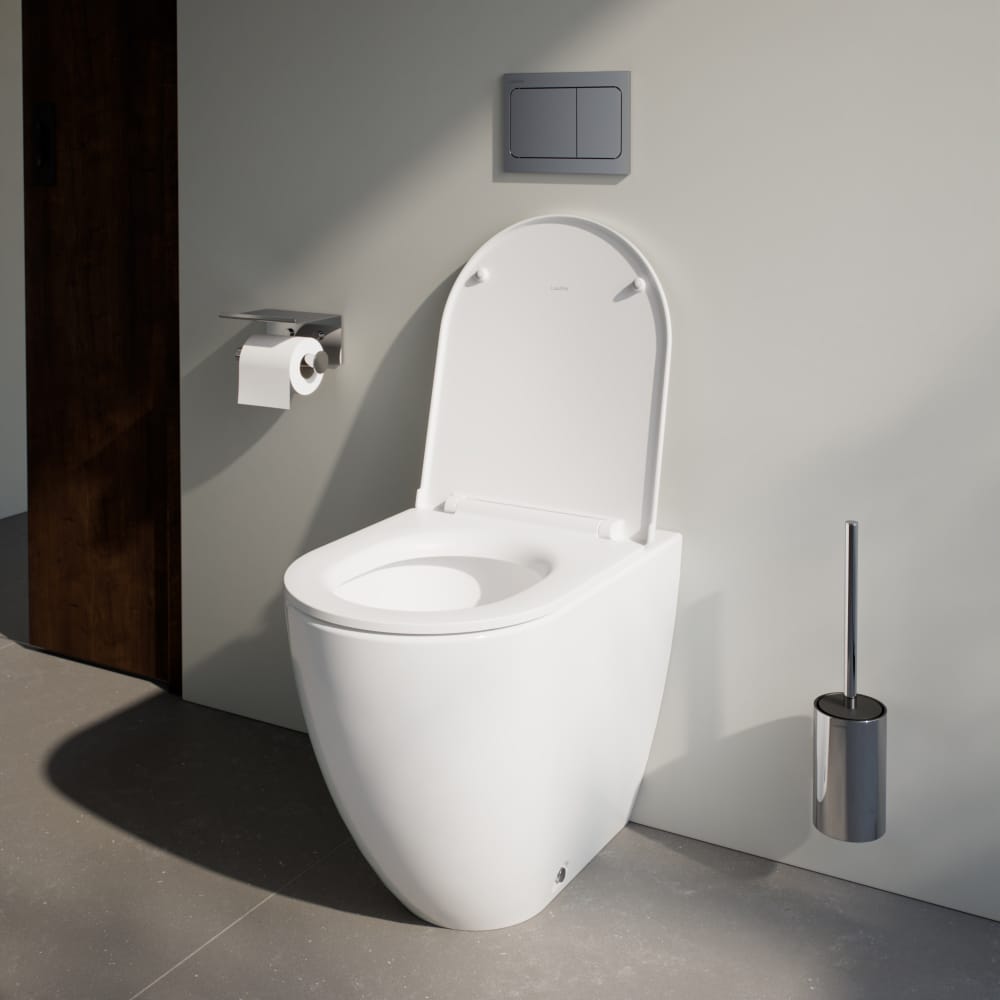

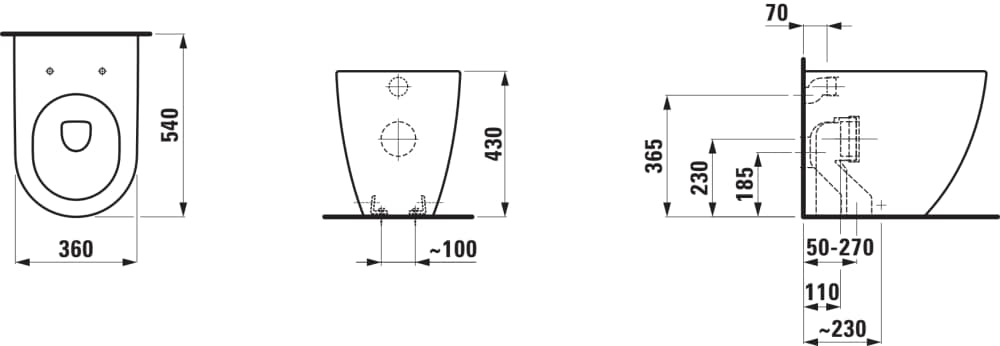

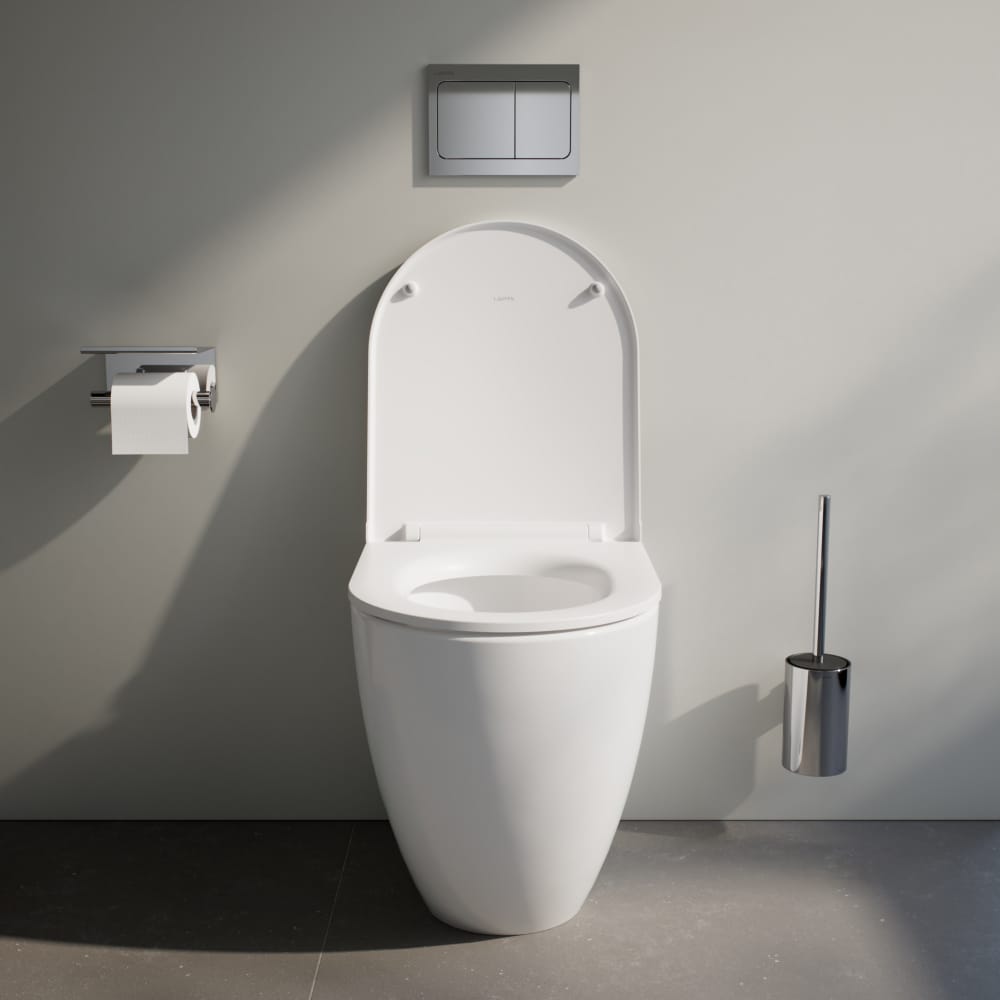

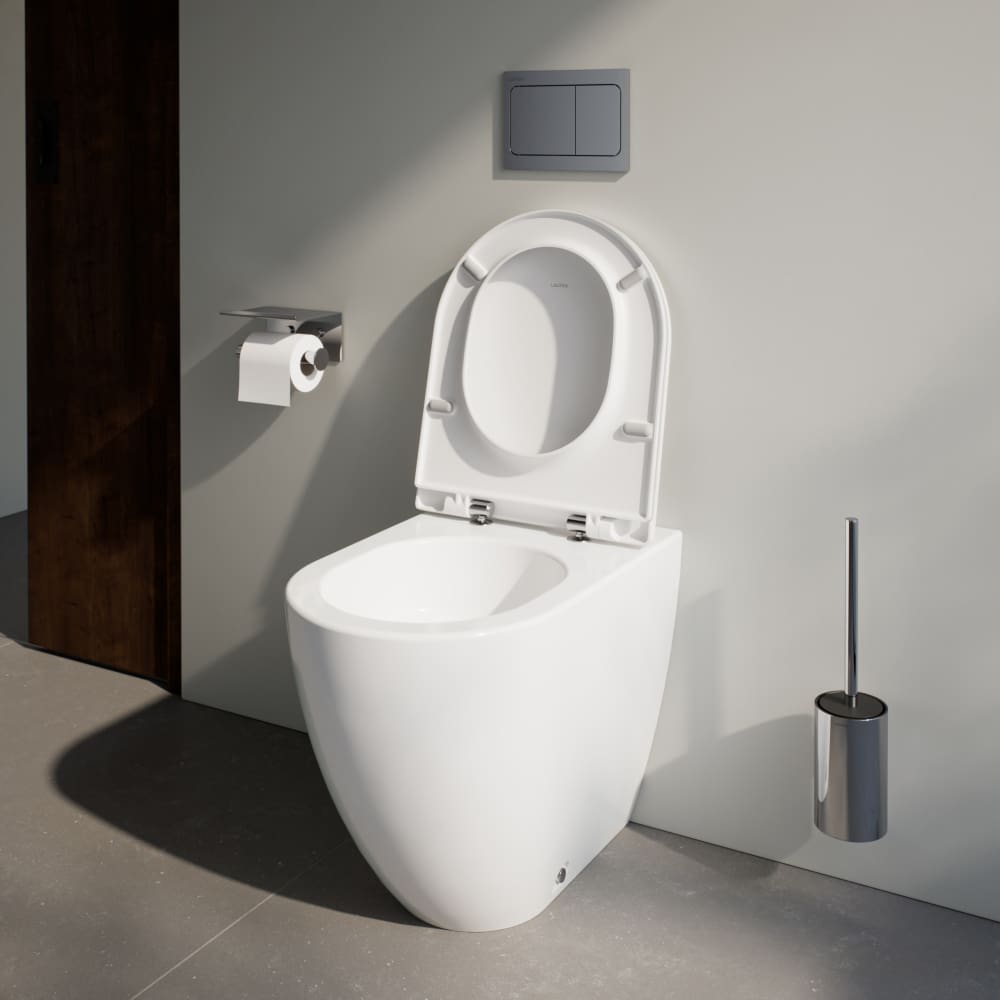

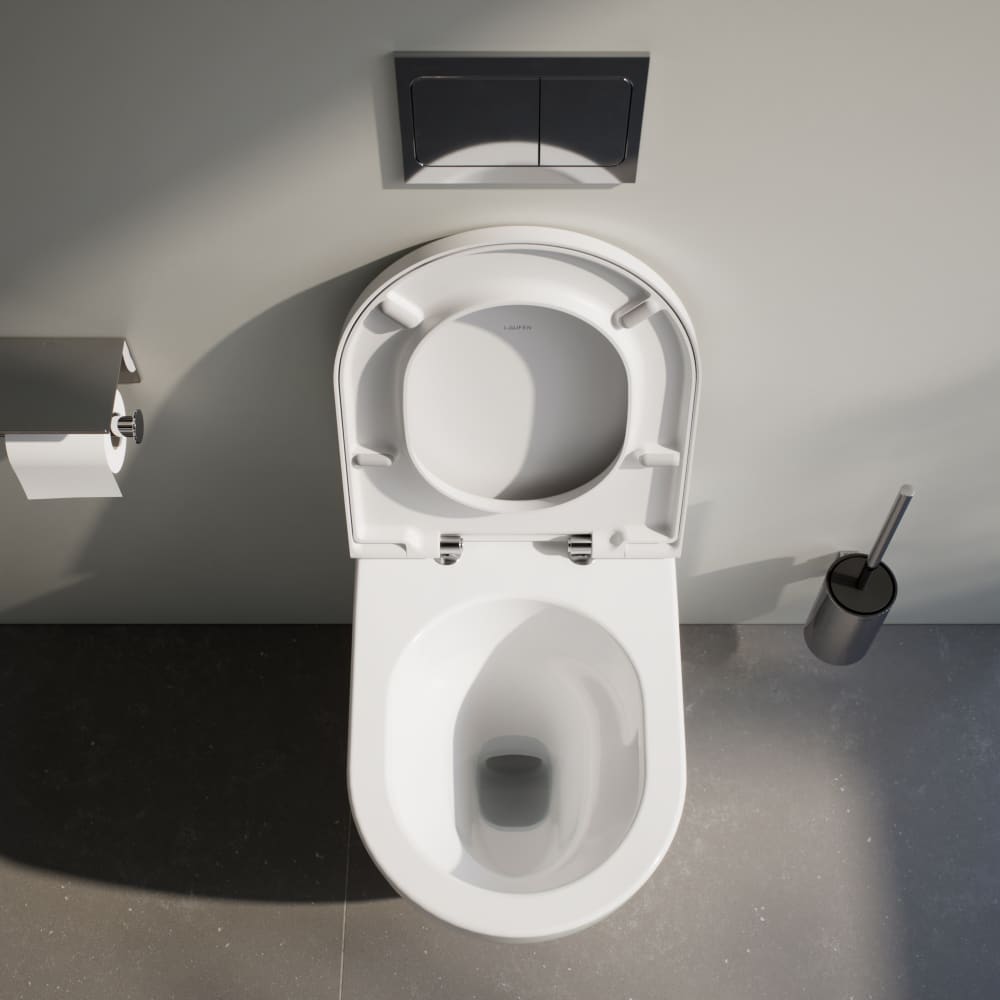

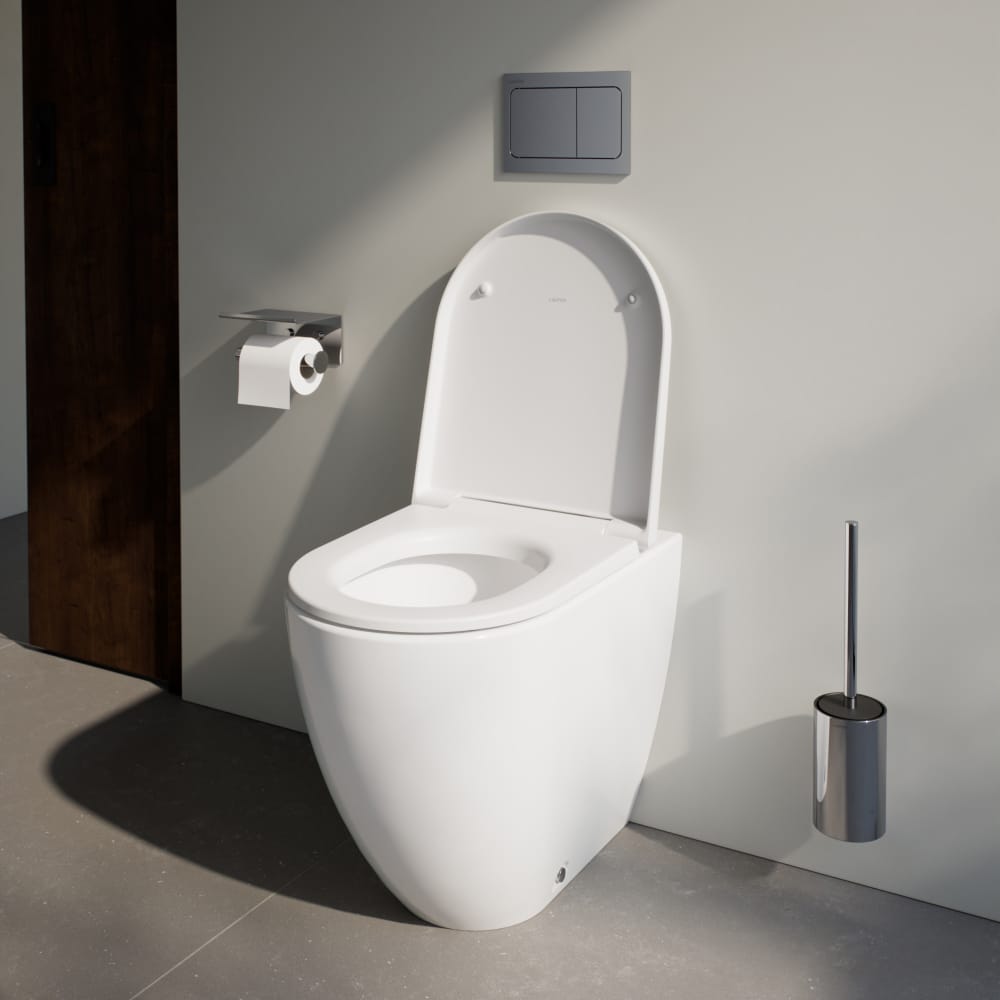

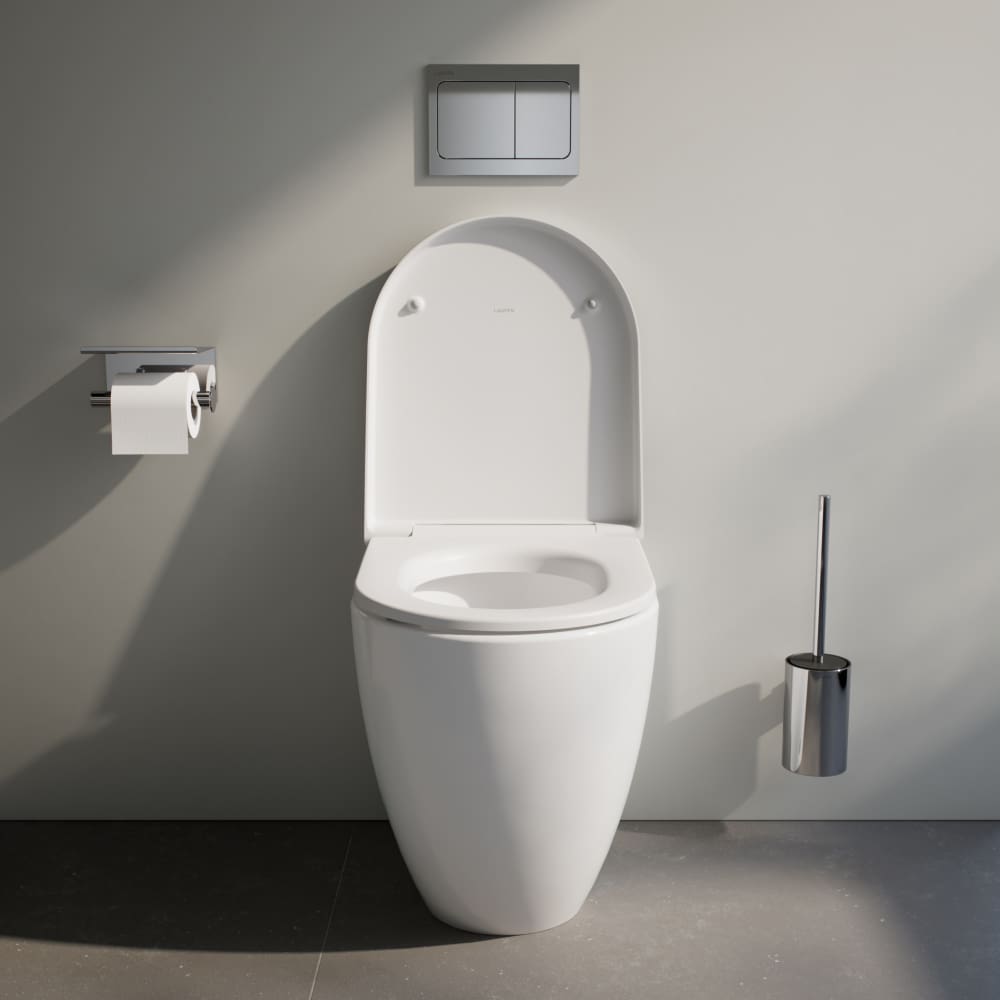

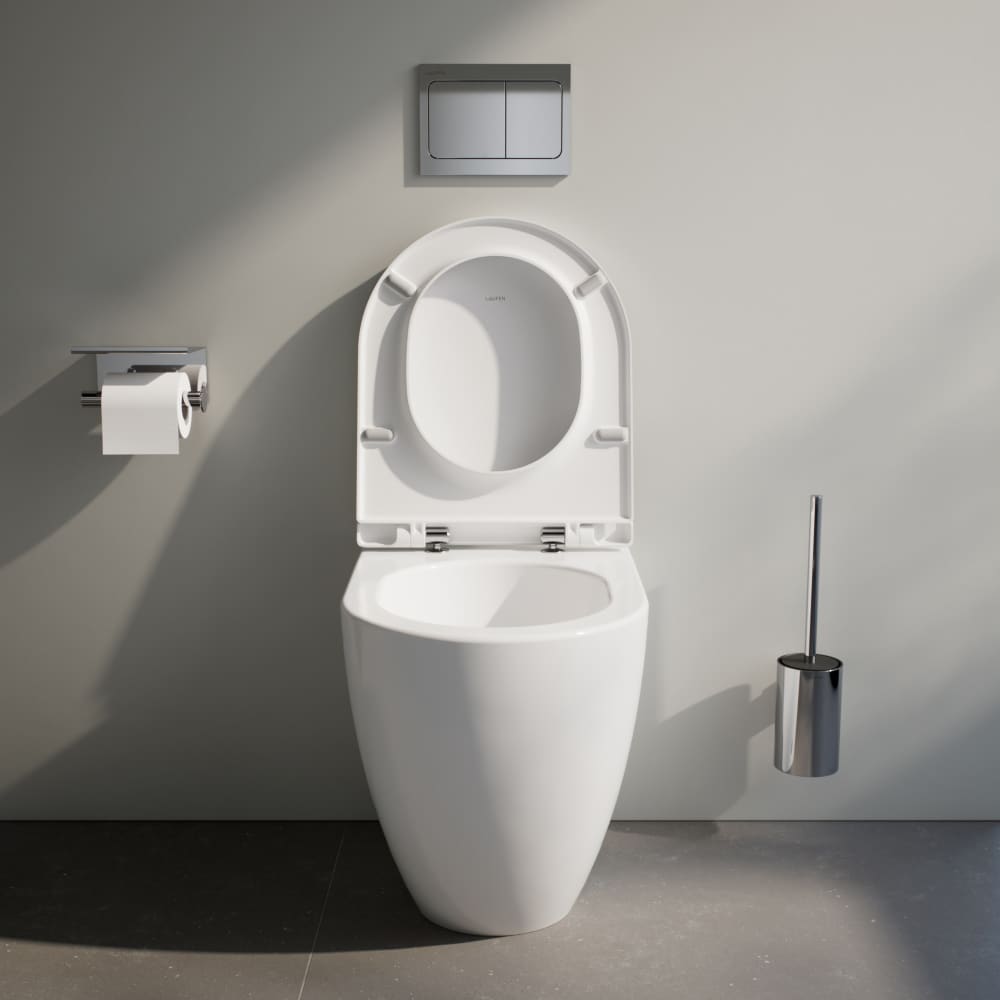

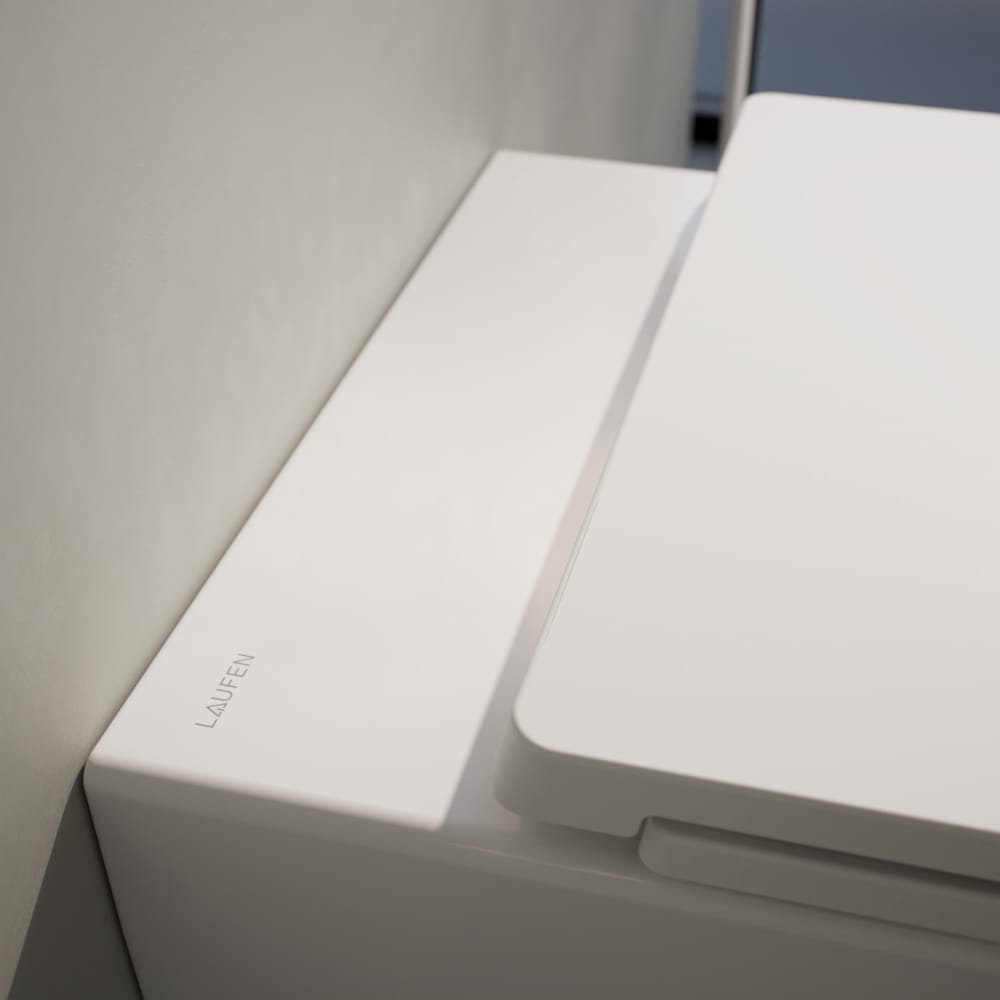

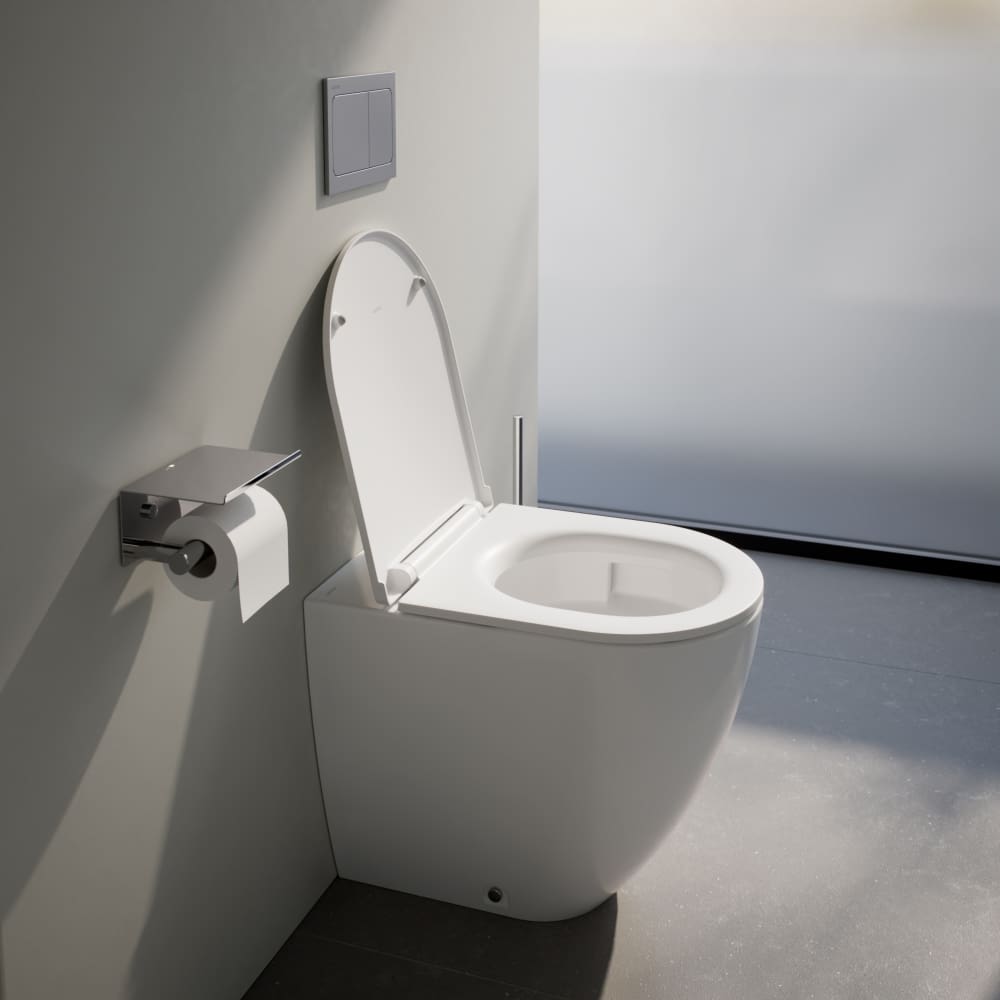

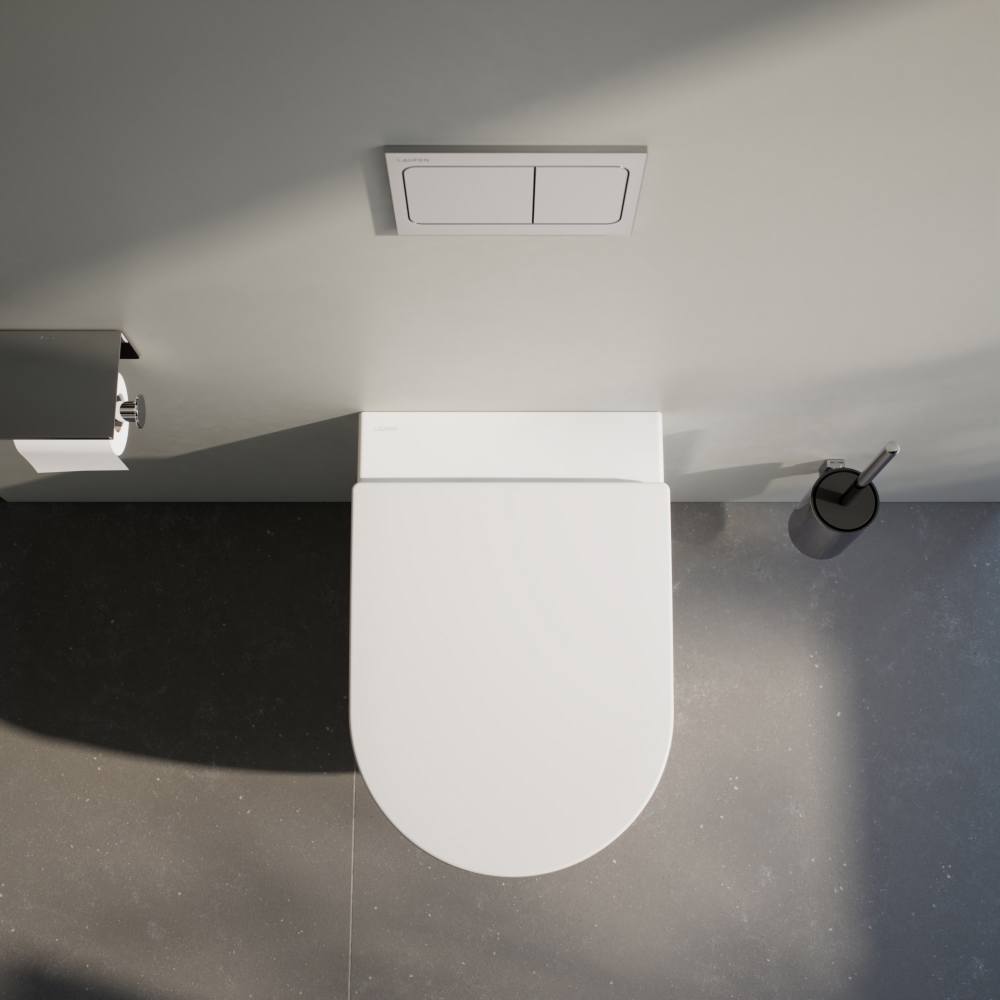

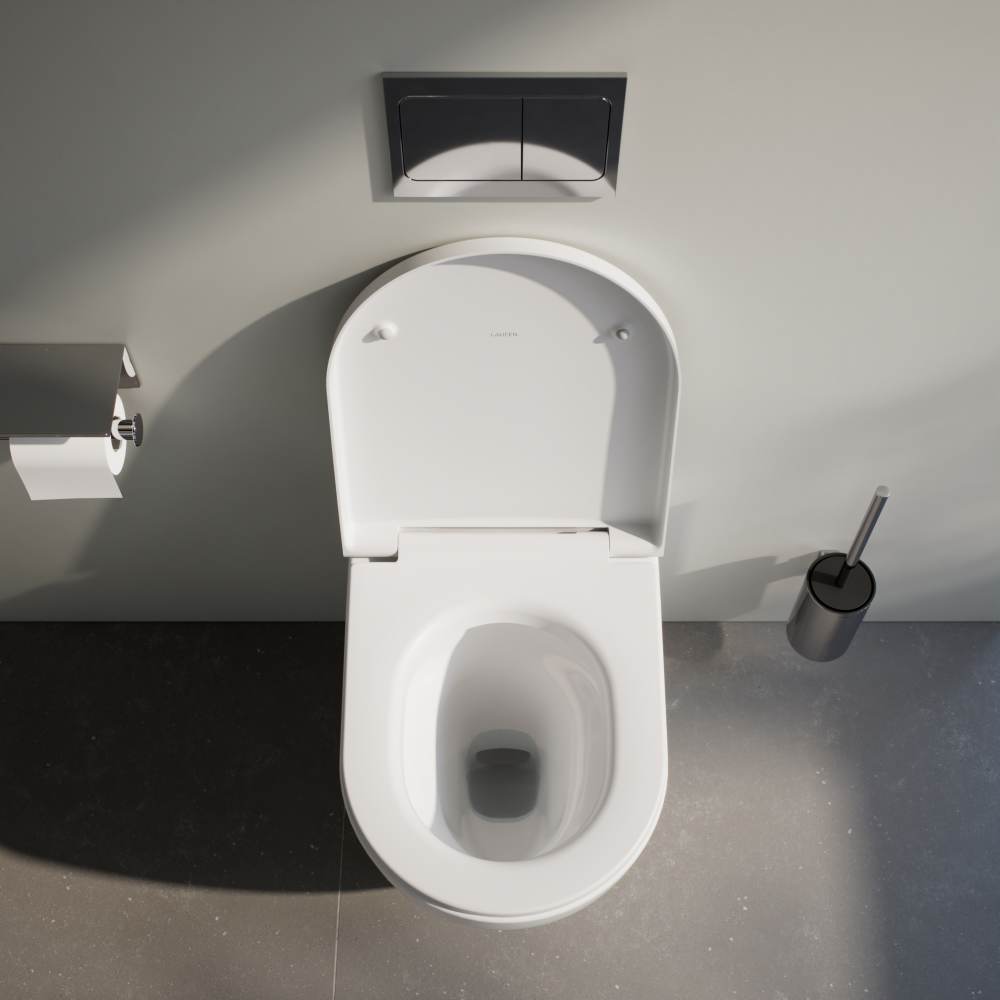

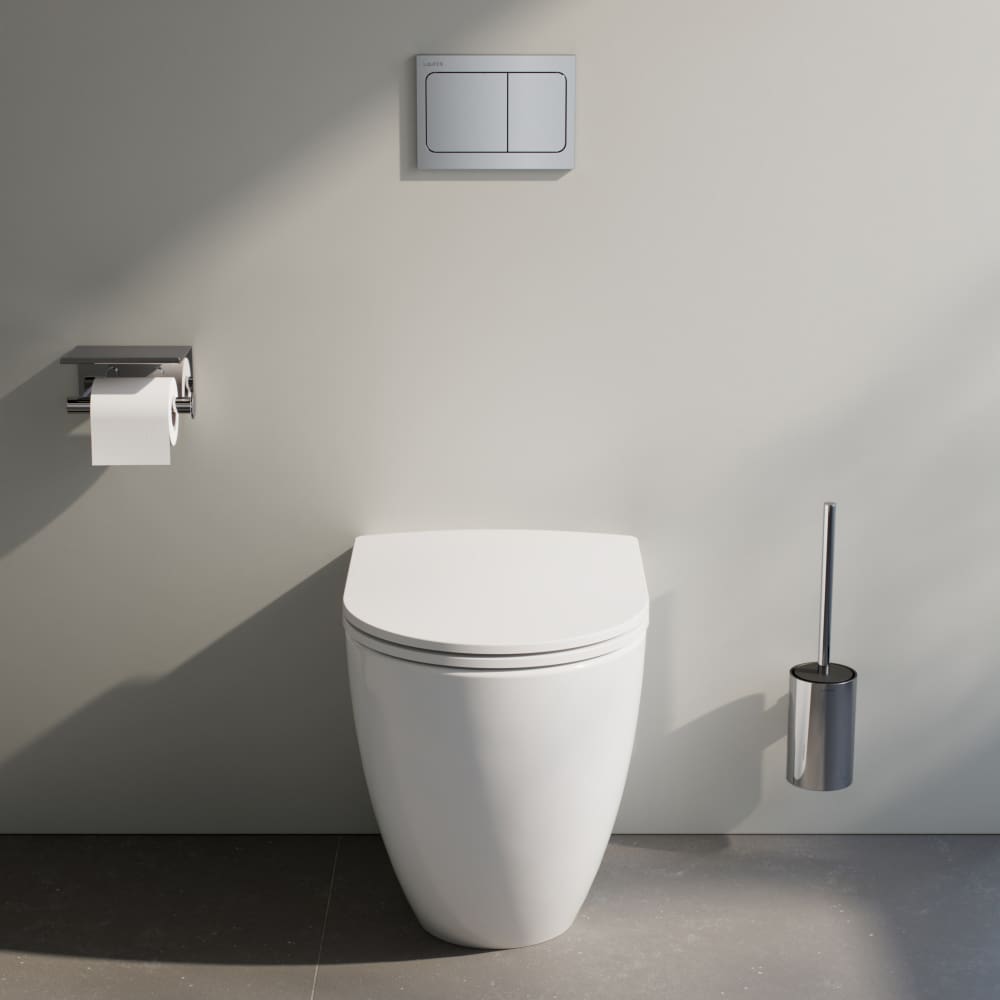

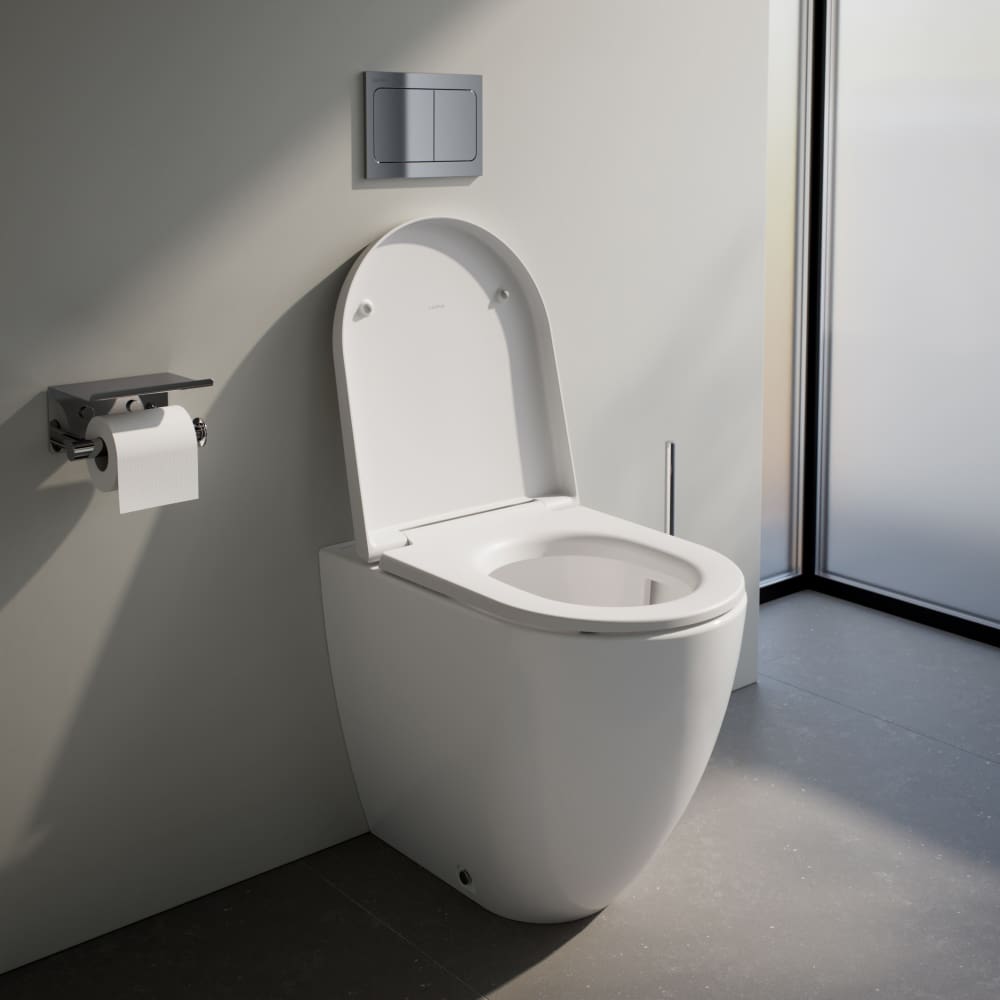

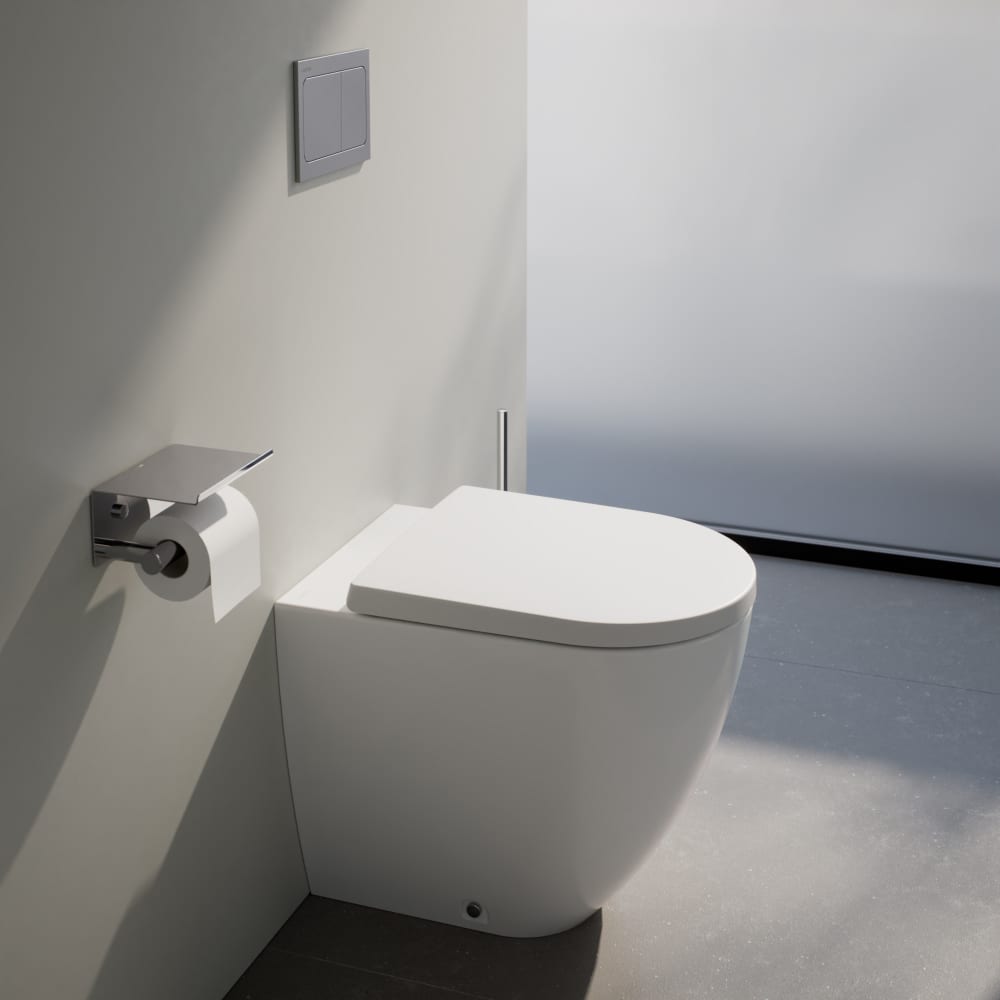

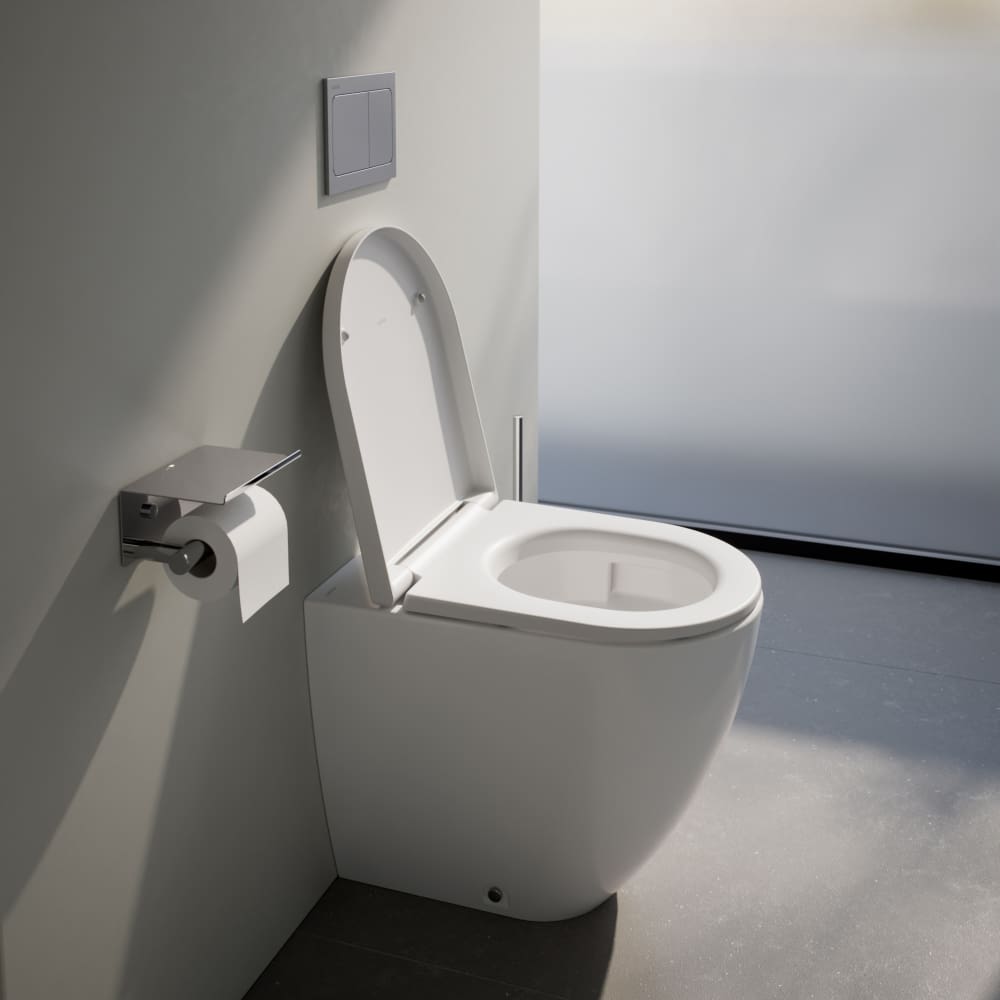

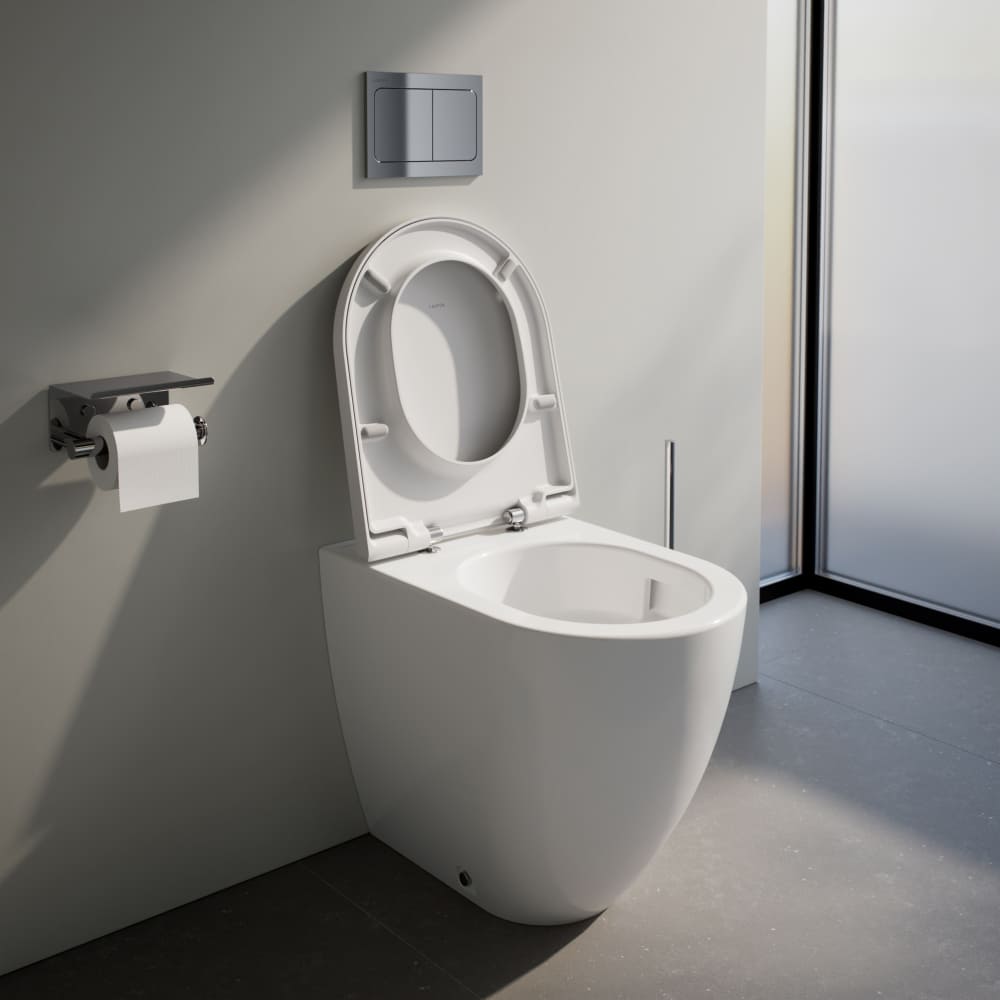

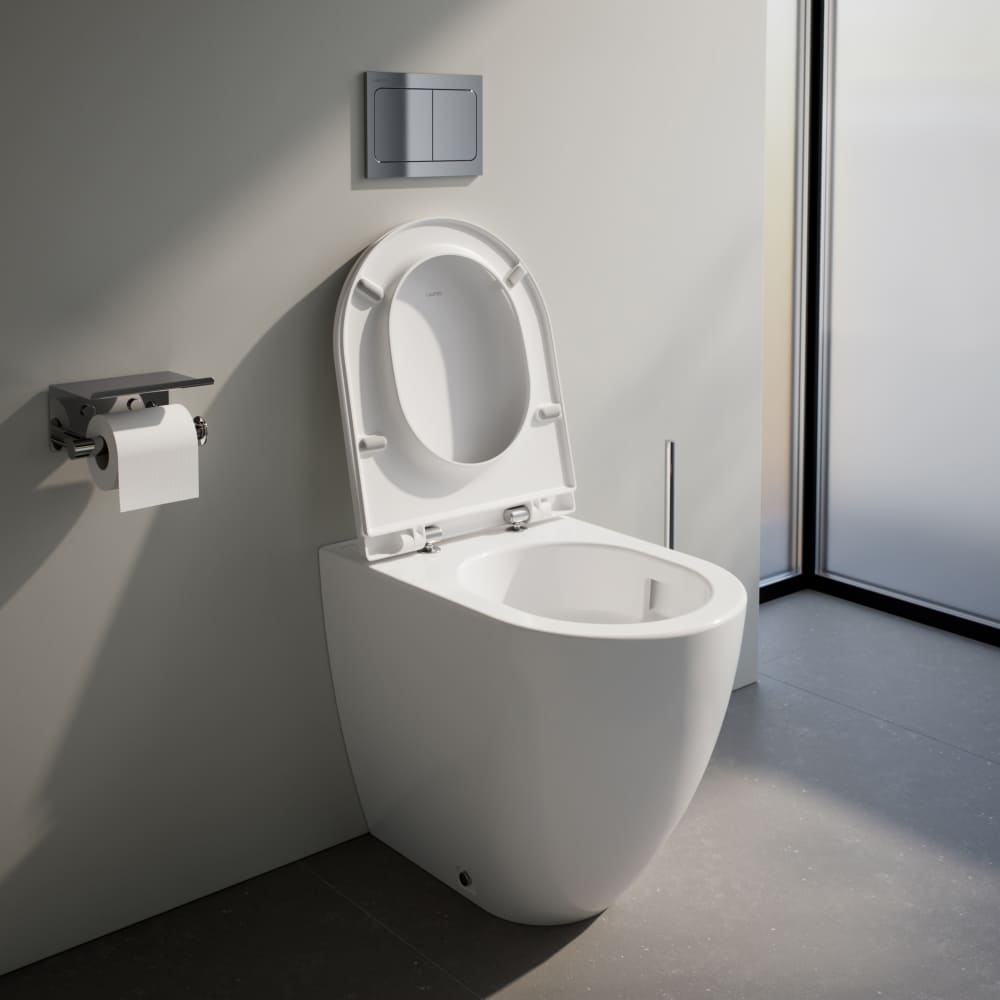

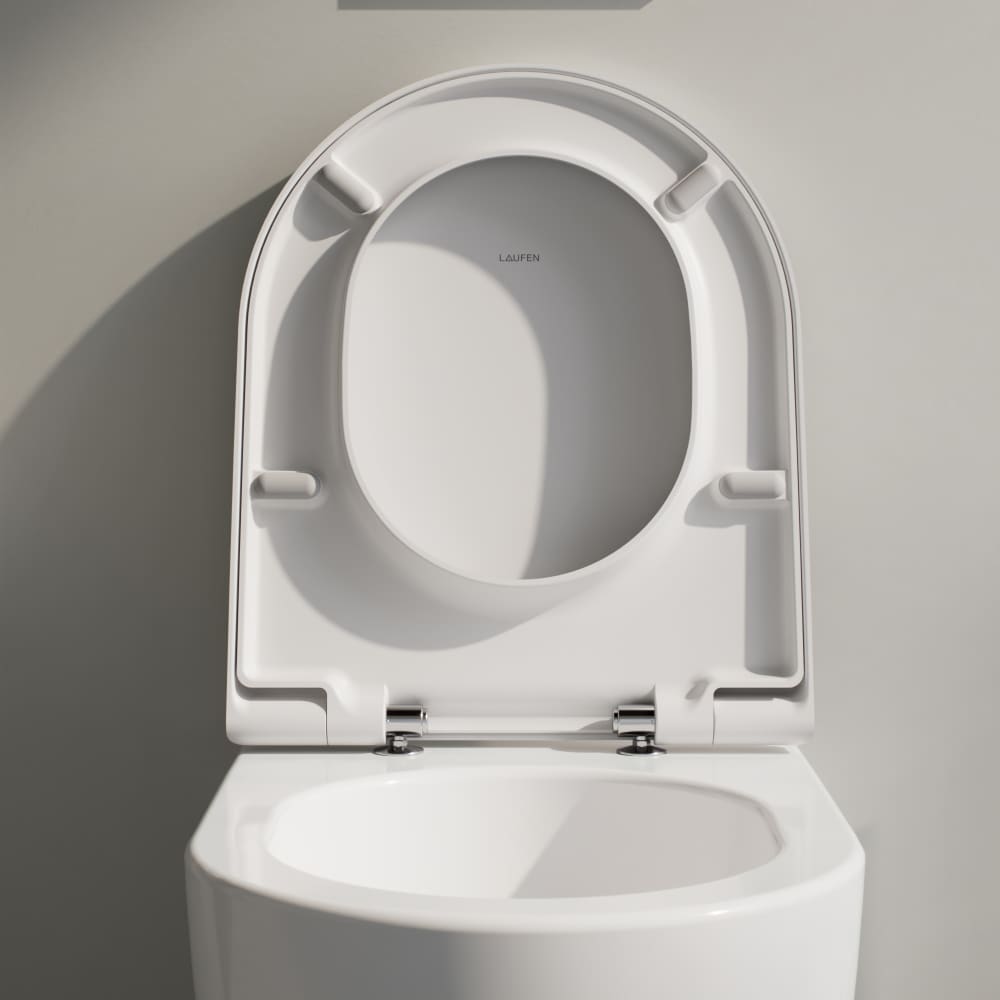

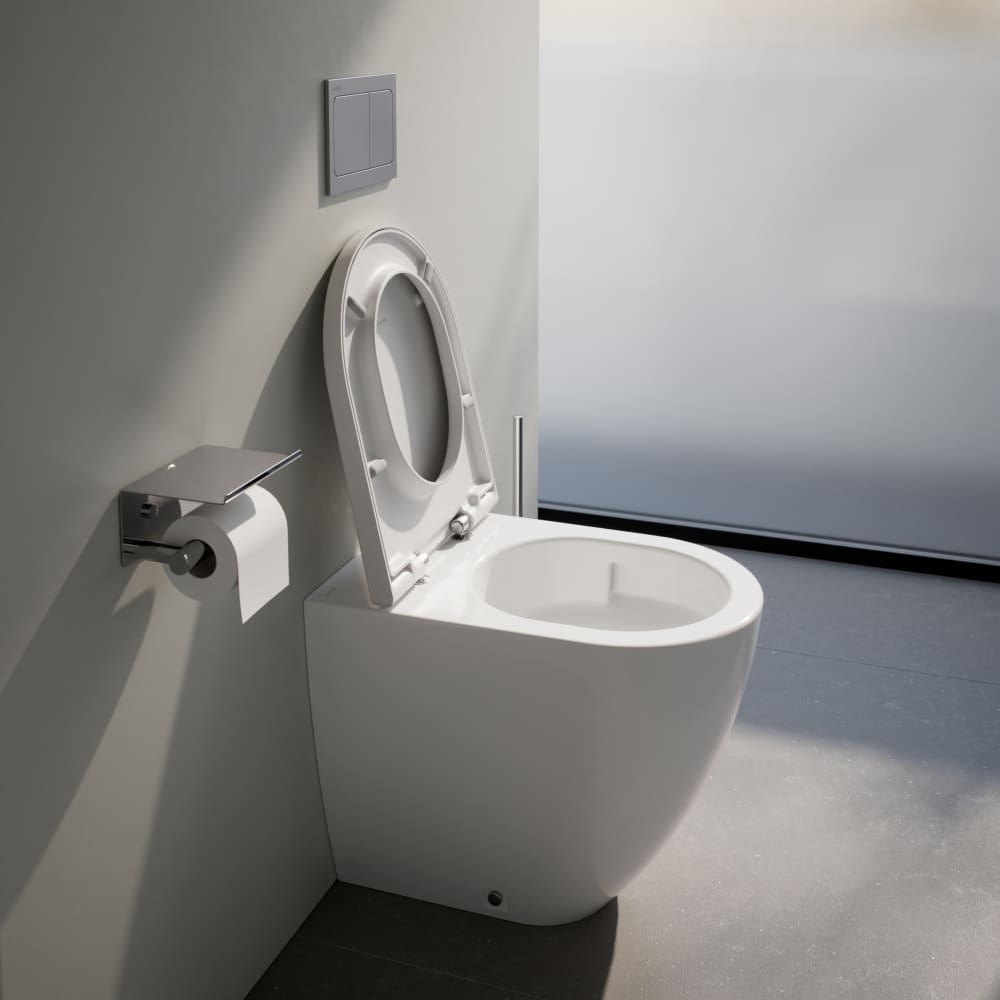

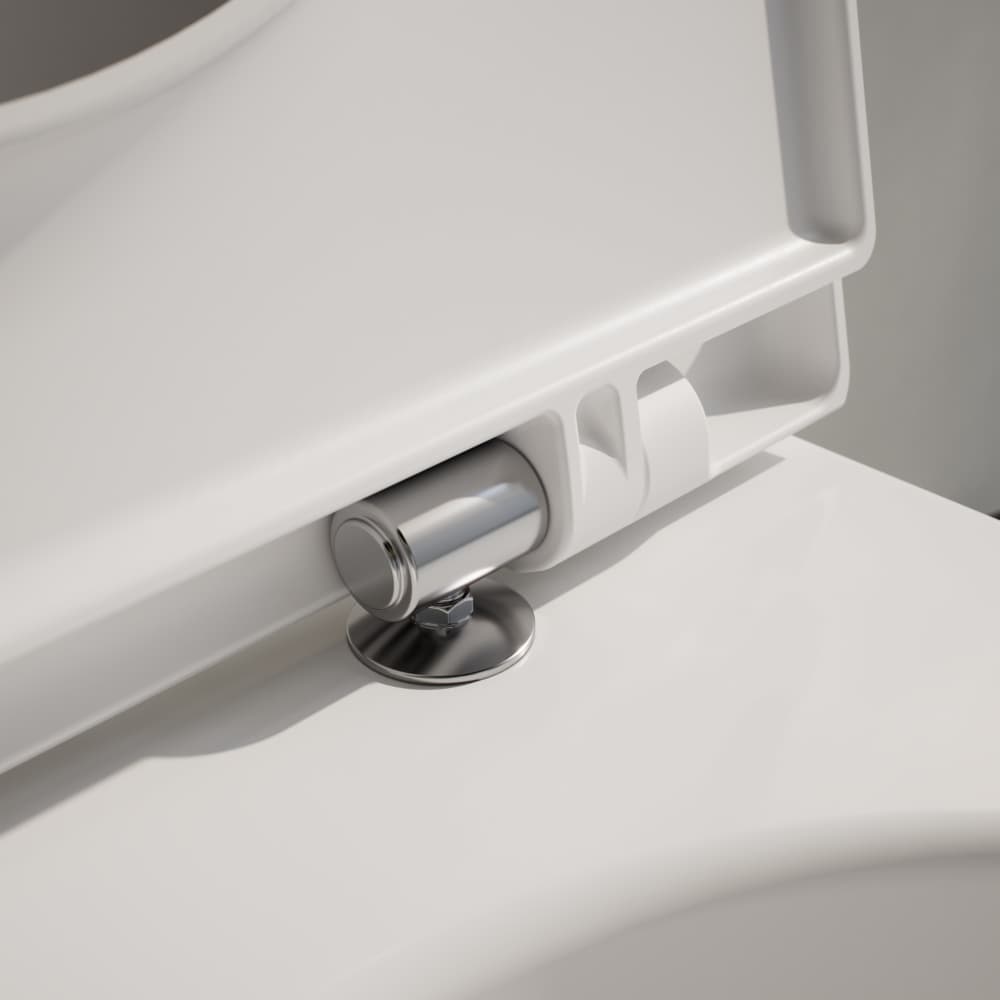

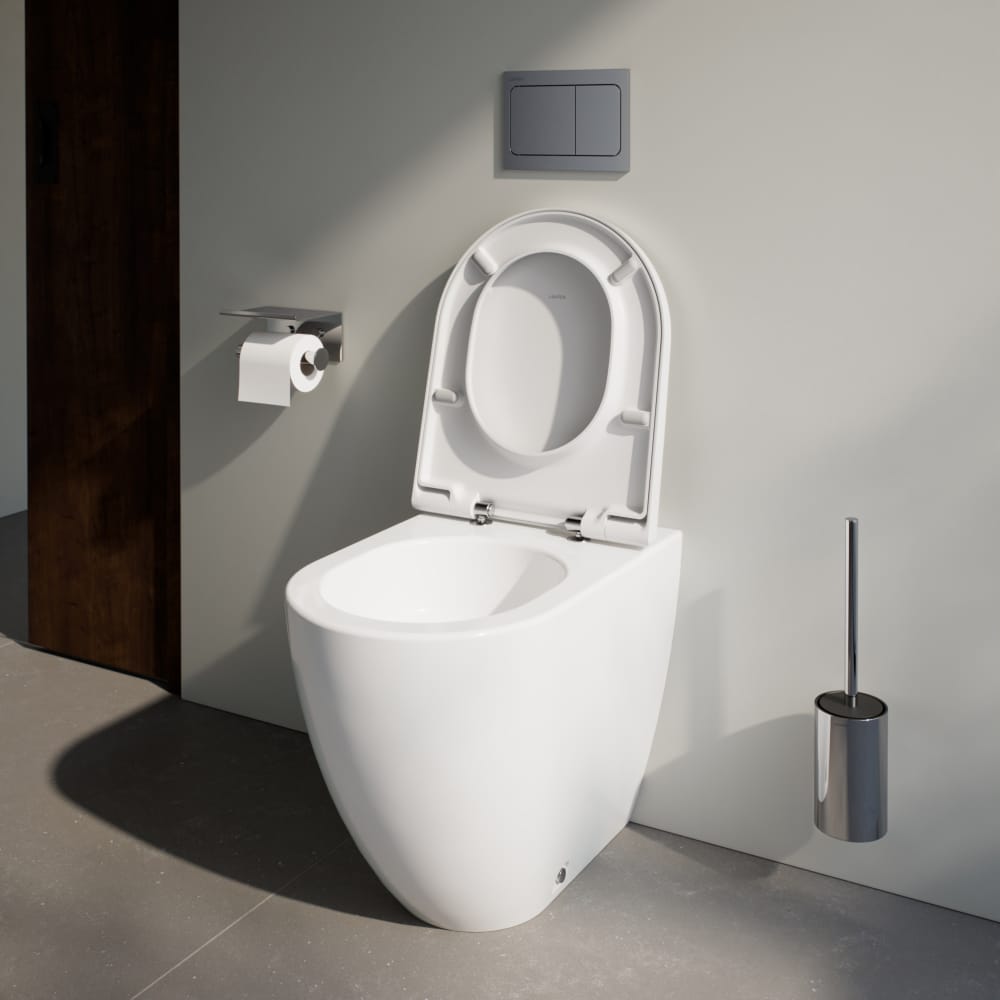

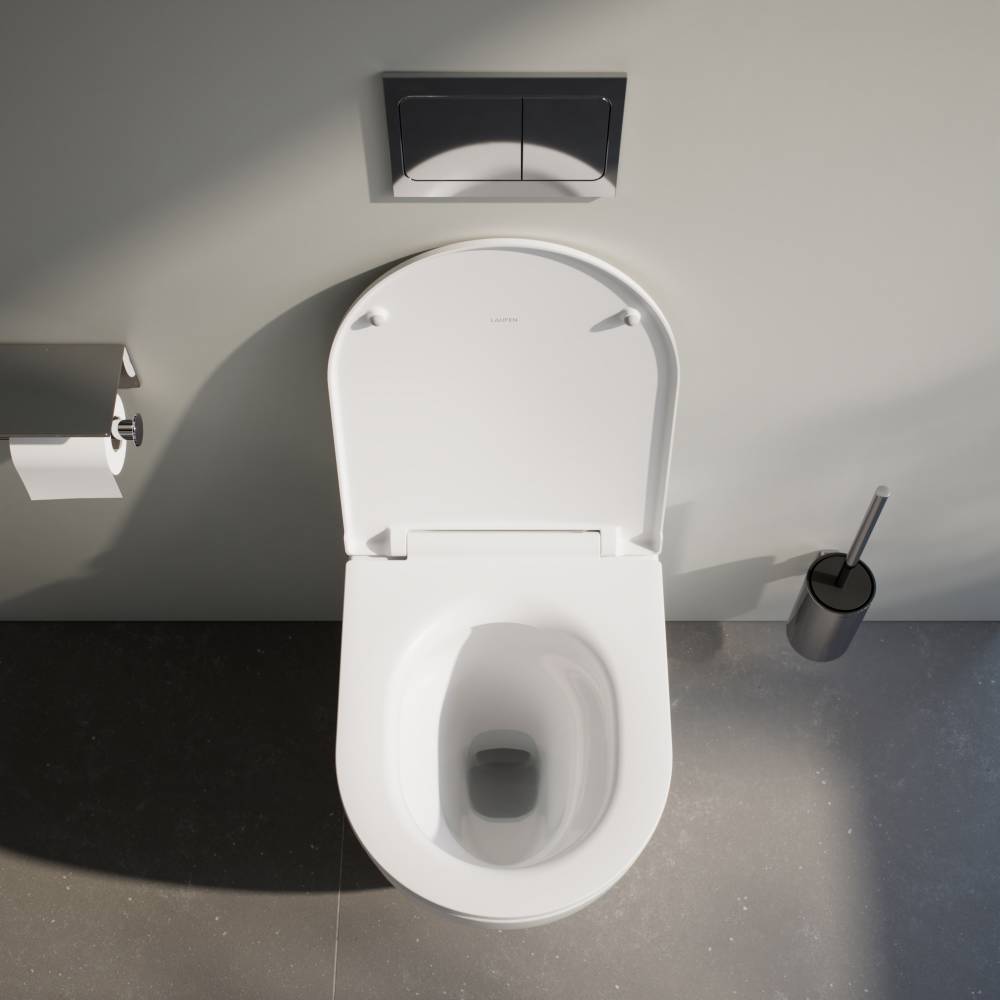

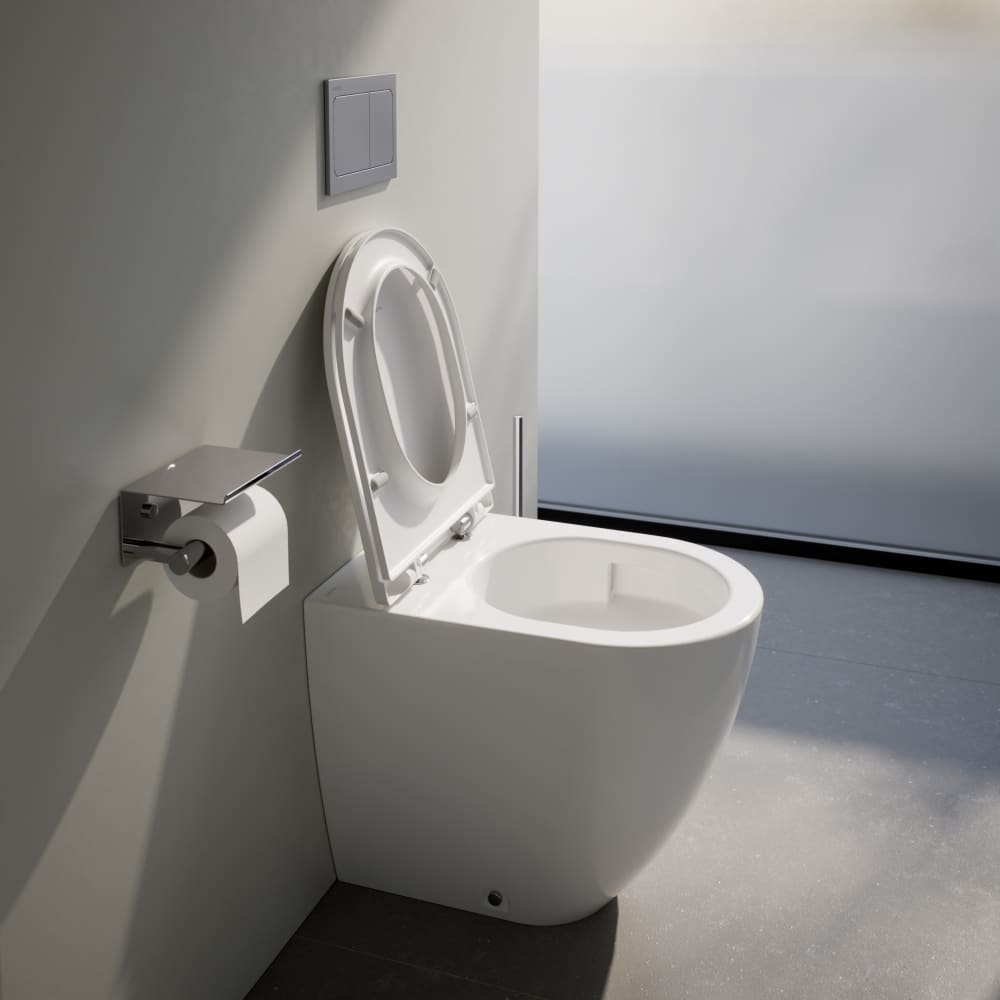

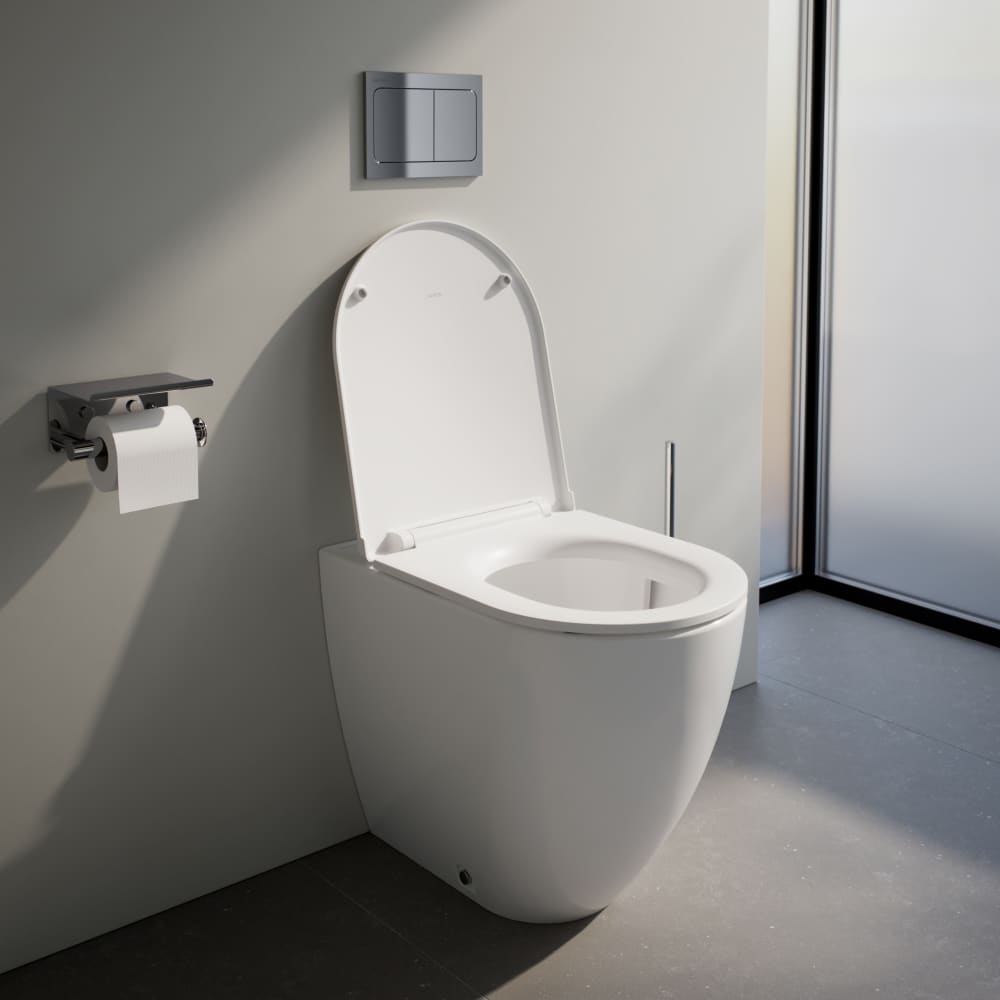

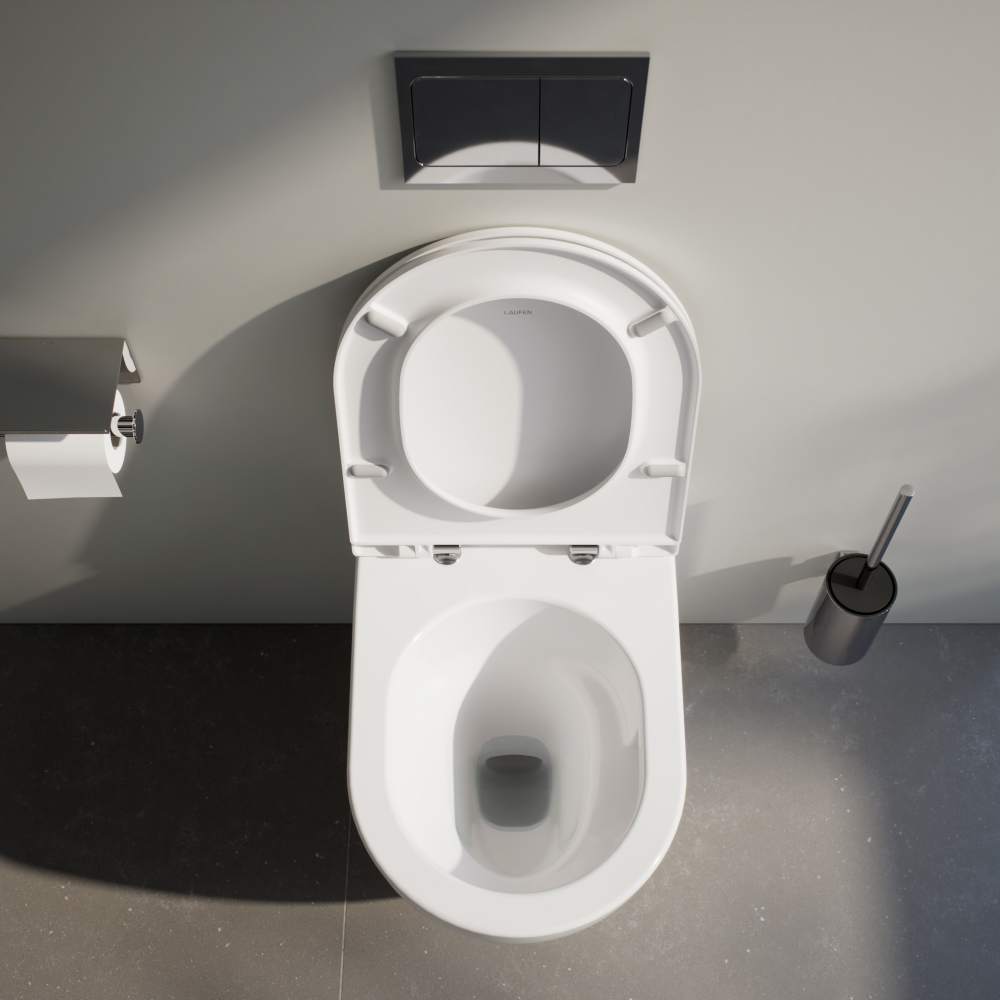

Floorstanding WC pan rimless washdown, silent flush Laufen-PRO X sanitary ceramic, for concealed cistern EN 997, EN 33, 6/3-l-flush) dimensions 360 x 540 x 430 mm outlet horizontal, vertical 50 - 270 mm back to wall, concealed fixation

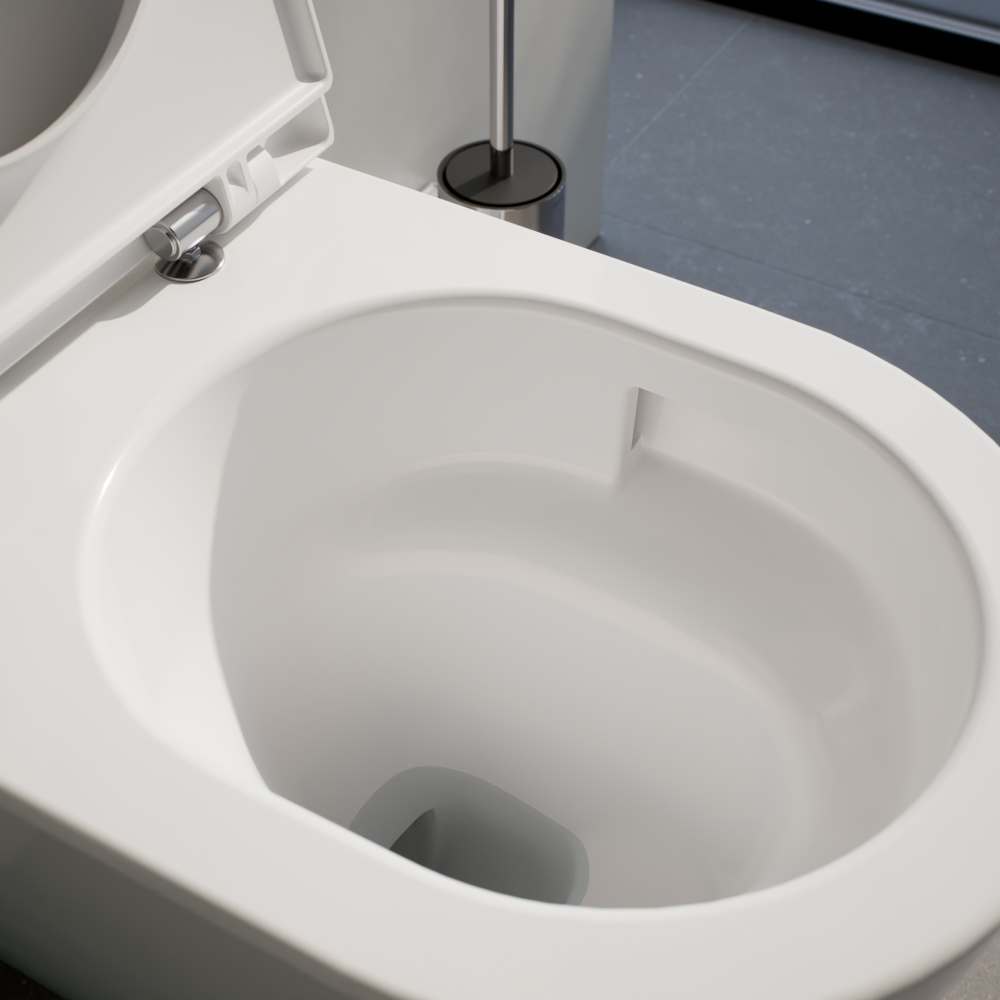

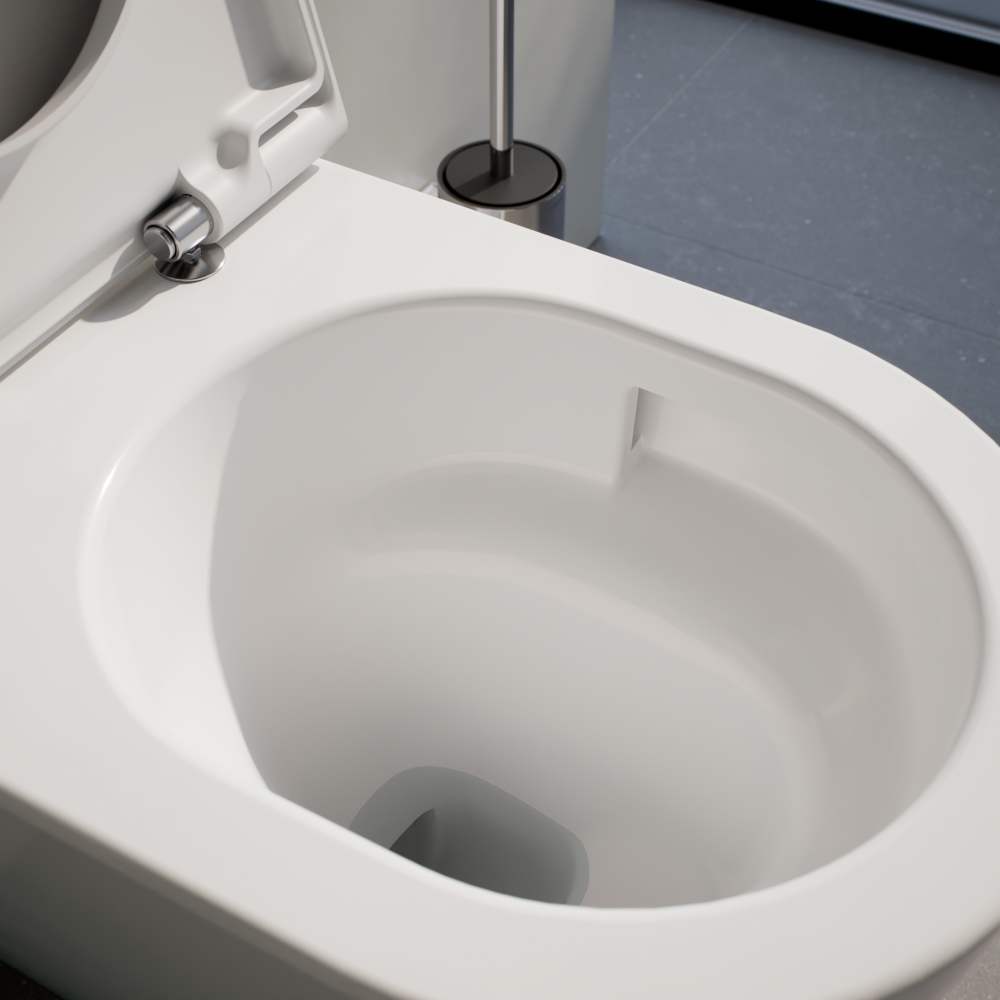

Special feature: rimless, silent flush (Vortex Flushing Technology), concealed surfaces directing water are fully glazed throughout, vacuum checked

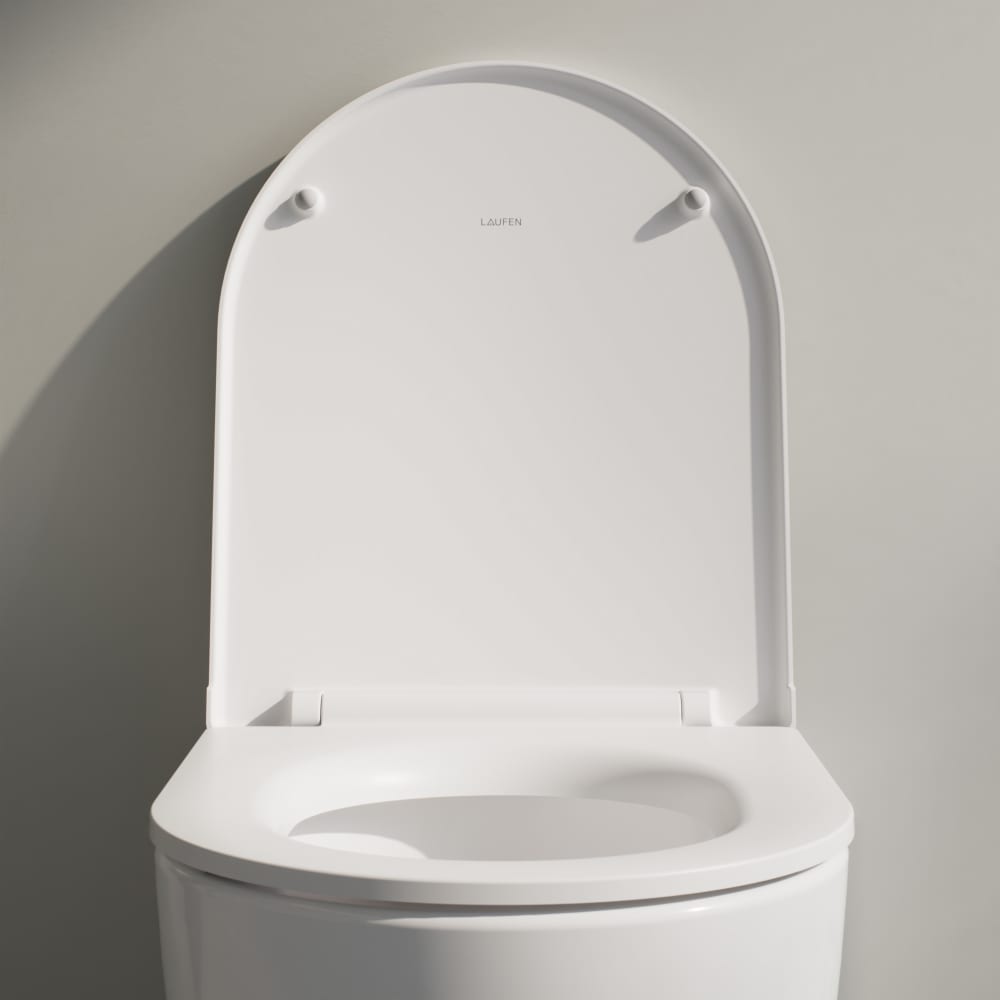

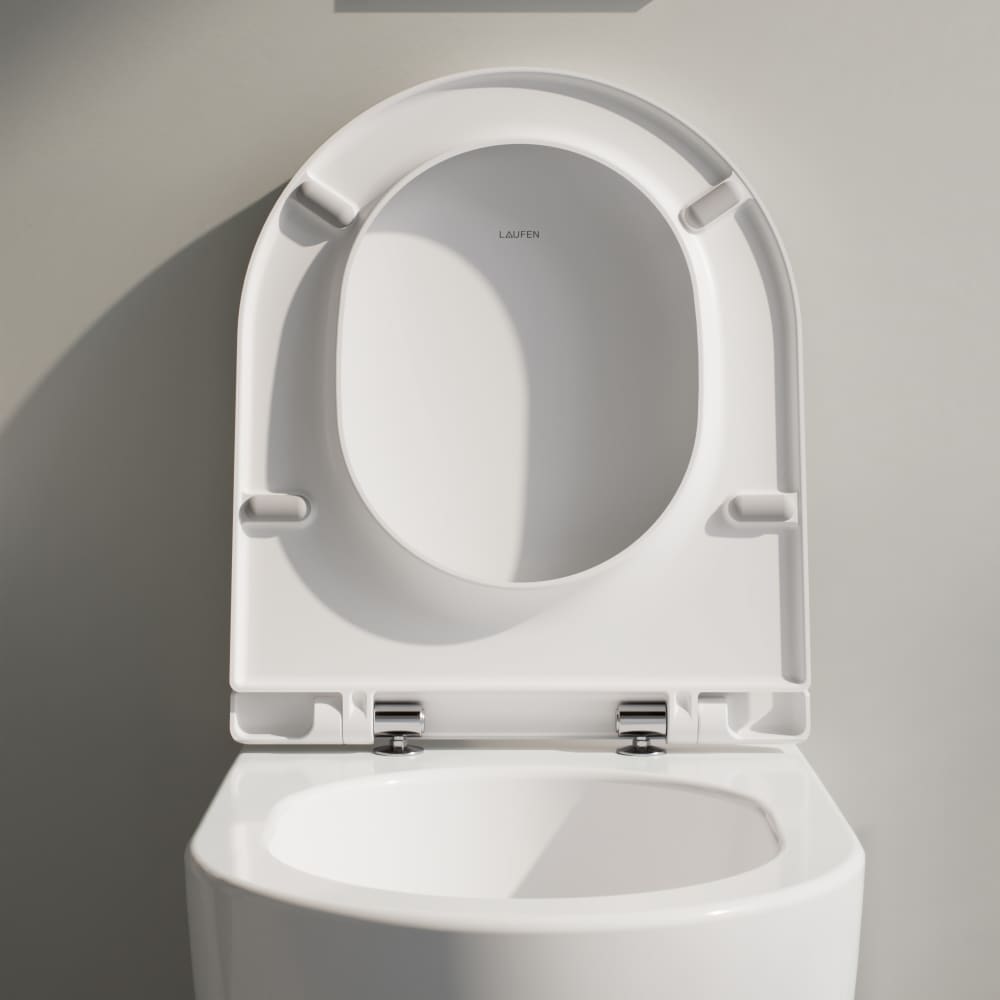

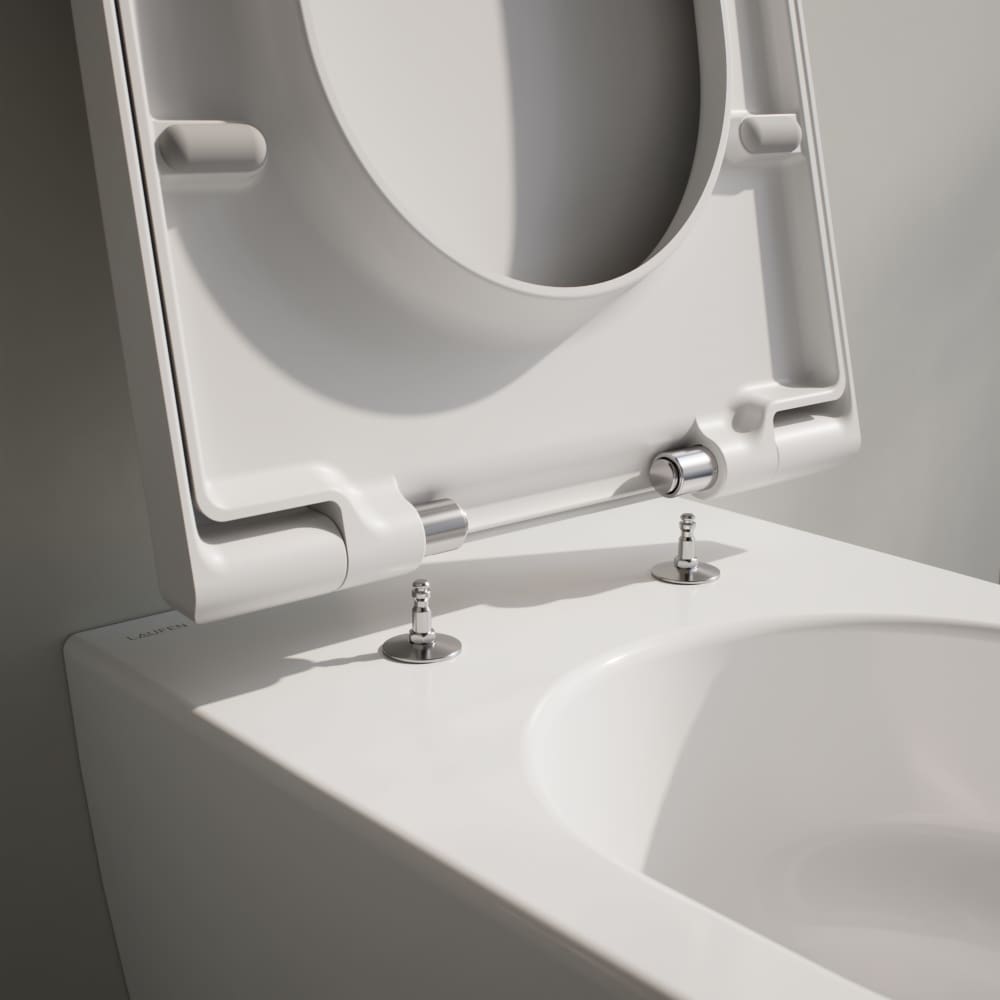

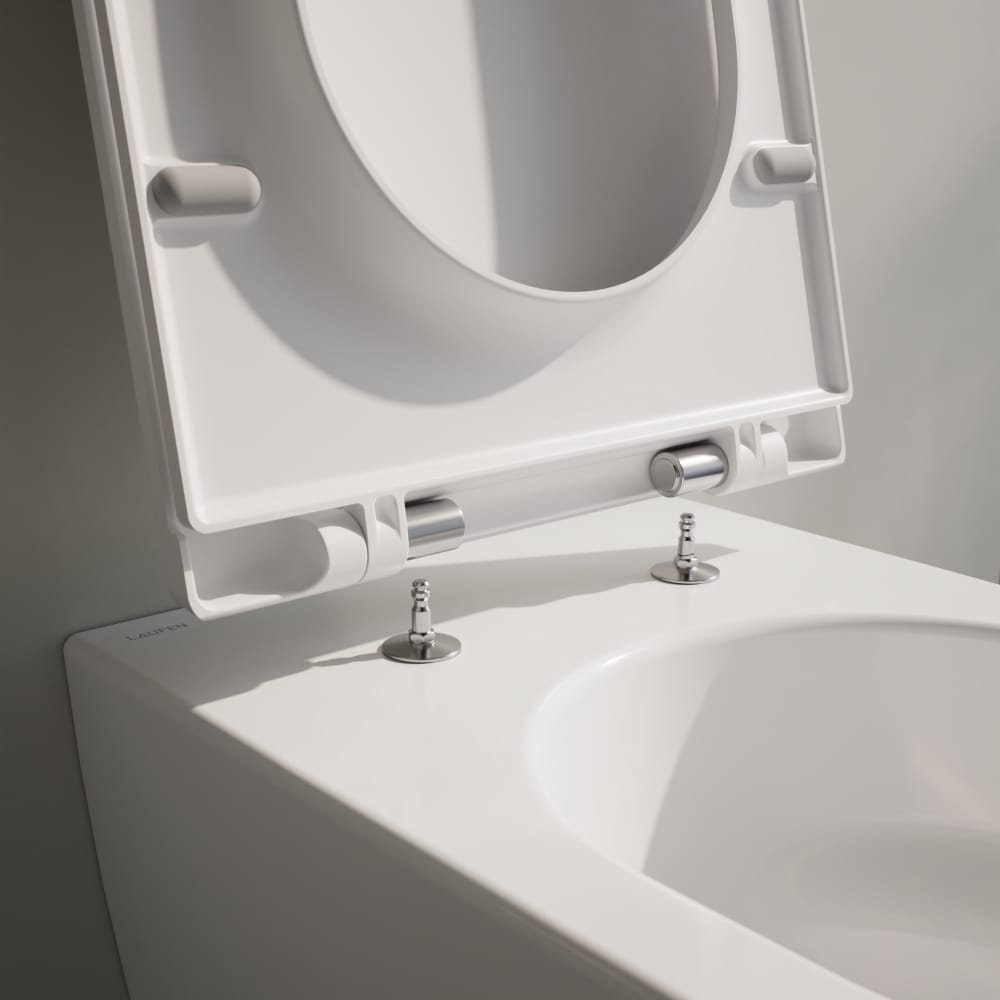

Further options / accessories: Surface refinement LCC (only white), floorstanding cistern two-part Universal H829660, H829661, H829663, H829664, WC seat H891864, WC seat and cover H891862, WC seat and cover with automatic lowering H891863, H898966
Order no. H823861
Mounting accesories included
Fixing set, order no. H891757
Mounting instruction, order no. H897203
Water inlet connector, order no. VS04093C00S099
Outlet adpater DN
Mounting accesories excluded
For horizontal outlet use standard connection for outlet vertical 50-123 mm, order no. H890092, for outlet vertical 100/140 mm, order no. H899027, for outlet vertical 135-210 mm, order no. H899025 and for outlet vertical 170-270 mm (only 6 l), order no. H899025 + VS58.1
Flushing system:
Washdown
Installation type:
Floor-standing
Net weight (kg):
32
Option:
standard option
Outlet type:
Horizontal, Vertical
Rim type:
Rimless Silent Flush
Shape:
Round
Download the CAD (2D, 3D) files of this product in different formats. | ⚠ Caution: CAD files should not be used for computer-controlled (CNC) cutting of countertops or similar and are for space-planning & room rendering purposes only. Upon request cut-out templates are available from LAUFEN. All drawings contain the necessary measurements (mm) which are subject to standard tolerances. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished product.
TECHNOLOGY
With Silent Flush, our advanced flushing technology, late-night bathroom visits won't disturb a sleeping partner or peacefully resting baby, maintaining tranquillity throughout your home. This innovative technology ensures ultra-quiet operation - a true benefit for families and neighbours. The vortex technology of Silent Flush quietly yet powerfully guides water through the toilet bowl, ensuring effective cleaning, reduced water consumption, and enhanced bathroom hygiene.
Compatible products
Similar products
Floorstanding WC, Silent flush/rimless, washdown, outlet horizontal or vertical
Article-No.: H823111000S001
540 x 360 x 430
Floorstanding WC, washdown, rimless, outlet horizontal or vertical
Article-No.: H8238510000001
530 x 370 x 430
Floorstanding WC, washdown, with flushing rim, outlet vertical
Article-No.: H8219570000001
545 x 360 x 400
Floorstanding WC 'rimless', washdown, without flushing rim, outlet horizontal/vertical
Article-No.: H8229560000001
530 x 360 x 430
Floorstanding WC, washdown, with flushing rim, outlet horizontal
Article-No.: H8219560000001
470 x 360 x 400
Floorstanding WC 'comfort', washdown, with flushing rim, outlet horizontal, sitting height 450 mm (without WC seat)
Article-No.: H8259550000001
470 x 360 x 450
Floorstanding WC 'comfort', washout, with flushing rim, outlet horizontal, sitting height 450 mm
Article-No.: H8259560000001
470 x 360 x 450
Floorstanding WC 'comfort', washout, with flushing rim, outlet vertical, sitting height 450 mm
Article-No.: H8259570000001
470 x 360 x 450
Combipack Floorstanding WC, rimless, horizontal outlet, WC bowl and cistern mounted and sold in one box, side water inlet
Article-No.: H8260860007601
650 x 360 x 780
PRO X

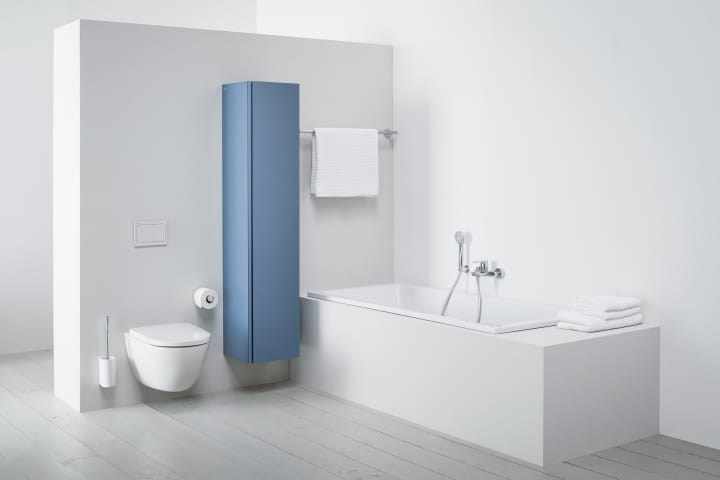

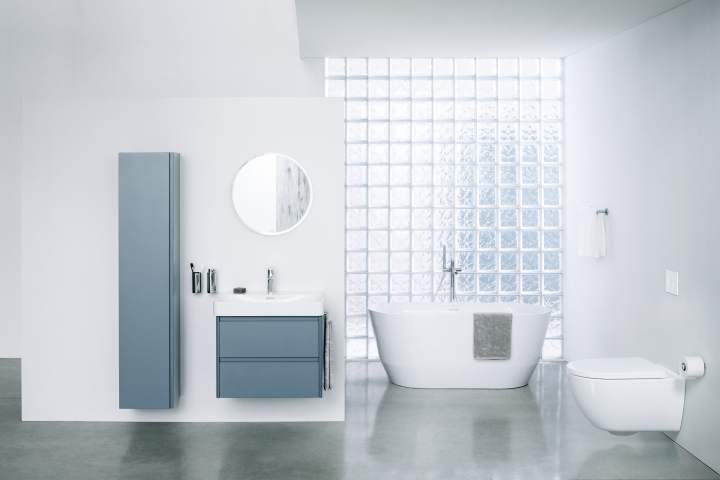

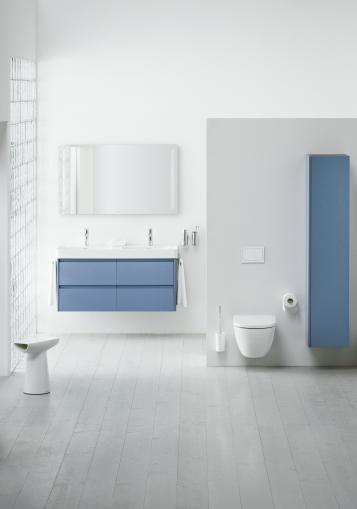

Marking the third generation of this highly successful collection, PRO X integrates timeless aesthetics with cutting-edge technology to deliver maximum investment security. Designed to meet the needs of private homes, hospitality projects, and public spaces, it offers a versatile and contemporary solution for modern bathrooms.
