Technical description

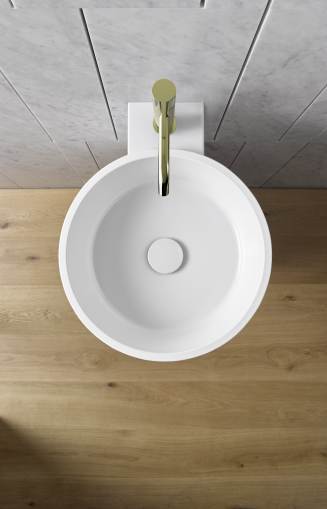

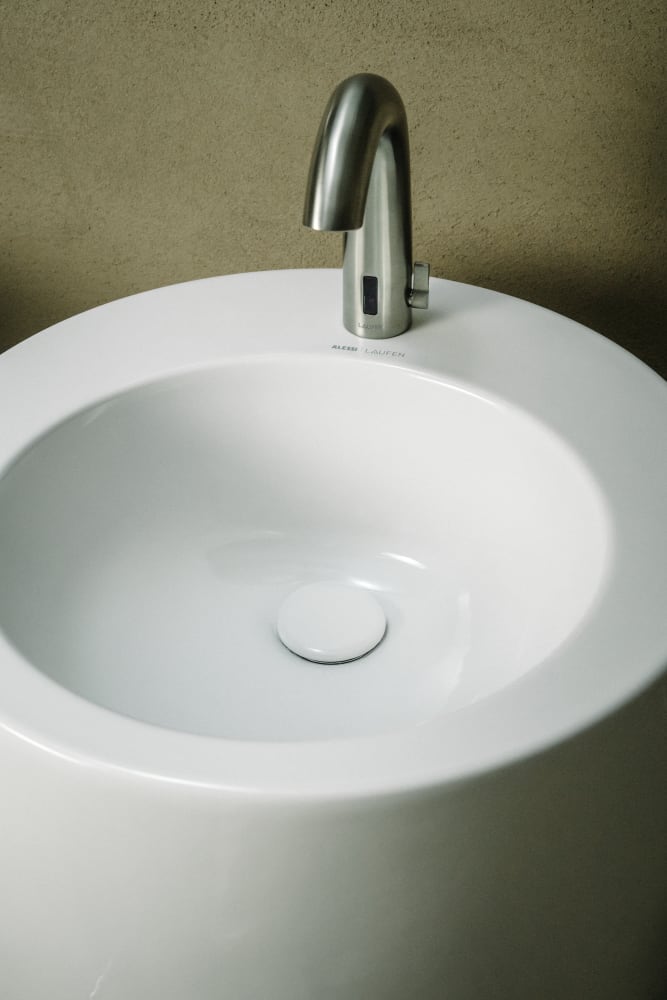

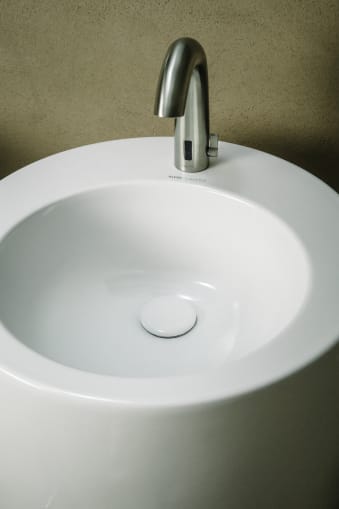

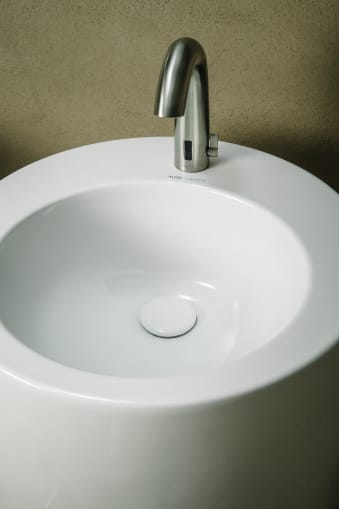

Freestanding washbasin Laufen-ILBAGNOALESSI, sanitary ceramic
EN 31
dimensions 530 x 530 mm, round
1 centre tap hole, concealed waste and overflow system, ceramic valve
cover plate, with integrated pedestal
Special feature: Surface refinement LCC (only white)
Further options / accessories: without tap hole and with valve without
overflow always open, bathtubs, furniture
Mounting accesories included
Charge 104 – waste and overflow system, order no. H893943, Ceramic valve cover plate, order no. H898182
Charge 109 – valve without overflow always open, with ceramic valve cover plate, order no. H898184
Device for fixing M10, order no. H892806Installation set: waterinlet hose with valve, siphon and extensible pipe D40, order no. H894064, Base mat, order no. H894065
Mounting accesories excluded
Installation set: waterinlet hose with valve, siphon and extensible pipe D40, order no. 894064
Base mat, order no. 894065
Bowl length (mm):
335
Bowl position:
Central
Bowl width (mm):
335
Fixing kit:
Included
Installation type:
Floor-standing
Internal Shape:
Round
Material:
Ceramics
Net weight (kg):
46.5
Option:
one tap hole, centre
Overflow type:
Clou
Plug and Waste:
Included
Shape:
Round
Taphole configuration:
1 taphole in the middle
Trap:
Included
Waste:
Included
Cradle to Cradle Certified®
Product Circularity Bronze (Version 4.1)
