Technical description

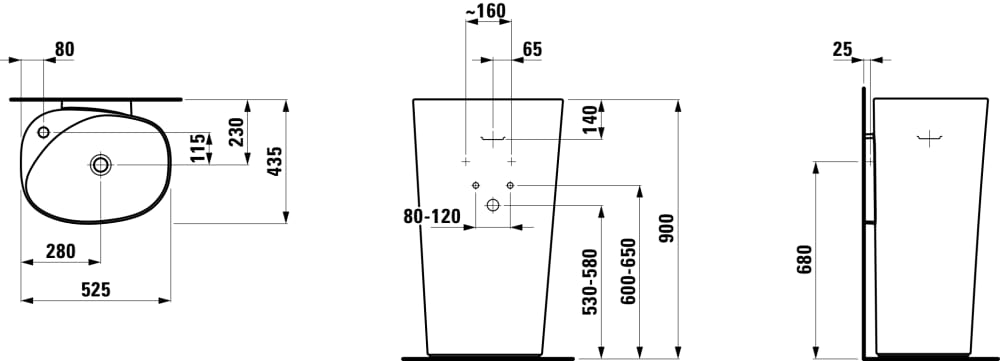

Floorstanding washbasin with wall connection, Laufen-PALOMBA COLLECTION, sanitary ceramic, EN 31, dimensions 525 x 435 mm, asymmetric, 1 tap hole, concealed waste and overflow system, chrome-plated cover, with integrated pedestal.
Special feature: Surface refinement LCC (only white).
Further options / accessories: without tap hole and with valve without overflow always open, bathtubs, furniture.
Mounting accesories included
Charge 104 – waste and overflow system, order no. H893943, Chrome-plated cover, order no. H891949
Charge 109 – valve without overflow always open, order no. H895439
Fixing set, order no. H891755
Mounting accesories excluded
Charge 104 – ceramic-plated vertical cover,
order no. H898190
Charge 109 – valve without overflow always open, with ceramic valve cover plate, order no. H898184
Flexible siphon LAUFEN, order no. H894975
Nickelled articulation, order no. WI891225903
Asymmetrical
Bowl position:
Right
Fixing kit:
Included
Installation type:
Wall-hung
Internal Shape:
Soft
Material:
Ceramics
Net weight (kg):
45
Option:
one tap hole, centre
Overflow type:
Standard
Shape:
Soft
Taphole configuration:
1 taphole in the middle
Cradle to Cradle Certified®
Product Circularity Bronze (Version 4.1)
Download the CAD (2D, 3D) files of this product in different formats. | ⚠ Caution: CAD files should not be used for computer-controlled (CNC) cutting of countertops or similar and are for space-planning & room rendering purposes only. Upon request cut-out templates are available from LAUFEN. All drawings contain the necessary measurements (mm) which are subject to standard tolerances. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished product.
