Technical description

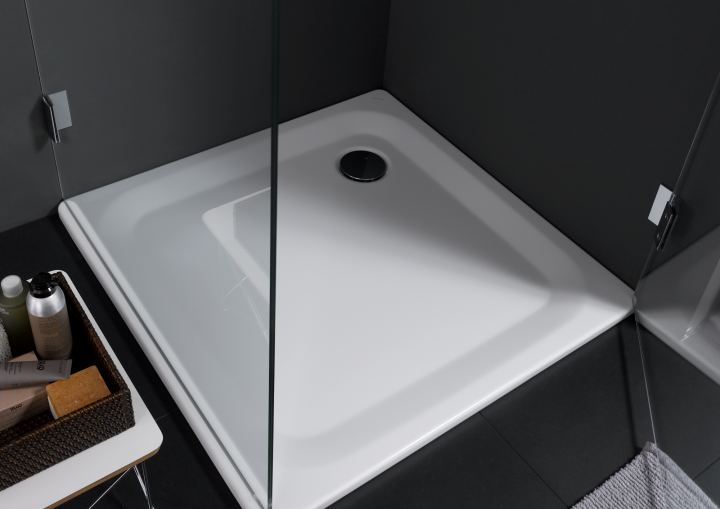

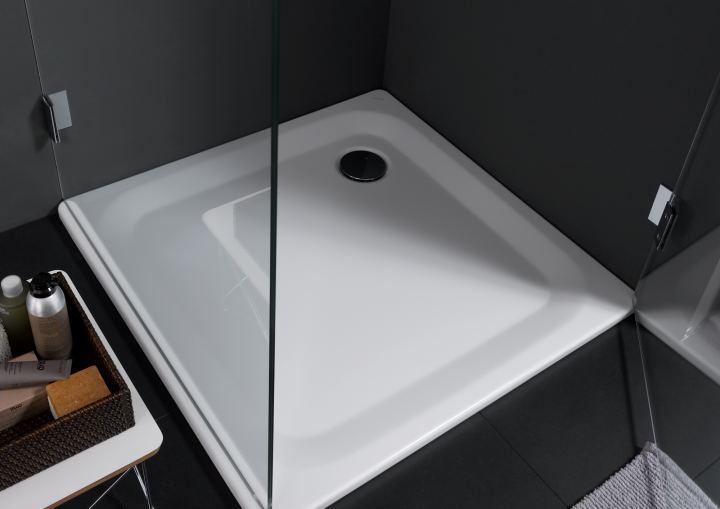

Rectangular shower tray made of 3,5 mm
enamelled steel
Charge 000 – without antinoise pads
Charge 040 – with antinoise pads
Charge 041 – with antinoise pads (to fulfil SIA 181
and DIN 4109 only in combination with antinoiseset order no. 29898.2)
Mounting accesories excluded
2x Feet for shower tray
87-115 mm, order no. 29555.5
Waste and overflow, chromed,
order no. 29511.9
Noise control band, order no. 29555.1
Floor even solution – Styrofoam carrier with
integrated, construction height 150 mm, possible to
level due to 3 styrofoam layers 10 (10, 20, 60 mm)
always important to consider the siphon height,
order no. 29598.2
Fixing foam for styrofoam carrier,
order no. 29598.8
Anti-slip type:
Added
Depth:
Superslim (less than 45mm)
Installation type:
Built-in, Corner
Material:
Steel
Net weight (kg):
26.5
Option:
with antinoise pads
Shape:
Rectangular
Steel thickness:
3.5 mm
Waste diameter (mm):
90
