Technical description

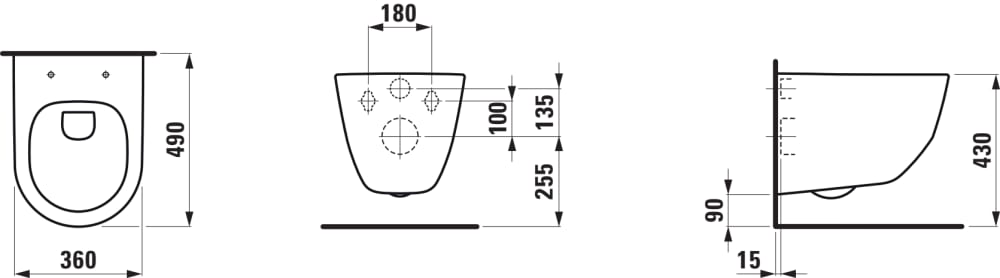

Compact wall-hung WC rimless, washdown LAUFEN PRO, sanitary ceramic for concealed cistern, EN 997, EN 33, 4,5/3-l-flush, dimensions 360 x 490 x 340 mm, concealed trap, concealed fixation.
Special feature: rimless, concealed surfaces directing water are fully glazed throughout, vacuum checked.
Further options / accessories: Surface refinement LCC (only white), WC seat and cover H893955, H896950, H898965, WC seat and cover with automatic lowering H891601, H893959, H896951, H898966
Mounting accesories included
Laufen EasyFit 2.0 system M12, order no. H893828
Mounting accesories excluded
Antinoise set, order no. H892695
Stone screw fastening kit M12
Average water consumption (L.):
3.38
Compact toilet
Fixing kit:
EasyFit 2.0 included
Flushing system:
Washdown
Installation type:
Wall-hung
Net weight (kg):
21
Option:
standard option
Outlet type:
Horizontal
Rim type:
Rimless
Shape:
Round
Style:
Neutral
Water Inlet System:
Back Inlet
Unified Water Label
3.38 l
Download the CAD (2D, 3D) files of this product in different formats. | ⚠ Caution: CAD files should not be used for computer-controlled (CNC) cutting of countertops or similar and are for space-planning & room rendering purposes only. Upon request cut-out templates are available from LAUFEN. All drawings contain the necessary measurements (mm) which are subject to standard tolerances. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished product.
TECHNOLOGY
Most of the bowls of the new LAUFEN WCs are rimless. There’s no longer anywhere for dirt and deposits to hide; instead, thanks to an innovative and powerful flushing system, everything’s flushed cleanly away with both the 6/3-litre version and the 4.5/3 litre version. Both public toilets and private bathrooms can benefit from the easy cleaning and great hygiene of this system.
Compatible products
WC seat and cover 'universal', removable, with lowering system, for hollow space fixing
Article-No.: H8939590000001
450 x 375 x 50
WC seat and cover, removable, with lowering system, stainless steel hinges
Article-No.: H8969513000001
450 x 380 x 55
INEOLINK slim (90 mm) concealed cistern for wall-hung WC and shower WC
Article-No.: H9201100000001
500 x 93 x 1195
Similar products
Wall-hung WC Silent flush/'rimless', washdown, advanced, without flushing rim, EasyFit 3.0 fixation
Article-No.: H8211100000001
540 x 360 x 355
Wall-hung WC Silent Flush/'rimless', washdown, without flushing rim, compact, EasyFit 3.0 fixation
Article-No.: H8211130000001
360 x 490 x 355
Combipack wall-hung WC H821331, Silent flush/'rimless', washdown, without flushing rim, incl. seat and cover with lowering system
Article-No.: H8663310000001
545 x 370 x 340
Wall-hung WC Silent flush, washdown, without flushing rim
Article-No.: H8213310000001
545 x 370 x 350
PRO
LAUFEN PRO is an exceptionally comprehensive collection, offering washbasins, faucets, WCs, shower trays and bathtubs in a wide range of sizes. Rooted in modern industrial design, it unites form, function and affordability, making it a versatile solution for every scale of project, from compact apartments to large developments and public spaces, delivering lasting value for architects, designers and homeowners alike.
