Technical description
Countertop basin Laufen-PRO X, sanitary ceramic EN 31 dimensions 550 x 465 mm 1 centre tap hole
Special feature: overflow channel glazed
Further options / accessories: Surface refinement LCC (only white), without tap holes, 3 tap holes with overflow, without tap hole/overflow and open drain, 1 tap hole/without overflow and open drain, furniture
Order no. H810862
Mounting accesories excluded
Mounting set M10 x 140 mm, order no. H899882
Bowl position:
Central
Commodity Code/Import Code Number for Foreign Trad:
69101000
Fixing kit:
Not included
Glazed base
Installation type:
Vanity, Wall-hung
Internal Shape:
Rectangular
Material:
Ceramics
Net weight (kg):
14.5
Number of fixing points:
2
Option:
without tap hole
Overflow type:
Standard
Plug and Waste:
Not included
Shape:
Rectangular
Taphole configuration:
No tapholes
Waste:
Not included

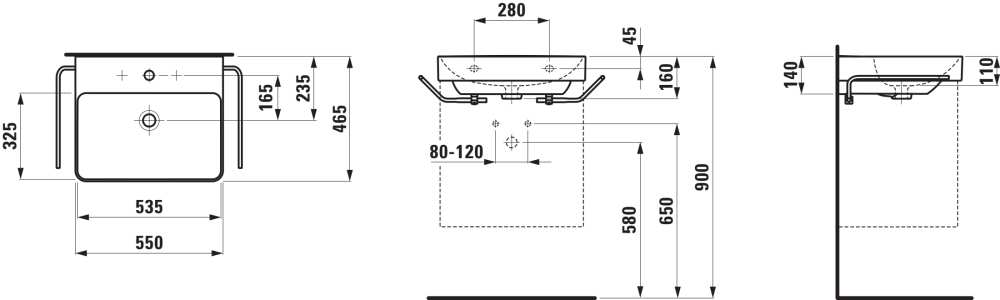

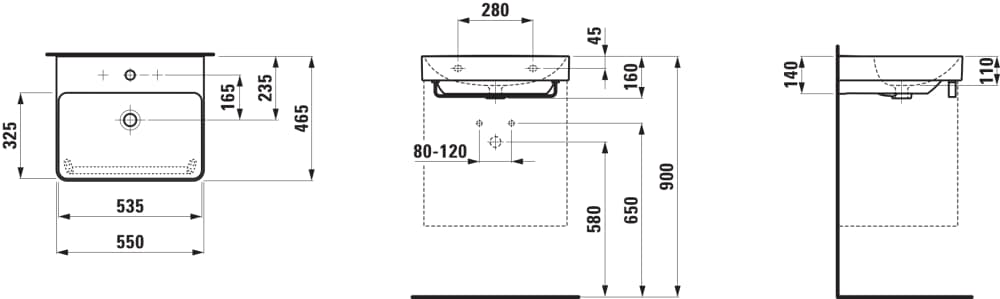

Download the CAD (2D, 3D) files of this product in different formats. | ⚠ Caution: CAD files should not be used for computer-controlled (CNC) cutting of countertops or similar and are for space-planning & room rendering purposes only. Upon request cut-out templates are available from LAUFEN. All drawings contain the necessary measurements (mm) which are subject to standard tolerances. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished product.
