Technical description
Article-No. Alape: 3509000240
Back glazed
Bowl length (mm):
400
Bowl position:
Central
Bowl width (mm):
400
Fixing kit:
Included
Glazed base
Installation type:
Bowl / On countertop
Internal Shape:
Round
Material:
Vitreon Steel
Net weight (kg):
5.5
Option:
without tap hole, without overflow
Overflow type:
Standard
Plug and Waste:
Included
Shape:
Round
Taphole configuration:
No tapholes
Trap:
Not included
Waste:
Included
Weight (Kg):
5.1
Without overflow

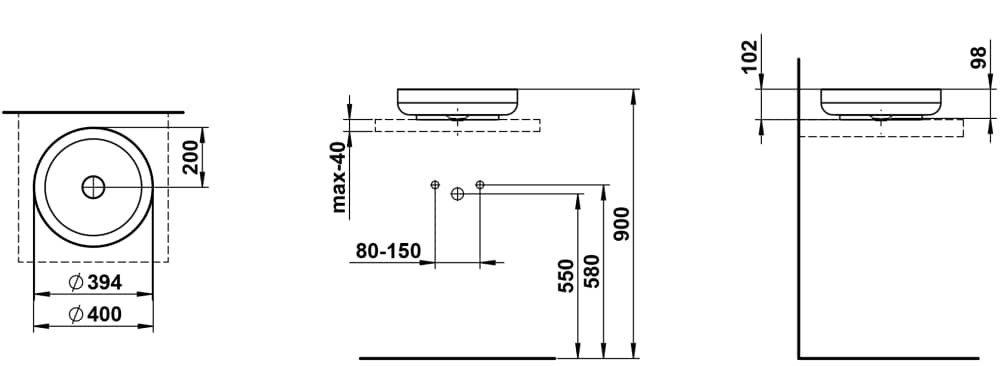

Download the CAD (2D, 3D) files of this product in different formats. | ⚠ Caution: CAD files should not be used for computer-controlled (CNC) cutting of countertops or similar and are for space-planning & room rendering purposes only. Upon request cut-out templates are available from LAUFEN. All drawings contain the necessary measurements (mm) which are subject to standard tolerances. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished product.
MATERIAL
A new material conversation begins with the launch of Vitreon Steel, allowing technology, functionality and aesthetic refinement to coexist in a coherent dialogue between washbasins, furniture, shower toilets, bathtubs, faucets and accessories. Smooth as glass and strong as steel, Vitreon Steel brings a new dimension to LAUFEN’s material world, introducing darker tones, metallic warmth and an architectural rhythm. A material evolution that unifies the entire bathroom experience.
