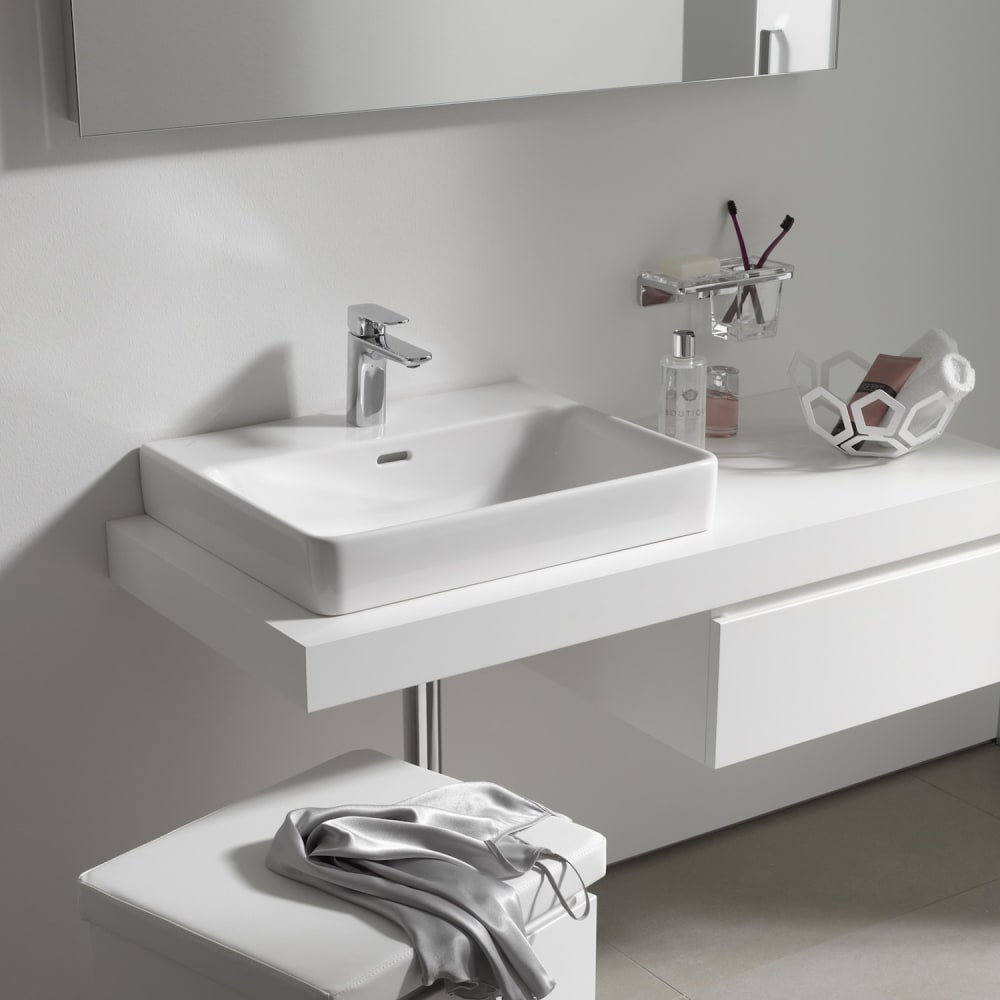

Wall-hung washbasins White PRO S H8169620001041 LAUFEN

Wall-hung washbasins White PRO S H8169620001041 LAUFEN

Wall-hung washbasins White PRO S H8169620001041 LAUFEN

Washbasin, undersurface ground

Article-No.: H8169620001041

000 - White

400 - White LCC (LAUFEN Clean Coat)

A00 - White LCC Active (LAUFEN Clean Coat Active)

Dimensions (length, width, height)

550 x 465 x 95 mm

Option

Download Data Sheet (pdf) View all dimensions

Technical specifications

Technical description

Washbasin undersurface ground LAUFEN PRO S, sanitary ceramic EN 31, dimensions 550 x 465 mm, angular
1 centre tap hole
Special feature: overflow channel glazed
Further options / accessories: Surface refinement LCC (only white),
3 tap holes, without tap holes, 1 tap hole without overflow, without tap holes and overflow, 3 tap holes distance 8 inches, without tap holes/ overflow and open drain, 1 tap hole/without overflow and open drain, 3 tap holes without overflow, bathtubs, furnitureOrder no. 81696.2

Mounting accesories included

Template, order no. 89996.1 Fixing set, order no. 89194.0

Mounting accesories excluded

Mounting set M10 x 140 mm, order no. 89988.2

Bowl length (mm):

510

Bowl position:

Central

Bowl width (mm):

303

Glazed base

Installation type:

Bowl / On countertop, Wall-hung

Internal Shape:

Square

Material:

Ceramics

Net weight (kg):

14.5

Number of fixing points:

2

Option:

one tap hole, centre

Overflow type:

Standard

Shape:

Rectangular

Taphole configuration:

1 taphole in the middle

Undersurface ground

Installation and maintenance

Technical Fact Sheet (35.1 KB)

Technical Fact Sheet

Cut template (10.54 MB)

Cut template (593.9 KB)

Mounting Instruction (1.01 MB)

Mounting Instruction

2D and 3D files

Download the CAD (2D, 3D) files of this product in different formats. | ⚠ Caution: CAD files should not be used for computer-controlled (CNC) cutting of countertops or similar and are for space-planning & room rendering purposes only. Upon request cut-out templates are available from LAUFEN. All drawings contain the necessary measurements (mm) which are subject to standard tolerances. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished product.

2D

3D

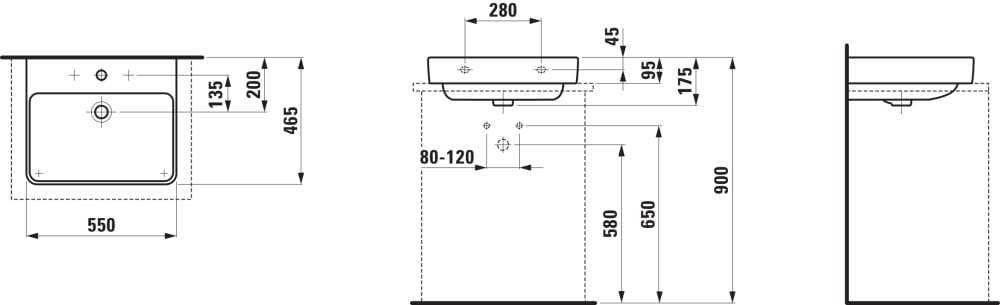

Technical drawings

Technical drawings (440.1 KB)

Technical drawings
