Washbasin, undersurface ground

Article-No.: H8174340001041

000 - White

Dimensions (length, width, height)

600 x 460 x 155 mm

Option

Download Data Sheet (pdf) View all dimensions

Technical specifications

Technical description

Washbasin undersurface ground LAUFEN LIVING CITY, sanitary ceramic, EN 31, dimensions 600 x 460 mm, angular, 1 centre tap hole, Special feature: overflow channel glazed, Further options / accessories: Surface refinement LCC (only white), 3 tap holes, without tap holes, 1 tap hole without overflow, without tap, holes and overflow, 3 tap holes distance 8 inches, furniture, Order no. 81743.4

Mounting accesories included

Template, order no. 89787.5 Fixing set, order no. 89194.0

Mounting accesories excluded

Mounting set M10 x 140 mm, order no. 89988.2

Bowl length (mm):

550

Bowl position:

Central

Bowl width (mm):

295

Installation type:

Bowl / On countertop, Wall-hung

Internal Shape:

Square

Material:

Ceramics

Net weight (kg):

19

Number of fixing points:

2

Option:

one tap hole, centre

Overflow type:

Standard

Shape:

Rectangular

Taphole configuration:

1 taphole in the middle

Undersurface ground

Installation and maintenance

Technical Fact Sheet (46.8 KB)

Technical Fact Sheet

Cut template (116.2 KB)

Cut template (10.5 MB)

Cut template (784.9 KB)

Mounting Instruction (109.6 KB)

Mounting Instruction

2D and 3D files

Download the CAD (2D, 3D) files of this product in different formats. | ⚠ Caution: CAD files should not be used for computer-controlled (CNC) cutting of countertops or similar and are for space-planning & room rendering purposes only. Upon request cut-out templates are available from LAUFEN. All drawings contain the necessary measurements (mm) which are subject to standard tolerances. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished product.

2D

3D

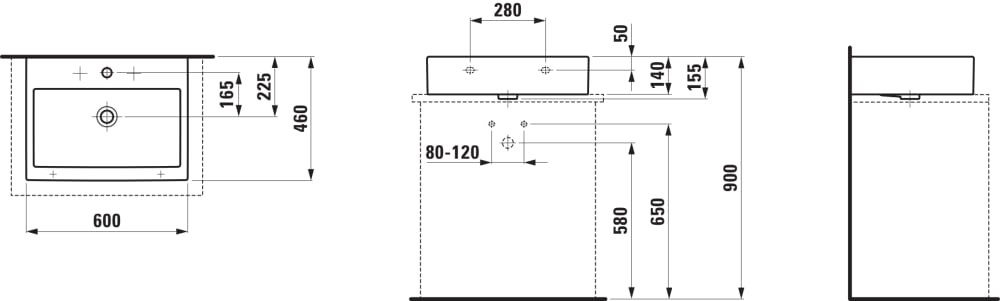

Technical drawings

Technical drawings (361.4 KB)

Technical drawings
